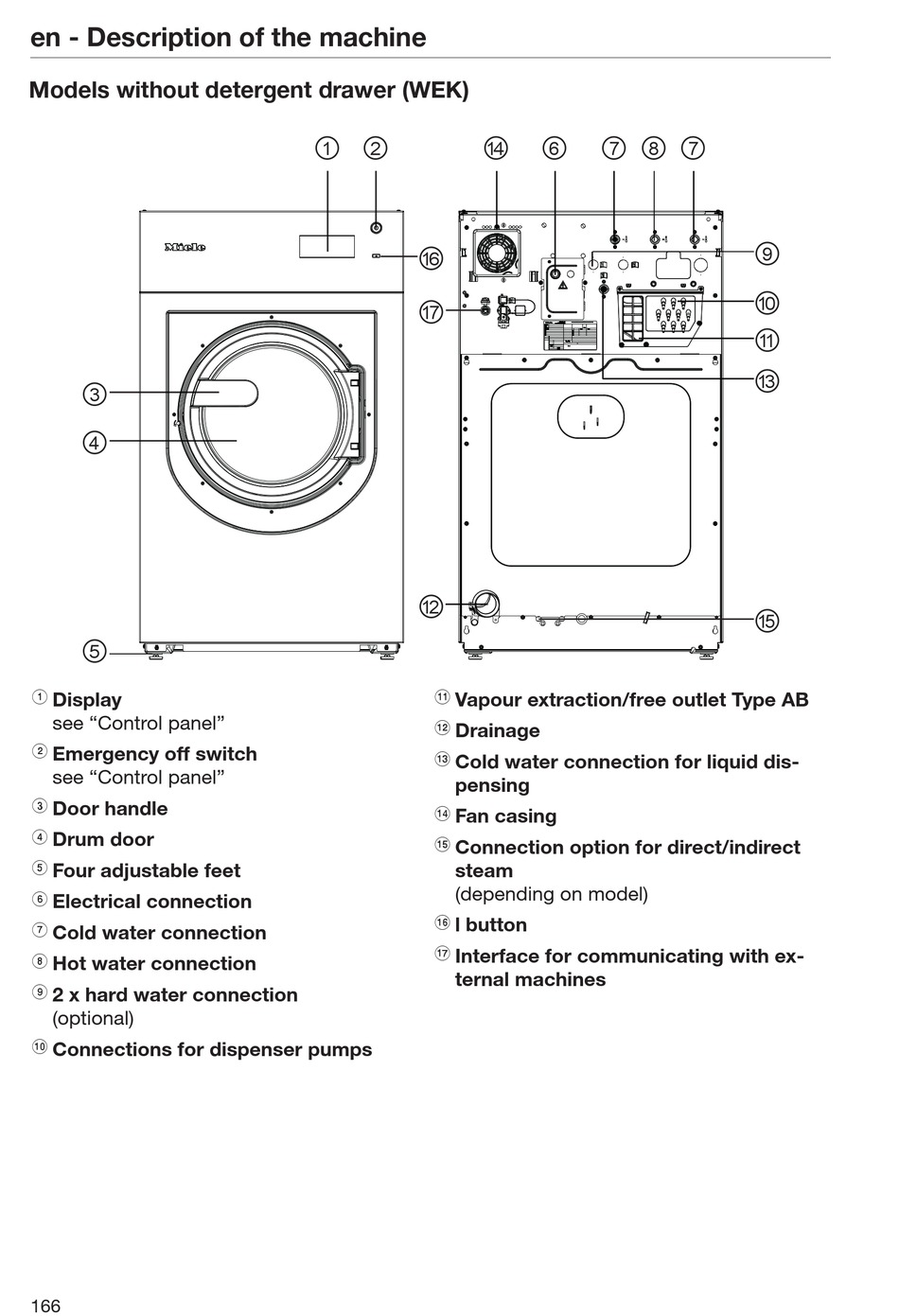

en - Description of the machine

Models without detergent drawer (WEK)

③
④
⑤
a
Display
see "Control panel"
b
Emergency off switch
see "Control panel"
c
Door handle
d
Drum door
e
Four adjustable feet
f
Electrical connection
g
Cold water connection
h
Hot water connection
i
2 x hard water connection
(optional)
j
Connections for dispenser pumps
166
① ② ⑭
⑯
⑰
⑫
k
Vapour extraction/free outlet Type AB
l
Drainage
m
Cold water connection for liquid dis-
pensing
n
Fan casing
o
Connection option for direct/indirect
steam
(depending on model)
p
l button
q
Interface for communicating with ex-
ternal machines
⑥ ⑦ ⑧ ⑦
⑨
⑩
⑪
⑬
⑮
