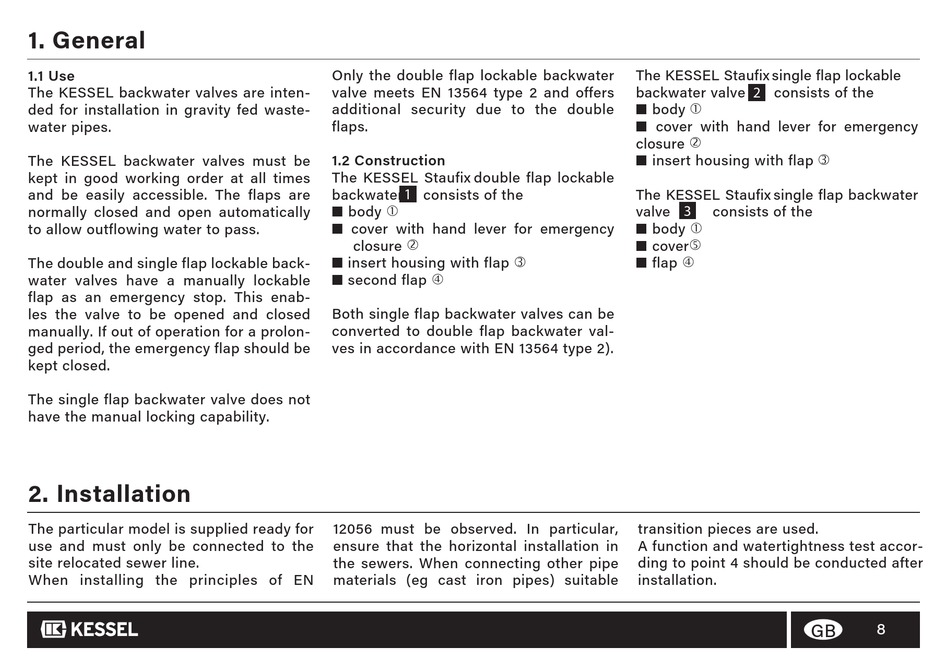

1. General
1.1 Use
The KESSEL backwater valves are inten-
ded for installation in gravity fed waste-
water pipes.
The KESSEL backwater valves must be
kept in good working order at all times
and be easily accessible. The flaps are
normally closed and open automatically
to allow outflowing water to pass.
The double and single flap lockable back-
water valves have a manually lockable
flap as an emergency stop. This enab-
les the valve to be opened and closed
manually. If out of operation for a prolon-
ged period, the emergency flap should be
kept closed.
The single flap backwater valve does not
have the manual locking capability.

2. Installation

The particular model is supplied ready for
use and must only be connected to the
site relocated sewer line.
When installing the principles of EN
Only the double flap lockable backwater
valve meets EN 13564 type 2 and offers
additional security due to the double
flaps.

1.2 Construction

The KESSEL Staufix double flap lockable
backwater 1 consists of the
■ body 
■ cover with hand lever for emergency
closure 
■ insert housing with flap 
■ second flap 
Both single flap backwater valves can be
converted to double flap backwater val-
ves in accordance with EN 13564 type 2).
12056 must be observed. In particular,
ensure that the horizontal installation in
the sewers. When connecting other pipe
materials (eg cast iron pipes) suitable
The KESSEL Staufix single flap lockable
backwater valve consists of the
2
■ body 
■ cover with hand lever for emergency
closure 
■ insert housing with flap 
The KESSEL Staufix single flap backwater
valve 3 consists of the
■ body 
■ cover 
■ flap 
transition pieces are used.
A function and watertightness test accor-
ding to point 4 should be conducted after
installation.
