Accessories / Supplementary kits

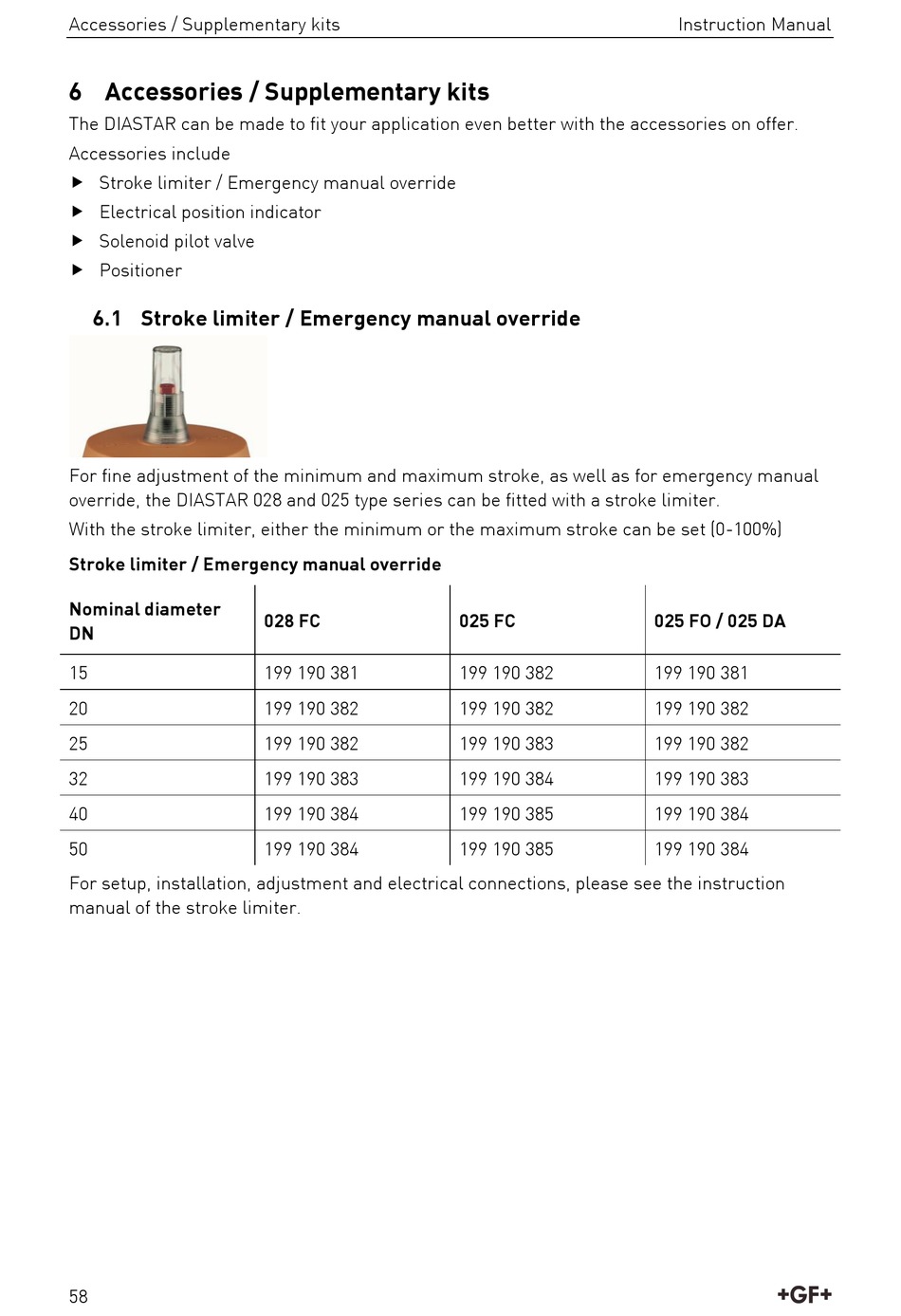

6 Accessories / Supplementary kits
The DIASTAR can be made to fit your application even better with the accessories on offer.
Accessories include
 Stroke limiter / Emergency manual override
 Electrical position indicator
 Solenoid pilot valve
 Positioner

6.1 Stroke limiter / Emergency manual override

For fine adjustment of the minimum and maximum stroke, as well as for emergency manual
override, the DIASTAR 028 and 025 type series can be fitted with a stroke limiter.
With the stroke limiter, either the minimum or the maximum stroke can be set (0-100%)
Stroke limiter / Emergency manual override
Nominal diameter
DN
15
20
25
32
40
50
For setup, installation, adjustment and electrical connections, please see the instruction
manual of the stroke limiter.
58
028 FC
199 190 381
199 190 382
199 190 382
199 190 383
199 190 384
199 190 384
025 FC
199 190 382
199 190 382
199 190 383
199 190 384
199 190 385
199 190 385
Instruction Manual
025 FO / 025 DA
199 190 381
199 190 382
199 190 382
199 190 383
199 190 384
199 190 384
