en Installation instructions

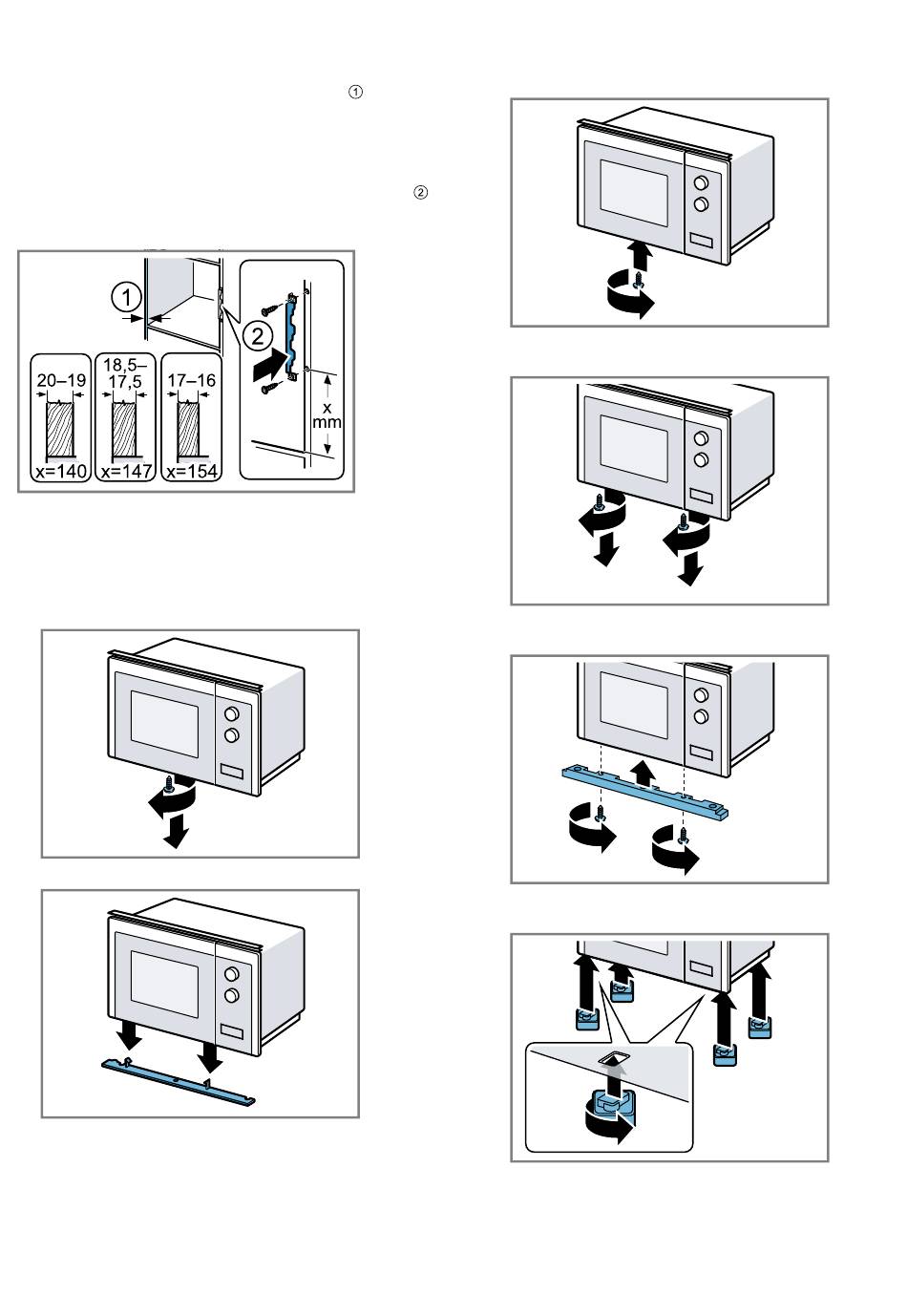

15.8 Preparing the tall unit
Determine the wall thickness of the unit.
1.
An x-value is assigned to the wall thickness.
Note: The x-value corresponds to the distance
2.
between the lower edge of the connection plate and
the bottom of the fitted unit.
Screw the connection plate tightly to the tall unit.
When doing so, observe the x-value that was de-
termined.
15.9 Preparing the appliance
If you install your appliance in a tall unit, you must pre-
pare the appliance.
Remove the middle screw on the base of the mi-
1.
crowave.
Remove the cover at the base of the microwave.
2.
42
Screw the middle screw tightly on the base of the
3.
microwave.
Loosen the two outer screws on the microwave
4.
base.
Secure the built-in frame on the microwave base
5.
with the two outer screws.
Secure the four supporting feet to the base of the
6.
microwave.
