ASROCK Z270 Taichi Schnellinstallationsanleitung Seite 27

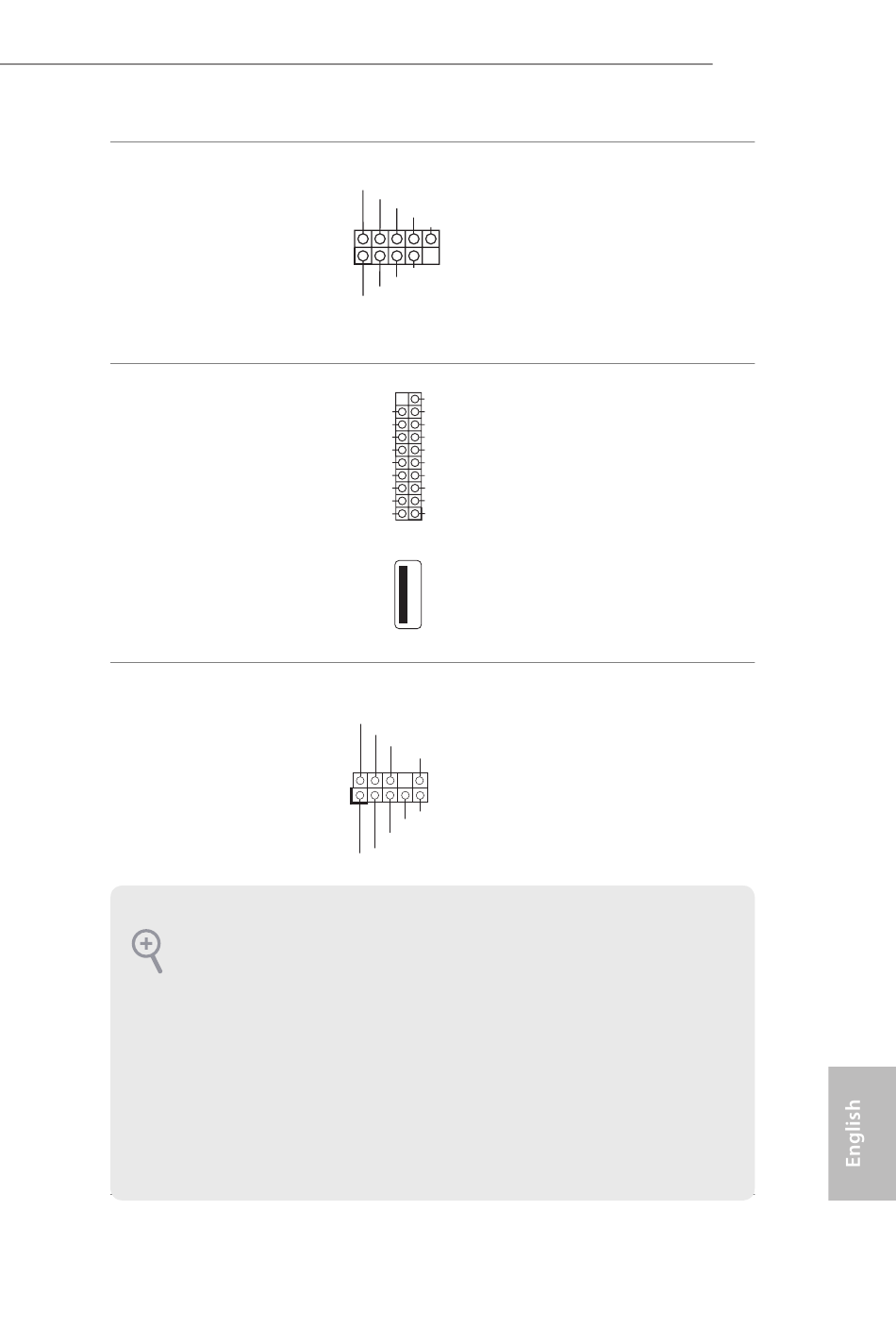

USB 2.0 Headers
(9-pin USB_11_12)
(see p.1, No. 23)
(9-pin USB_13_14)
(see p.1, No. 22)
(9-pin USB_15_16)
(see p.1, No. 21)
USB 3.0 Headers
(19-pin USB3_6_7)
(see p.1, No. 10)
(19-pin USB3_8_9)
(see p.1, No. 11)
(USB_9)
(see p.1, No. 10)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 27)
1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis
must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to
connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel
and adjust "Recording Volume".
USB_PWR
P-
P+
GND
DUMMY
1
GND
P+
P-
USB_PWR
Vbus Vbus
Vbus IntA_PB_SSRX-
IntA_PA_SSRX- IntA_PB_SSRX+
IntA_PA_SSRX+ GND
GND IntA_PB_SSTX-
IntA_PA_SSTX- IntA_PB_SSTX+
IntA_PA_SSTX+
GND
GND IntA_PB_D-
IntA_PA_D- IntA_PB_D+
IntA_PA_D+ Dummy
1
GND
PRESENCE#
MIC_RET
OUT_RET
1
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
There are three USB
2.0 headers on this
motherboard. Each USB
2.0 header can support
two ports.
Besides four USB 3.0 ports
on the I/O panel, there
are two headers and one
port on this motherboard.
Each USB 3.0 header can
support two ports.
This header is for
connecting audio devices
to the front audio panel.
Z270 Taichi
25
