LD Systems WS1000G2 Bedienungsanleitung Seite 10

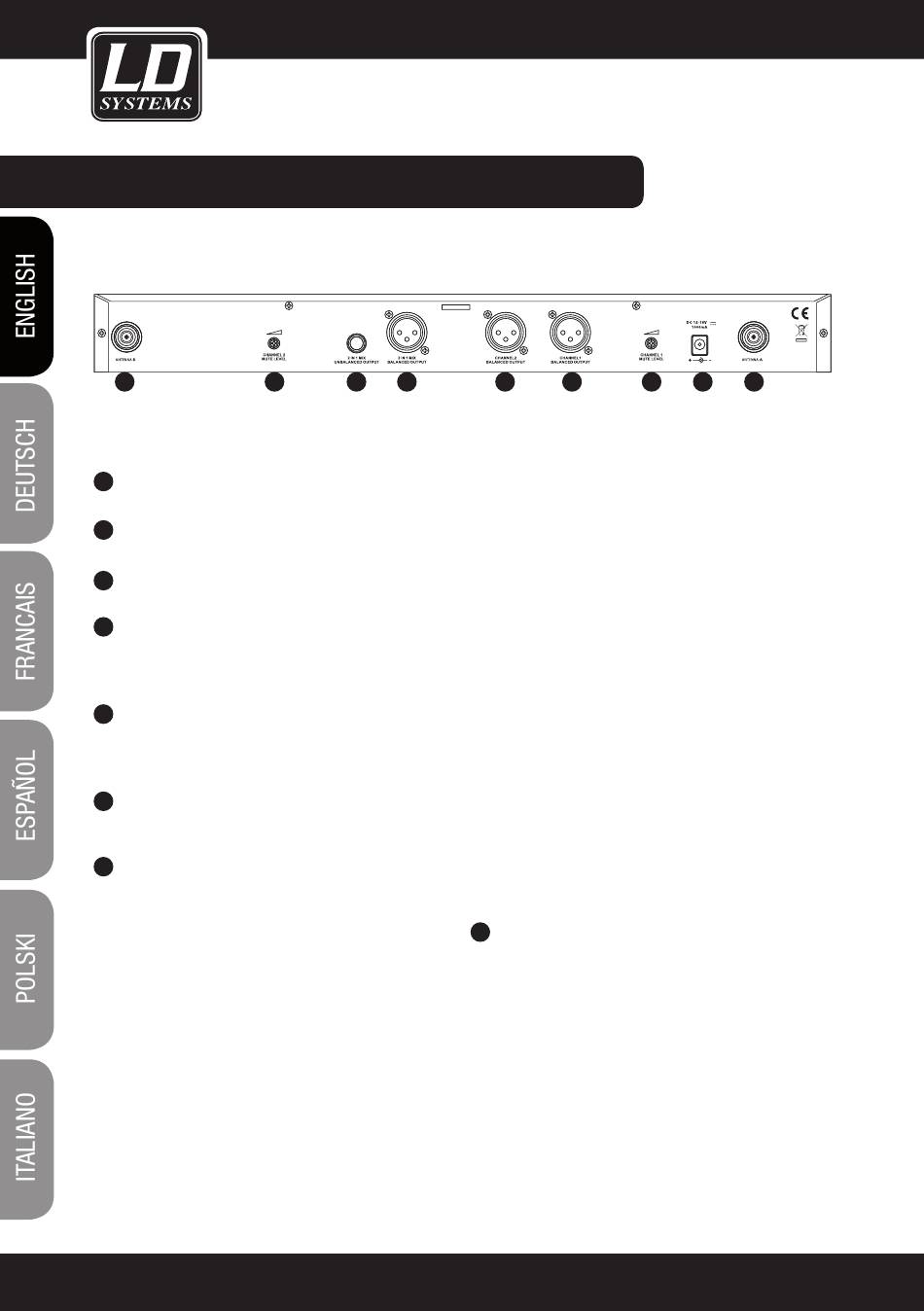

LDWS1000G2R2 FRONT- / BACK PANEL:
1
1 TNC SOCKETS ANTENNA A / B
2 BALANCED XLR OUTPUT CHANNEL 1
BALANCED XLR OUTPUT CHANNEL 2
3
4
BALANCED XLR MIX OUTPUT
This output provides a mix of both receivers audio signals. For individual volume control adjust the volume on
the front panel of each receiver separately.
5 UNBALANCED MIX 6.3 MM JACK OUTPUT
This output provides a mix of both receivers audio signals. For individual volume control adjust the volume on
the front panel of each receiver separately.
6 DC SOCKET
Only use the supplied power adapter
7 MUTE LEVEL CONTROL CHANNEL 1 / 2
Handle carefully! Use only suitable screwdriver!
CAUTION: Set the volume of the connected PA system to a minimum before adjusting the mute level!
If the RF signal level meter, located on the front panel
on, unwanted noise will occur. The more LEDs illuminate, the stronger the interference. The mute function
eliminates unpleasant noise caused by interference when the transmitter is switched off and also suppresses
sudden noise when there is no longer sufficient transmission power received by the receiver.
Interference can be suppressed with the mute level control by turning it clockwise to the right.
Adjust the mute level (with transmitter switched off) to the lowest possible setting that suppresses unwanted
noise.
Note: Higher settings can cause smaller distance of transmission path under unfavourable conditions.
If the interferences cannot be suppressed with the mute level control, a different transmission frequency
should be selected.
10
All manuals and user guides at all-guides.com
7 5 4 3 2 7
7
illuminates before the transmitter is switched
6 1
