Operating elements and product parts

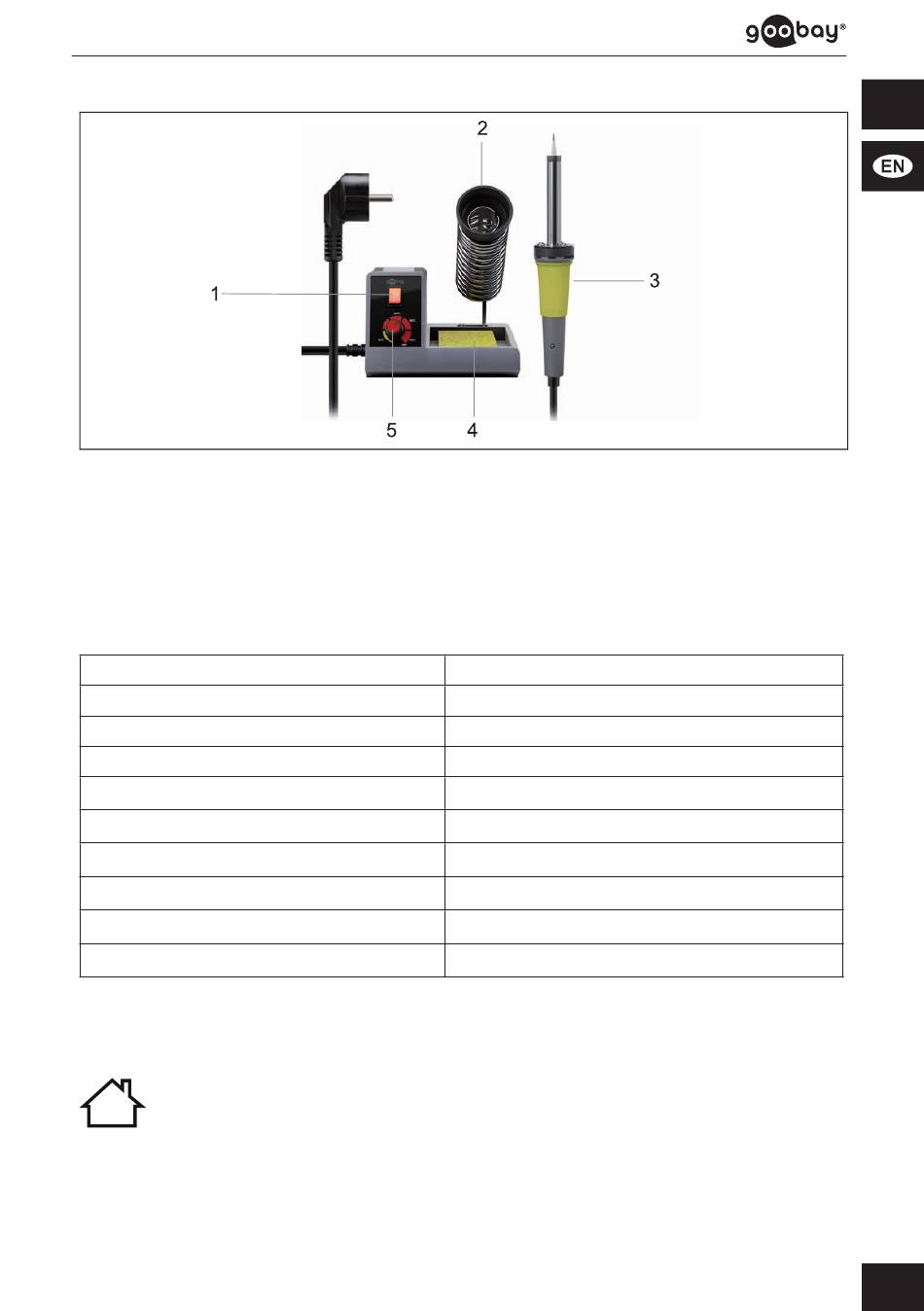

Fig. 2: Operating elements and product parts
1. Mains switch for switching the device on and off
2. Stand for the soldering iron
3. Soldering iron
4. sponge tray
5. Selector switch to set the desired soldering temperature
2.4

Specifications

Operating voltage
Power of the soldering iron
Temperature adjusting range
Temperature display
Display range
Ambient temperature
Relative air humidity
Air pressure
Dimensions (W x H x D)
Weight
Tab. 2:
Specifications
3

Intended Use

Your product is made for soft-soldering uses in housholds only. It means
you may only use it for soldering / unsoldering of electric and electronic
components in printed circuits and modules, for tin coating of conductor
paths and cable ends as well as making cable connections. Another use is not allo-
wed Never use this product for heating up liquids, such as water, bases, solvents, etc.
.
or plastic parts because of producing toxic smoke and there is a danger of burning!
We do not permit using the device in other ways like described in chapter "Description
and Function" and „Safety Instructions". Use the product only in dry interior rooms.
220 - 240 V AC ~ / 50Hz
40 - 48 W
150 - 450 °C
-
1 - 460 °C
+5 bis +40 °C
less than 85 % (non-wetting)
600 - 1000 hPa
115 x 120 x 140 mm (without soldering iron)
0.66 kg net, 0.87 kg gross weight
