1
5
4
4 m
50 cm
Device description
 
2
3

50 cm

– 18 –
Contents
Device description ..................................................................................18
Safety information ................................................................................. 20
Putting into operation ............................................................................. 24
Cleaning and disposal | Maintenance and inspection ..................................... 28

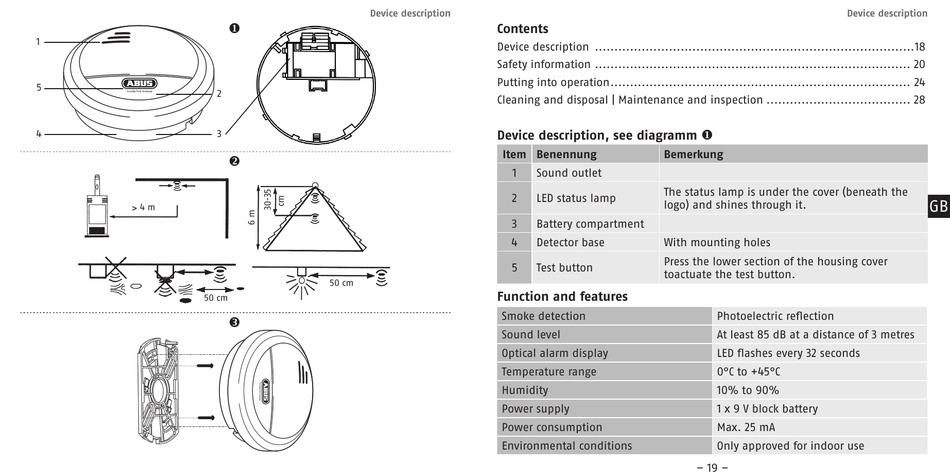

Device description, see diagramm 
Item Benennung Bemerkung
1 Sound outlet
The status lamp is under the cover (beneath the
2 LED status lamp
logo) and shines through it.
3 Battery compartment
4 Detector base With mounting holes
Press the lower section of the housing cover
5 Test button
toactuate the test button.
Function and features
Smoke detection
Sound level
Optical alarm display
Temperature range
Humidity
Power supply
Power consumption
Environmental conditions
Device description
Photoelectric reflection
At least 85 dB at a distance of 3 metres
LED flashes every 32 seconds
0°C to +45°C
10% to 90%
1 x 9 V block battery
Max. 25 mA
Only approved for indoor use
– 19 –
GB
