ASRock 6CH I/O Plus ASRock 6CH I/O Plus
ASRock 6CH I/O Plus ASRock 6CH I/O Plus ASRock 6CH I/O Plus

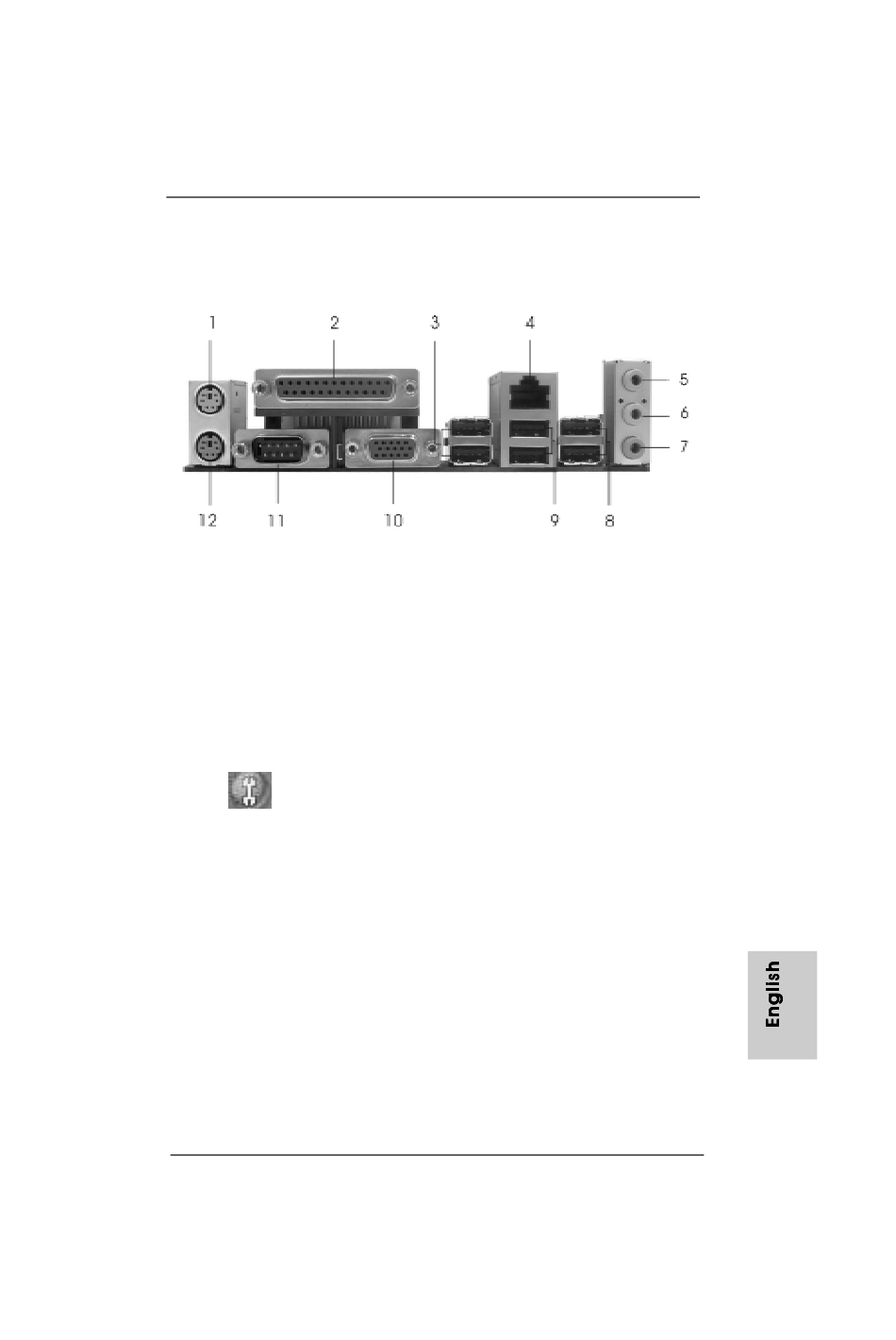

1 PS/2 Mouse Port (Green)
2 Parallel Port
3 USB 2.0 Ports (USB23)
4 RJ-45 Port
5 Line In (Light Blue)
6 Line Out (Lime)
* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
®
For Windows XP:
After restarting your computer, you will find "Mixer" tool on your system. Please select "Mixer
ToolBox" , click "Enable playback multi-streaming", and click "ok". Choose "2CH" or
"4CH" and then you are allowed to select "Realtek HDA Primary output" to use Rear Speaker
and Front Speaker, or select "Realtek HDA Audio 2nd output" to use front panel audio. Then
reboot your system.
For Windows ® Vista TM :
After restarting your computer, please double-click "Realtek HD Audio Manager" on the
system tray. Set "Speaker Configuration" to "Quadraphonic" or "Stereo". Click "Device
advanced settings", choose "Make front and rear output devices playbacks two different audio
streams simultaneously", and click "ok". Then reboot your system.
ASRock
TM TM TM TM TM
7 Microphone (Pink)
8 Shared USB 2.0 Ports (USB45)
9 USB 2.0 Ports (USB01)
10 VGA Port
11 COM Port
12 PS/2 Keyboard Port (Purple)
ALiveNF6P-VSTA Motherboard
