Technical Information

How to Connect the Controller Outputs

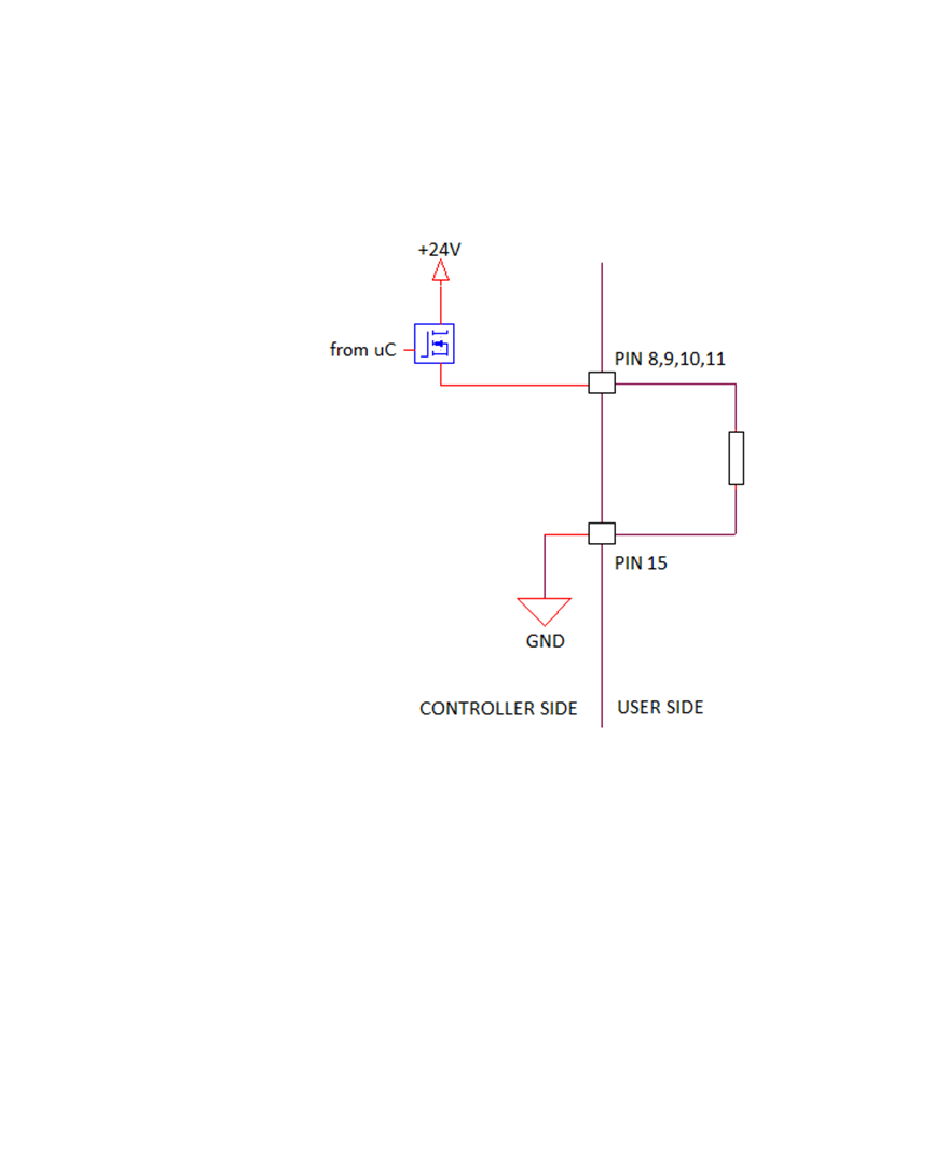

The following figure shows a typical logic output connection for pin 8, 9, 10 or 11.
Figure 87
Reference connection circuit for digital output circuit
Agilent TwisTorr 305-ICQ & 305-IC SF User Manual
251
