Technical Information
Controller Operations
Interconnections

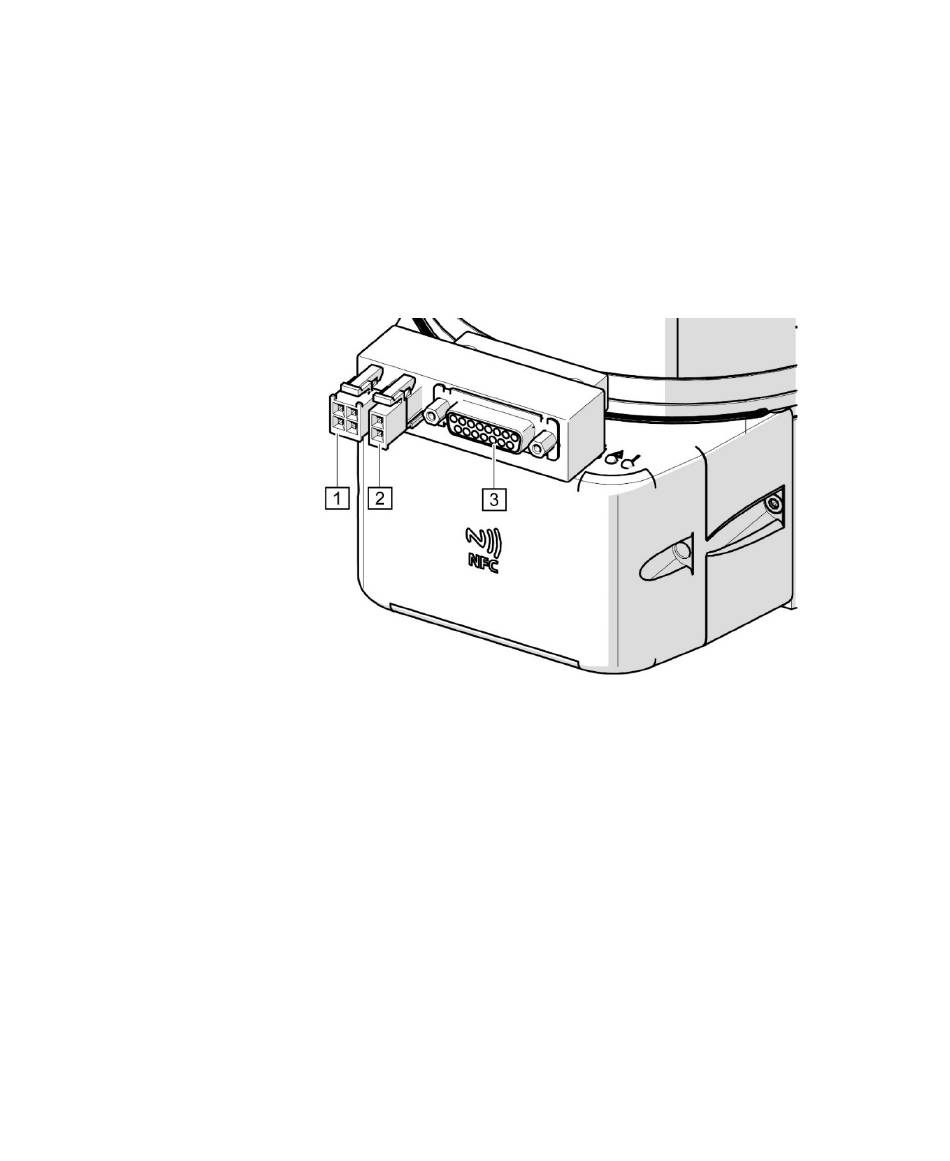

The following figure shows the TwisTorr 305-ICQ & 305-IC SF on board
interconnections.
Figure 79
In the picture it is shown the adapter P/N X3514-68001 connected to the pump.
1
Vent valve connector.
2
Cooling fan connector.
3
Connector DB15 for power supply and serial communication and remote inputs
and outputs control.
Agilent TwisTorr 305-ICQ & 305-IC SF User Manual
243
