AC Schnitzer 5111 282 540 Montageanleitung Seite 31

F it t in g In s t r u c t io n s
AC Schnitzer Front Splitter – M3 / M4
2. Fitting...

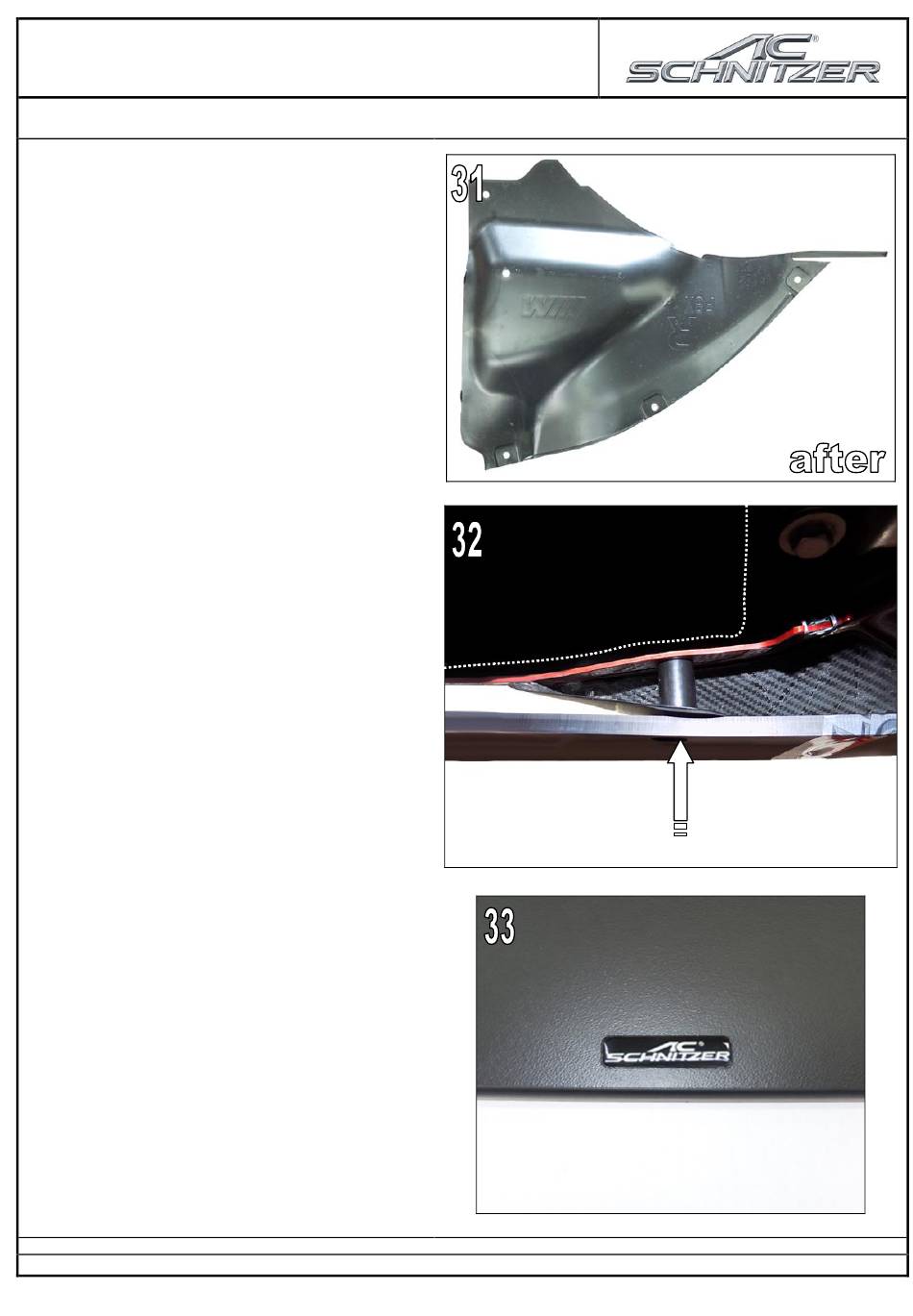

Fig. 32
Refit engine bay cover.
To do this, on the right and left:
Guide the cap-head bolt Ø 6x60mm supplied
through the long sleeve previously inserted, and
secure the engine bay cover.
Remove the hex screws Ø 5x35mm at these fixing
points (Fig. 16). Refit side air guides on right and left
and attach the hex screws at the fixing points (Fig.
16) again.
Remove adhesive tape.
Fig. 33
Affix the AC Schnitzer sticker supplied in the recess
provided at the AC Schnitzer front splitter.
Subject to errors, modifications and technical development !
AC Schnitzer - automobile Technik - Neuenhofstraße 160 - D - 52078 Aachen - Tel. 0241/5688 -130
Fitting Instructions No.: 5111 282 540-550 / Issue: 13.03.2017 / TSch / REV04
