Connect the control cables

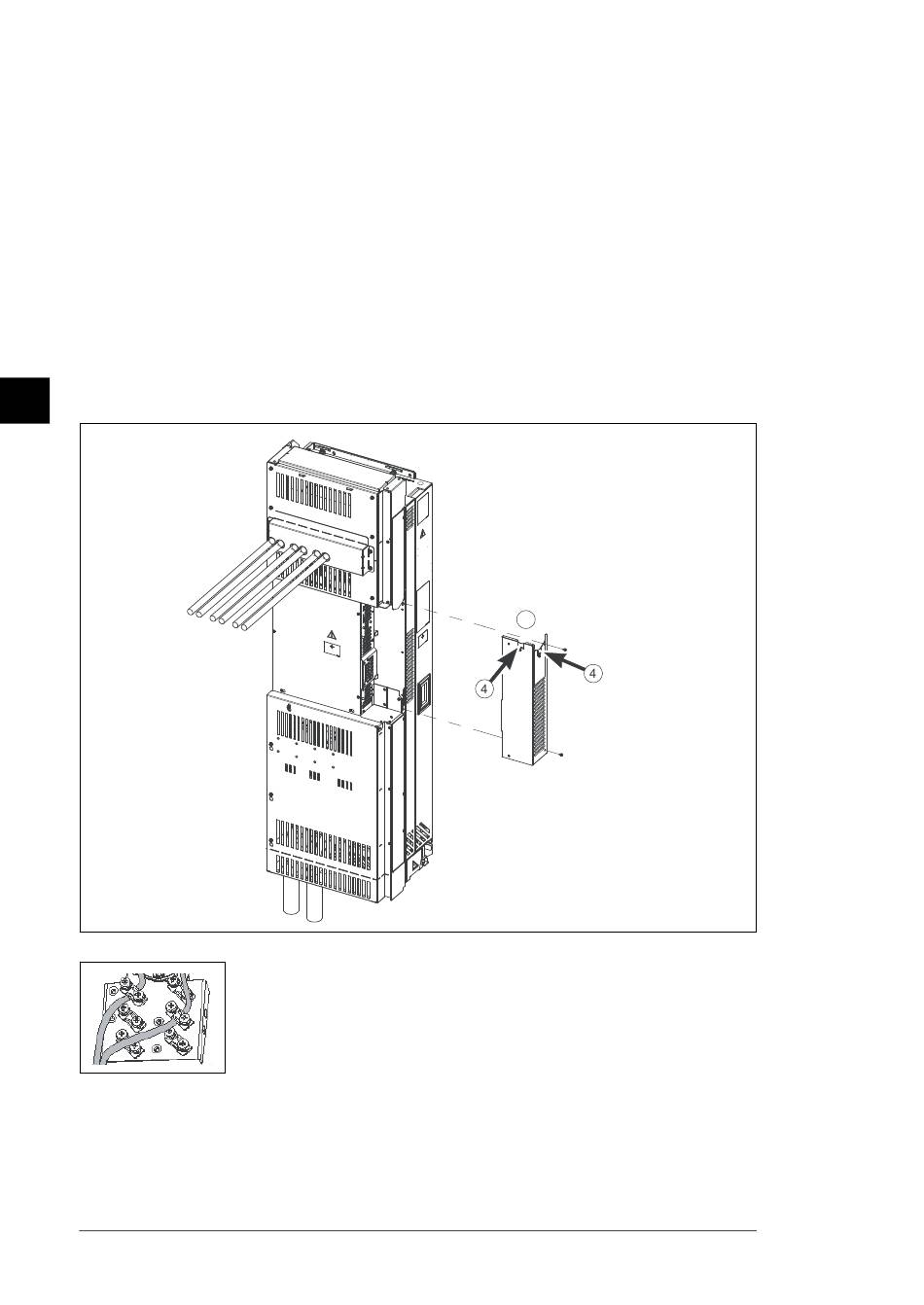

Connect the conductors of external control cables to the appropriate terminals of the
control unit. See section
1. Ground the outer control cable shields 360 degrees at the cabinet entry plate
(recommendation).
2. Remove the middle front cover of the drive module.
3. Attach the option modules if not attached already.
4. Remove the cover plate from the control cable entry plate and put the rubber grommet
in its place. Put the control cables through the grommet. IP20 shrouds (option +B051)
are included in the drawing below. The external control unit (option +P906) is not
integrated to the drive module, see chapter
EN
103).
DA
DE
ES
FI
FR
IT
NL
PL
PT
5. Ground the shields of the control cables at the clamp plate.
RU
SV
TR
6. Connect the conductors to the appropriate detachable terminals of the control unit.
Use shrink tubing or insulating tape to contain any stray strands. Tighten the screws to
secure the connection. Note: Keep any signal wire pairs twisted as close to the
ZH
terminals as possible. Twisting the wire with its return wire reduces disturbances
caused by inductive coupling.
7. Install the middle front cover back.
Default I/O diagram (Water default)
External control unit (option +P906)
(page 15).
2
Combi screw
M4×8 Torx T20
2 N·m
(page
