Installation instructions, for professionals only

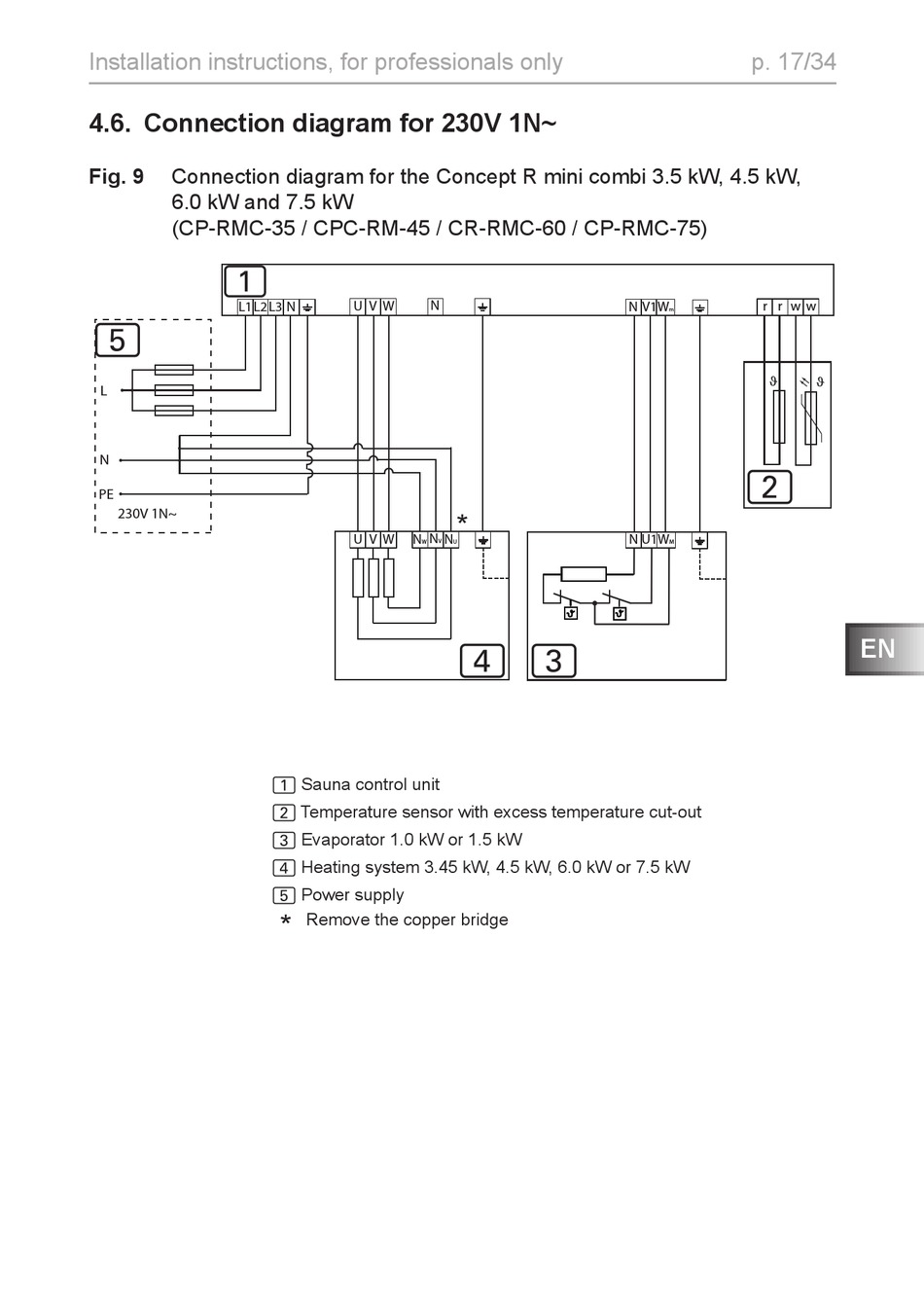

4.6. Connection diagram for 230V 1N~

Fig. 9
Connection diagram for the Concept R mini combi 3.5 kW, 4.5 kW,
6.0 kW and 7.5 kW
(CP-RMC-35 / CPC-RM-45 / CR-RMC-60 / CP-RMC-75)
1
L1 L2
5
L
N
PE
230V 1N~
N
L3 N U V W
N
U V W N
V
W
1 Sauna control unit
2 Temperature sensor with excess temperature cut-out
3 Evaporator 1.0 kW or 1.5 kW
4 Heating system 3.45 kW, 4.5 kW, 6.0 kW or 7.5 kW
5 Power supply
*
Remove the copper bridge
*
N
U
4 3
p. 17/34
N V1W r r w
m
ϑ
2
N U1W
M
w
ϑ
EN
