Mounting the sensor and assembling the Soliphant M FTM50. FTM51, FTM52
(as example
cover for F16)
only for
housing F16
housing F15/ F16 / F17
Slide the housing
2
over the sensor head.
sensor FTM50x, FTM51x, FTM52x
(as example sensor FTM50x)
0
0
2
2
1
1
2
2
1
Lightly grease the O-ring and slide it over the sensor head
(Lubrication grease "Syntheso Glep 1", manufacturer: Klüber Lubrication).
2

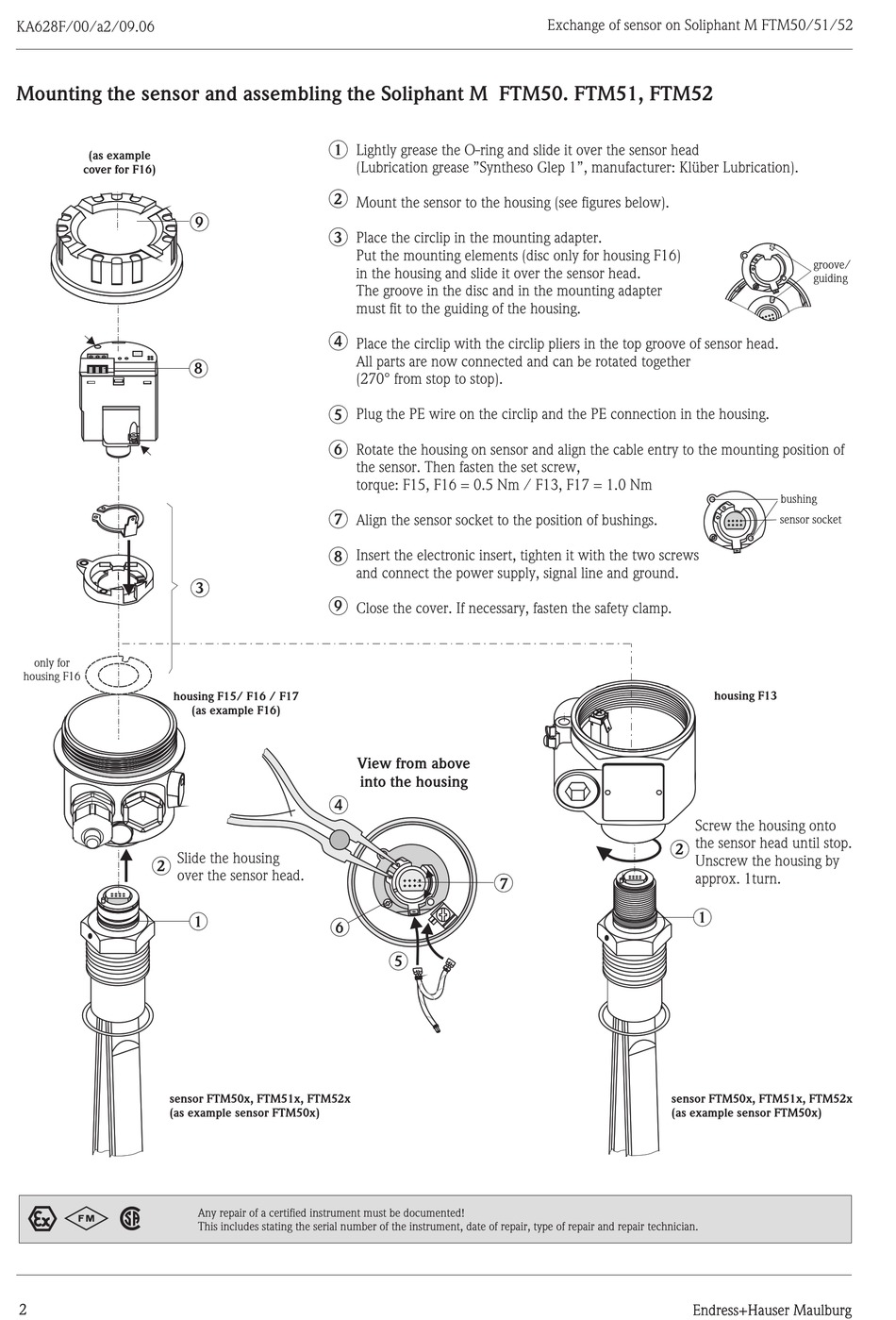

Mount the sensor to the housing (see figures below).
9
3
Place the circlip in the mounting adapter.
Put the mounting elements (disc only for housing F16)
in the housing and slide it over the sensor head.
The groove in the disc and in the mounting adapter
must fit to the guiding of the housing.
4
Place the circlip with the circlip pliers in the top groove of sensor head.
All parts are now connected and can be rotated together
8
(270° from stop to stop).
Plug the PE wire on the circlip and the PE connection in the housing.
5
6
Rotate the housing on sensor and align the cable entry to the mounting position of
the sensor. Then fasten the set screw,
torque: F15, F16 = 0.5 Nm / F13, F17 = 1.0 Nm
7
Align the sensor socket to the position of bushings.
Insert the electronic insert, tighten it with the two screws
8
and connect the power supply, signal line and ground.
3
9
Close the cover. If necessary, fasten the safety clamp.
(as example F16)
View from above
into the housing
4
1
6
Any repair of a certified instrument must be documented!
Any repair of a certified instrument must be documented!
This includes stating the serial number of the instrument, date of repair, type of repair and repair technician.
This includes stating the serial number of the instrument, date of repair, type of repair and repair technician.
Exchange of sensor on Soliphant M FTM50/51/52
7
5
groove/
guiding
bushing
sensor socket
housing F13
Screw the housing onto
the sensor head until stop.
2
Unscrew the housing by
approx. 1turn.
1
sensor FTM50x, FTM51x, FTM52x
(as example sensor FTM50x)
