1
Quick Setup Guide

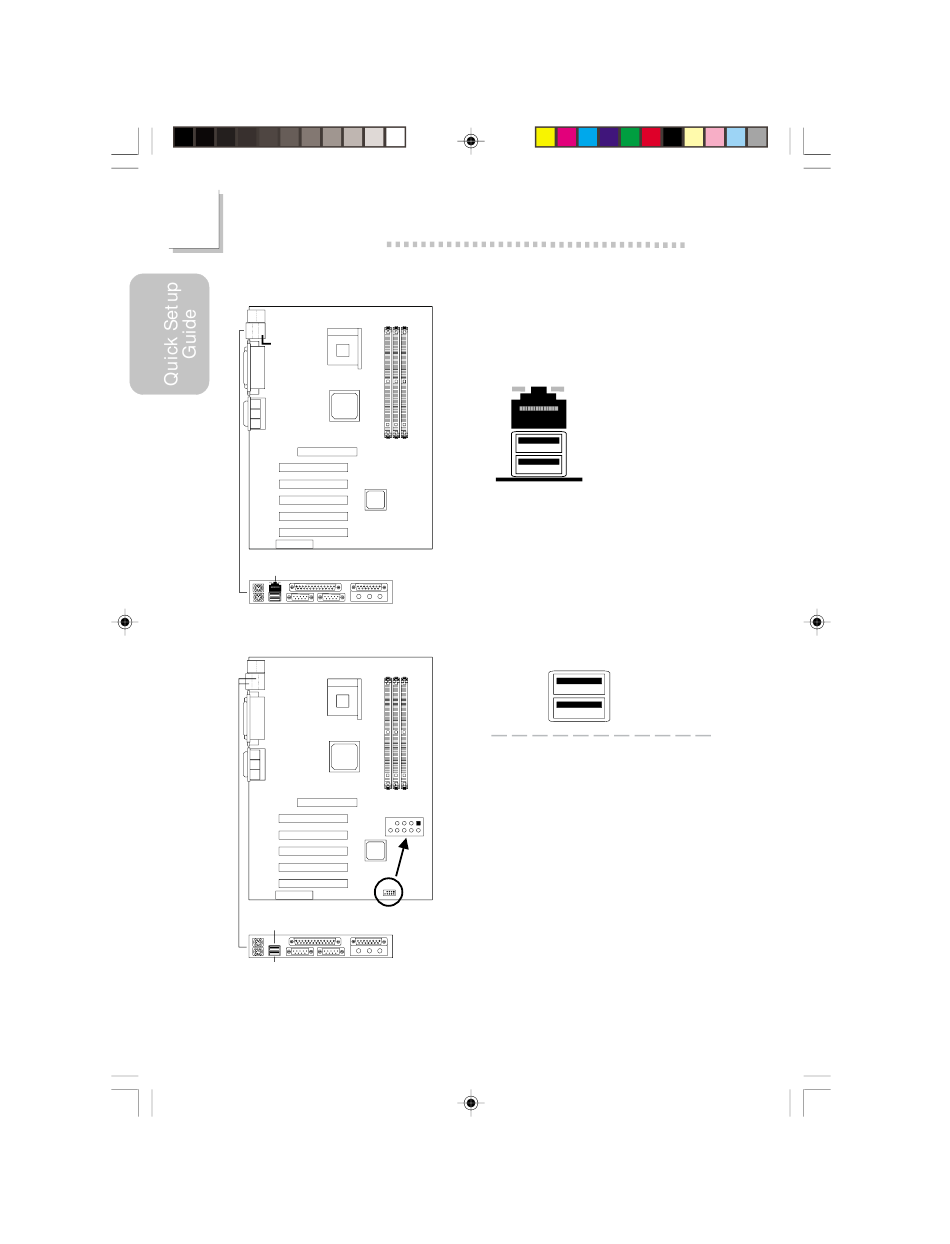

1.3.3 RJ45 Fast-Ethernet Port (NS70-EL only)
LAN-USB1
RJ45
LAN
1.3.4 Universal Serial Bus Ports
LAN-USB1
USB 2
(Black)
USB 1
(Black)
10
Onboard USB Ports (USB 1 & 2)
Additional USB Ports (USB 3 and 4)
1 VCC
2 -Data
USB 3 & 4
3 +Data
(J9)
4 Ground
9 1
5 Key
2
10
The Wake-On-USB function, when
enabled, allows a USB keyboard to
wake up a system from the S3/S4/
9 1
10 2
S5 state.
RJ45 LAN
6 VCC
7 -Data
8 +Data
9 Ground
1 0 N. C.
