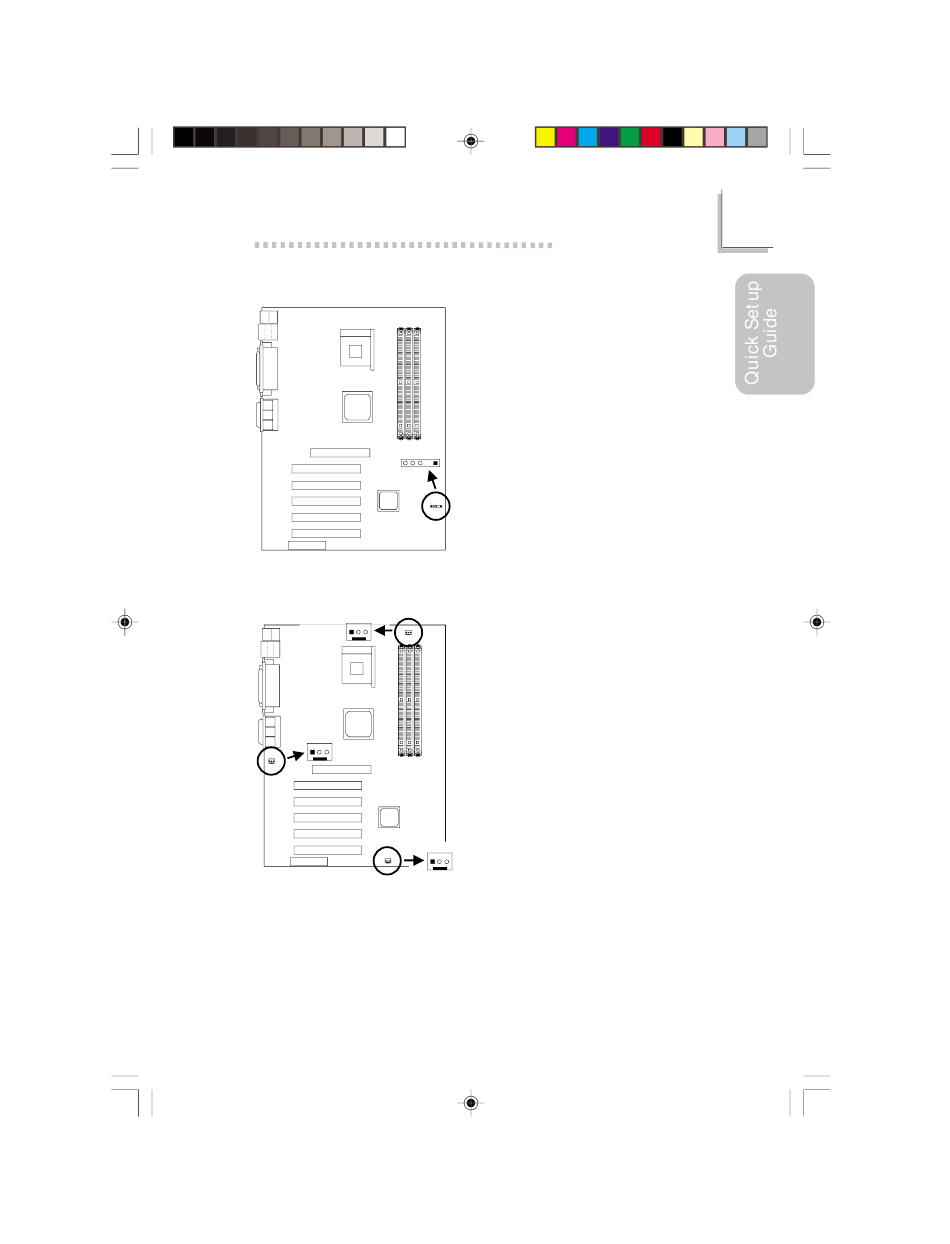

1.3.9 IrDA Connector
IrDA
5 4 3 2 1
(J14)
1.3.10 Fan Connectors
1 2 3
CPU fan
(J10)
1 2 3
System
fan 2 (J1)
1
Quick Setup Guide
1 VCC
2 Key
3 IRRX
4 Ground
5 IRTX
The sequence of the pin
functions on some IrDA cable
may be reversed from the pin
function defined on the system
board. Make sure to connect the
cable to the IrDA connector
according to their pin functions.
CPU Fan
1 Ground
2 +12V
3 Sense
System Fan 1
(red connector)
1 Ground
2 +12V
3 Sense
System Fan 2
(white connector)
1 Ground
2 +12V
2 3
System
3 N. C.
fan 1 (J8)
1
