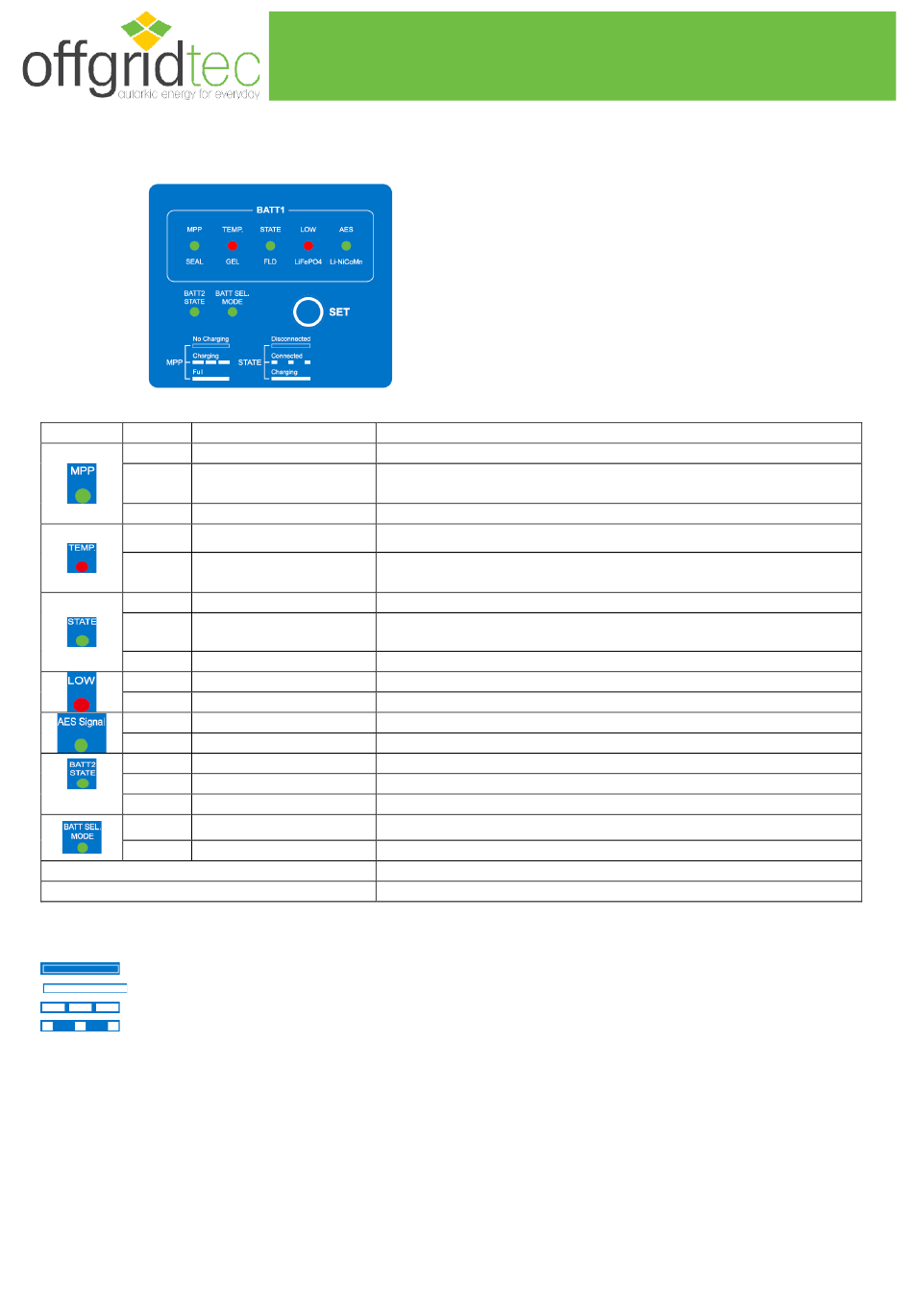

3.1 Offgridtec MPPT Pro Dual Display Basic

1 Status indicator
indicator Color
Green
Green
Green
Red
Red
Green
Green
Green
Red
Red
Green
Green
Green
Green
Green
Green
Green
All indicatorFast flashing(4Hz)
All indicatorSlowly flashing(1Hz)
①The controller doesn't recognize the system voltage when the battery type is a lithium battery
Indicator "OFF" status
. Indicator "On solid" status.
Indicator"Slowly flashing (1Hz) " status.
Indicator"Slowly flashing (0.2Hz)" status.
Allgemeine Informationen
Offgridtec GmbH
Landshuter Str. 141 – 143
84307 Eggenfelden
WEEE-Reg.-Nr. DE37551136
Offgridtec MPPT Pro Duo
Status
OFF No charging
Slowly flashing
(1Hz) Charging, in stage Boost or Equalize
On solid Full, in stage Float
OFF BATT1 Temperature normal
Fast flashing
BATT1 over temperature
BATT1 low temperature
(4Hz)
Connect to BATT1 and in charging
On solid
Slowly flashing
Connect to BATT1 and no charging
(0.2Hz)
OFF Not connect BATT1
On solid BATT1 over discharged/Low voltage
OFF BATT1 low voltage reconnect
On solid Turn on the AES signal
OFF Turn off the AES signal
On solid Connect to BATT2 and in charging
Slowly flashing(1Hz) Connect to BATT2 and no charging
OFF Not connect BATT2
On solid In stage setting mode of battery type
OFF Settings are saved after quit the setting mode
System voltage error
Controller overheating
