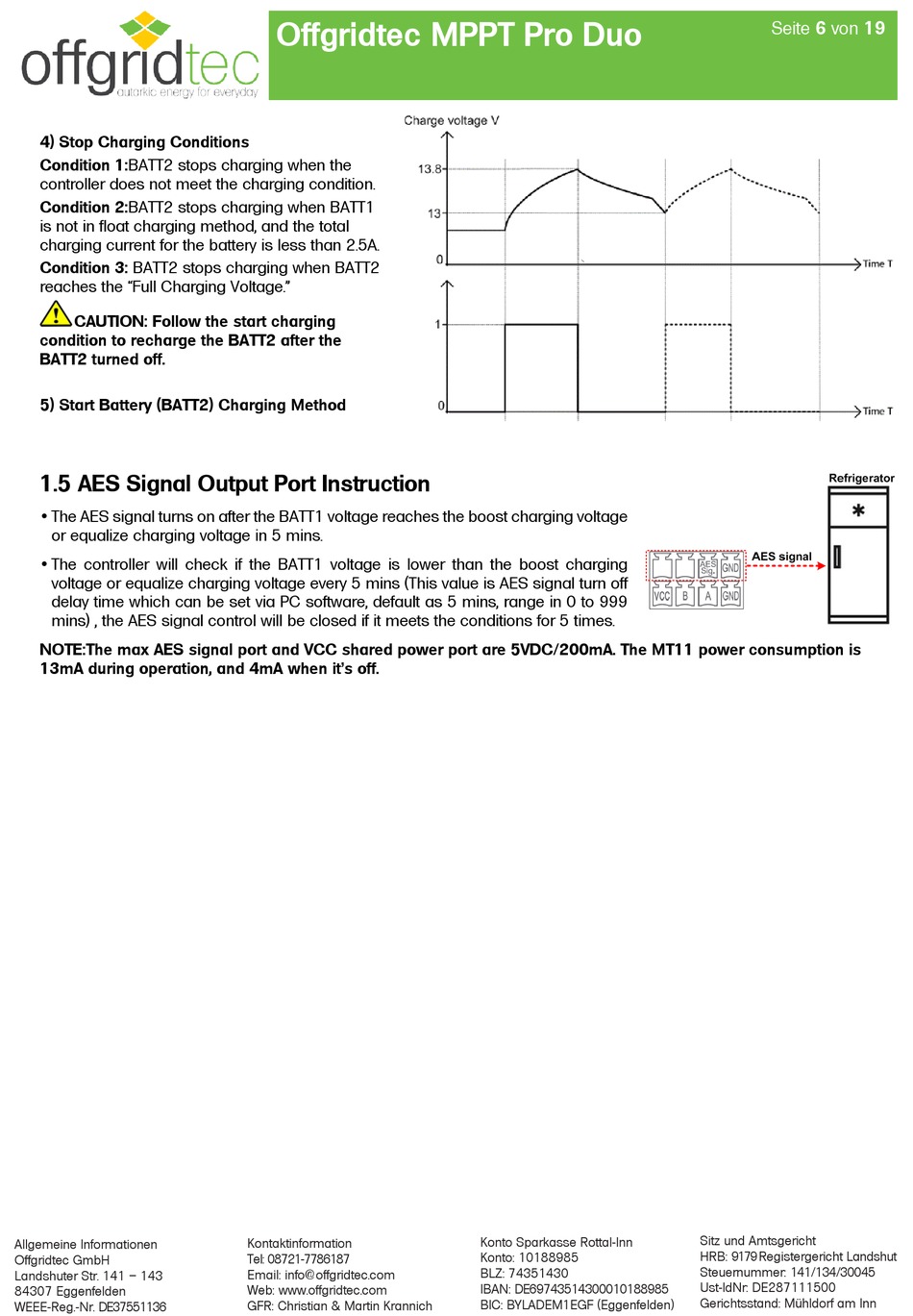

4) Stop Charging Conditions
Condition 1:BATT2 stops charging when the
controller does not meet the charging condition.
Condition 2:BATT2 stops charging when BATT1
is not in float charging method, and the total
charging current for the battery is less than 2.5A.
Condition 3: BATT2 stops charging when BATT2
reaches the "Full Charging Voltage."
CAUTION: Follow the start charging
condition to recharge the BATT2 after the
BATT2 turned off.
5) Start Battery (BATT2) Charging Method

1.5 AES Signal Output Port Instruction

 The AES signal turns on after the BATT1 voltage reaches the boost charging voltage
or equalize charging voltage in 5 mins.
 The controller will check if the BATT1 voltage is lower than the boost charging
voltage or equalize charging voltage every 5 mins (This value is AES signal turn off
delay time which can be set via PC software, default as 5 mins, range in 0 to 999
mins) , the AES signal control will be closed if it meets the conditions for 5 times.
NOTE:The max AES signal port and VCC shared power port are 5VDC/200mA. The MT11 power consumption is
13mA during operation, and 4mA when it's off.
