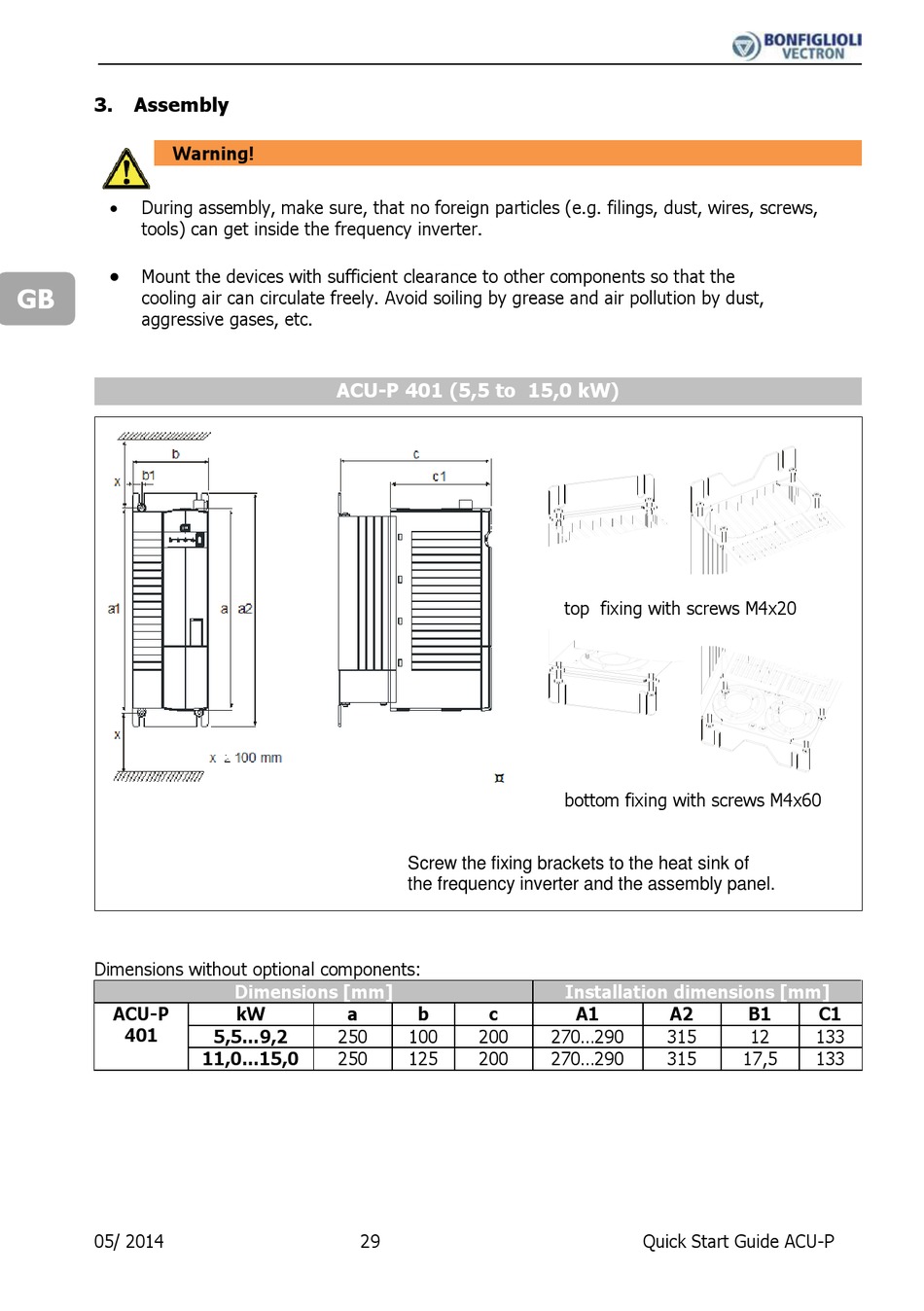

3. Assembly
Warning!
During assembly, make sure, that no foreign particles (e.g. filings, dust, wires, screws,
tools) can get inside the frequency inverter.
Mount the devices with sufficient clearance to other components so that the
GB
cooling air can circulate freely. Avoid soiling by grease and air pollution by dust,
aggressive gases, etc.
D
Dimensions without optional components:
ACU-P
401
05/ 2014
ACU-P 401 (5,5 to 15,0 kW)
Dimensions [mm]
kW
a
5,5...9,2
250
11,0...15,0
250
29
top fixing with screws M4x20
bottom fixing with screws M4x60
Screw the fixing brackets to the heat sink of
the frequency inverter and the assembly panel.
Installation dimensions [mm]
b
c
A1
100
200
270...290
125
200
270...290
A2
B1
315
12
133
315
17,5
133
Quick Start Guide ACU-P
C1
