Dell EMC PowerEdge R630 Handbuch Seite 162

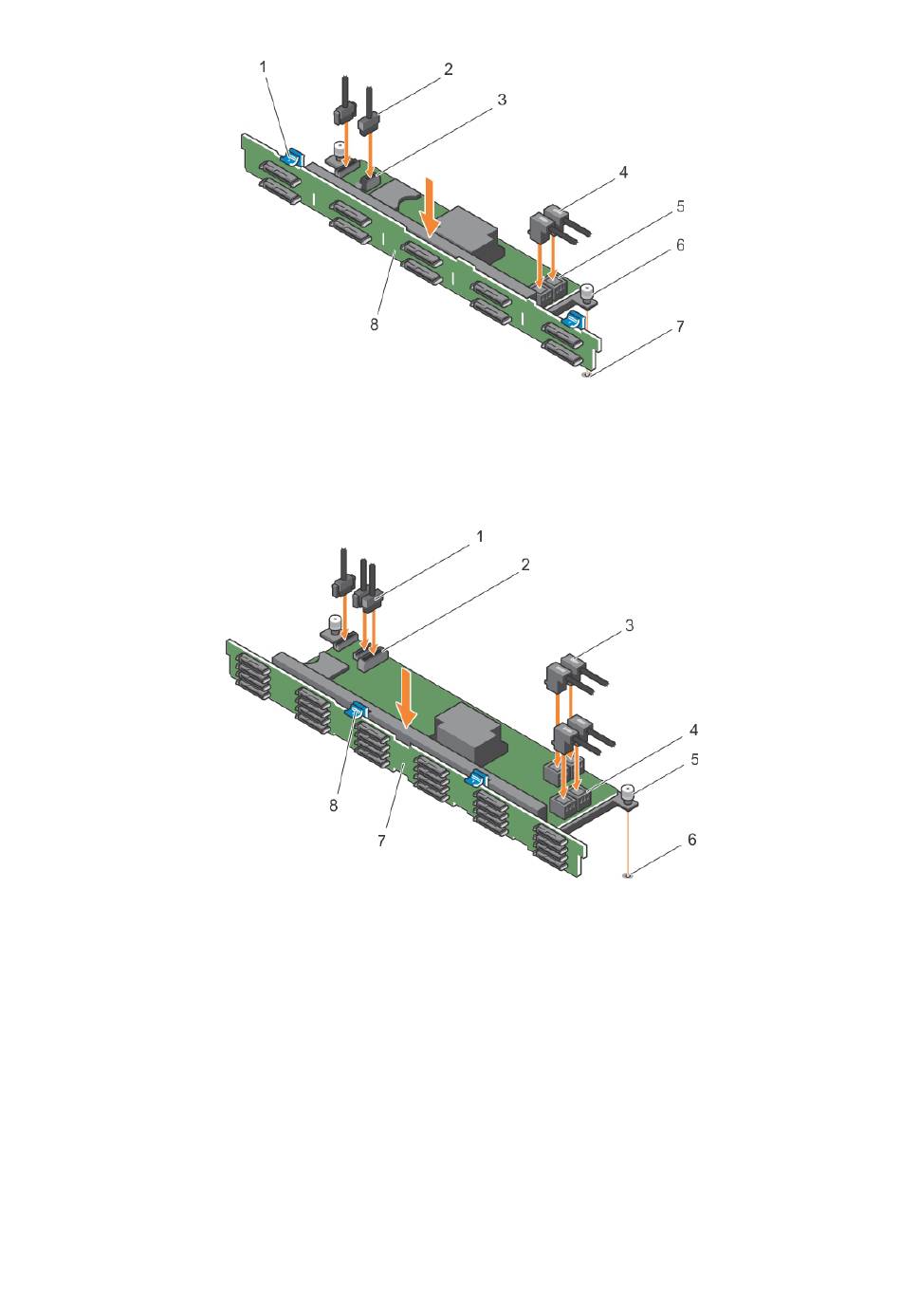

Figure 86. Installing the 2.5-inch (x10) hard drive backplane
1. release tab
3. SD signal cable connector
5. SAS cable connector (2)
7. guide pin slot
Figure 87. Installing the 1.8-inch (x24) hard drive backplane
1. SD signal cable (3)
3. SAS cables (4)
5. guide pin
7. backplane
1. Install the hard drives in their original locations.
2. Follow the procedure listed in the After working inside your system section.
Related references
Sicherheitshinweise on page 82
Wie Sie Hilfe bekommen on page 204
Verwenden der Systemdiagnose
162 Installieren und Entfernen von System-Komponenten
on page 181
2. SD signal cable
4. SAS cables (2)
6. guide pin
8. backplane
2. SD signal cable connector (2)
4. SAS cable connector (4)
6. guide pin slot
8. release tab (2)
