CHAPTER 5 - ELECTRICAL DIAGRAM

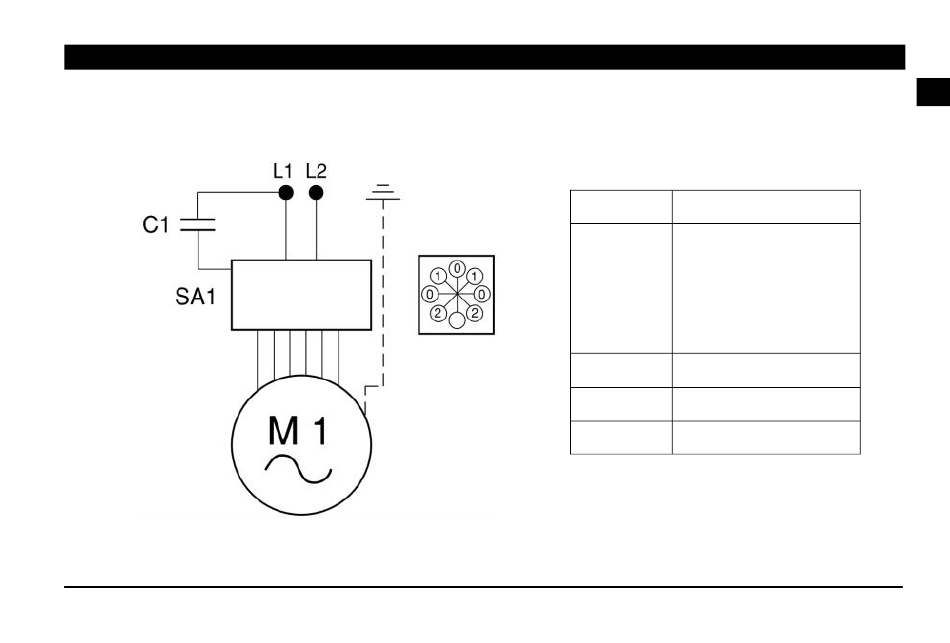

5-1 SINGLE-PHASE MOTOR

Component Description and function
SA1 Speed selector
(1) (2) Start
(0) Stop
(1) (2) Reverser
L1, L2 Line
C1 Capacitor
M1 Single-phase motor
