3-9 USING THE POWER FEEDER
UNIT ON A SPINDLE MOULDER
During grooving operations, the two
spindle moulder guides must be
perfectly aligned.
During milling or profiling operations
the two guides must be as staggered
as required by the thickness to be
removed.

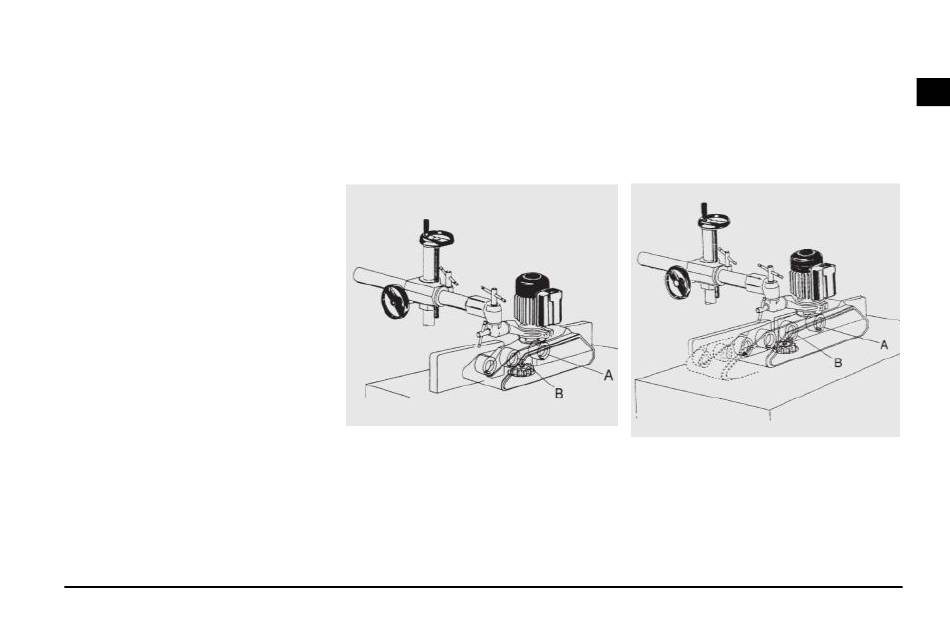

3-rollers power feeder unit
(STEFF 2034 - 2038 - 2038CI)
Place the feeder so that the toupie
miller is fitted between the middle
roller (B) and the entry roller (A).
STEFF 2034 - 2038 - 2038CI
4/6-rollers power feeder unit
(STEFF 2044 - 2048 - 2068)
Place the feeder so the toupie miller is
immediately after the input rollers (A)
and (B).
STEFF 2044 - 2048 - 2068
Fig.19
