CHAPTER 2 - INSTALLATION
This chapter contains
instructions required to correctly
assemble the machine.

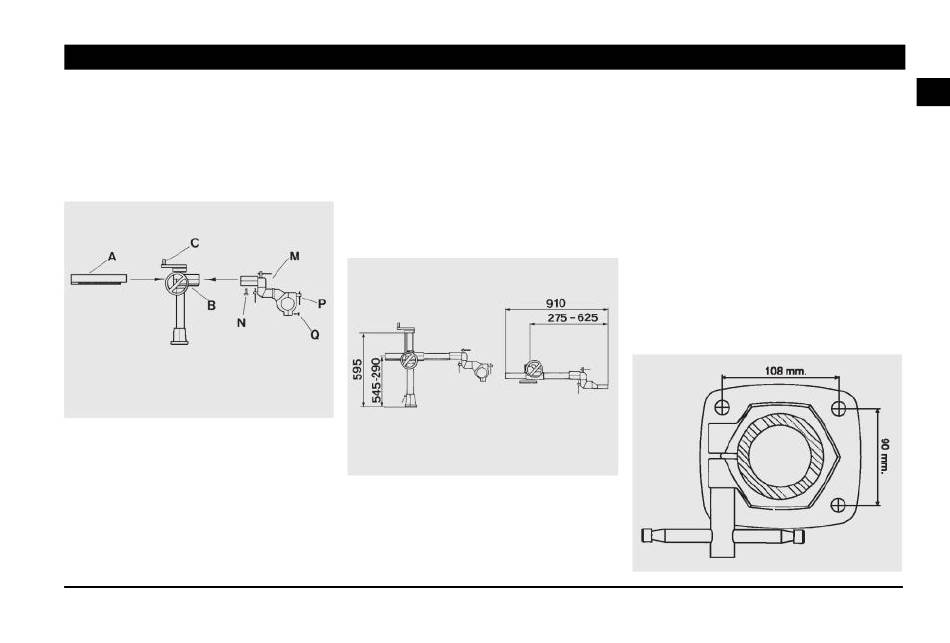

2-1 ASSEMBLING THE SUPPORT
BASE
1) Insert horizontal racked tube (A)
into support (B).
2) Fit articulated collared group (M) to
the end of tube (A) and tighten
clamping screw (N).
3) Insert knob (C) into the lift-adjusting
handwheel.
all the 2-2 PLACING AND FASTENING THE
S U P P O R T
WORKSTAND
Before carrying out the fastening, it is
advisable to consider the dimensions
of the machine when assembled
(Fig.6) .
Fig.5
One should consider the space
O N T H E
required for working, which depends
on the way the unit will be used, so as
to find the best position for the support
base.
Chapter 3 illustrates the different uses
of the machine and provides a few
examples of optimum positioning of
the Feed unit.
For the distance between the holes in
the bench, pay attention to Fig.7.
Fig.6
K
EN
Fig.7
