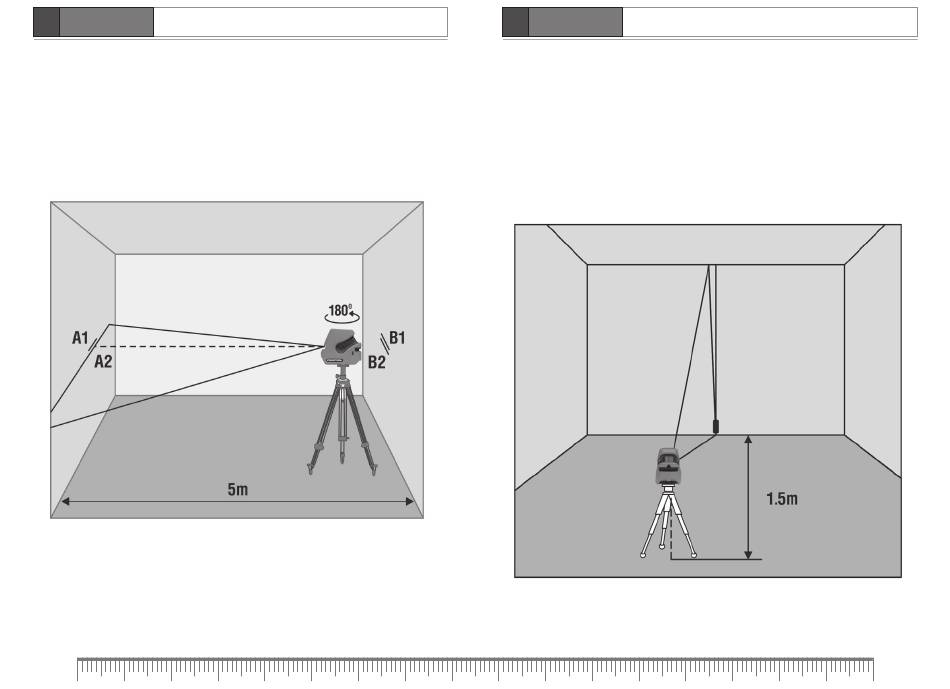

6. Install the instrument closer to the opposite wall. Mark location of
horizontal line on the wall as B2.
7. Turn the instrument by 180° and mark location of horizontal line on
the opposite wall as A2.
8. Measure vertical distance between marks A1, A2 and B1, B2. If
distance between measured values exceeds 3 mm – please contact
service center.
12
CONDTROL NEO G200
user manual
CROSS
EN
LINE LASER
Check of vertical line
Use a plumb bob as a reference of a vertical. Place the instrument at
distance of 1,5 m from the plumb bob.
1. Move lever lock to unlocked position , then switch on vertical
plane and align vertical laser line with the low point of plumb bob.
2. If deviation between the laser line and the plumb line exceeds
±0,3 mm per 1 m of the plumb bob length (for a 2,5 m plumb bob
deviation shouldn't exceed 0,75 mm) please contact service center.
