Quick Start Guide
English

Introduction

Thank you for purchasing a Pico Technology PC Oscilloscope. This oscilloscope is intended
for the measurement of electrical signals to the limits specified in this guide and in the
instrument's Data Sheet. For safe limits of accessories, refer to the documentation supplied by
the manufacturer.
This guide explains how to install the PicoScope software and connect your oscilloscope. It also
contains important safety information and advice on accessing user manuals and technical
support. Please retain it for future reference.
We recommend that you use this document in the order it is presented:
Step 1. Install the PicoScope software
Step 2. Read the oscilloscope safety and conformance information
Step 3. Connect the oscilloscope
Once you have finished the basic installation, your product's User's Guide (if applicable)
and Data Sheet will provide further information about setting up and using your
oscilloscope, and on kit contents and replacement accessories. Both are available from
picotech.com/library/documentation.

Step 1: Installing the PicoScope software

1.1

System requirements

To ensure that PicoScope operates correctly, you must use a computer with the system
requirements shown in the table below. The performance of the oscilloscope will improve with a
more powerful PC, and will benefit from a multi‑core processor.
Microsoft Windows, 32-bit and 64-bit versions
Operating system Linux and macOS (beta software only), 64-bit versions
Processor, memory,
free disk space
Ports
1.2

Installing the software

1. Go to picotech.com/downloads, select your PicoScope's series and model from the lists,
then select the latest PicoScope software. Download and run the installer.
2. In the PicoScope installer, select the language you wish to use.
3. Follow the on-screen instructions to install the software. Do not connect the oscilloscope
device until the installation is complete.
DO115-21
Specifications
See picotech.com/downloads for details
As required by the operating system
USB 2.0 or USB 3.0 port(s)
Copyright © 2006–2021 Pico Technology Ltd. All rights reserved.
4. You can try out the software with a demo device now, by clicking the new PicoScope icon
on your desktop.
For more information on the software, refer to the A to Z of PC Oscilloscopes at
picotech.com/library/a-to-z or the software User's Guide, which you can download from
picotech.com/library/documentation or access from the Help menu within the software.

Step 2: Safety information

To prevent possible electrical shock, fire, personal injury, or damage to the product, carefully
read this safety information before attempting to install or use the product. In addition, follow all
generally accepted safety practices and procedures for working with and near electricity.
The product has been designed and tested in accordance with the European standard
publication EN 61010‑1:2010+A1:2019 (Safety Requirements for Electrical Equipment for
Measurement, Control and Laboratory Use). The product left the factory in a safe condition.
The following safety descriptions are found throughout this guide:
A WARNING identifies conditions or practices that could result in injury or death.
A CAUTION identifies conditions or practices that could result in damage to the product or
equipment to which it is connected.

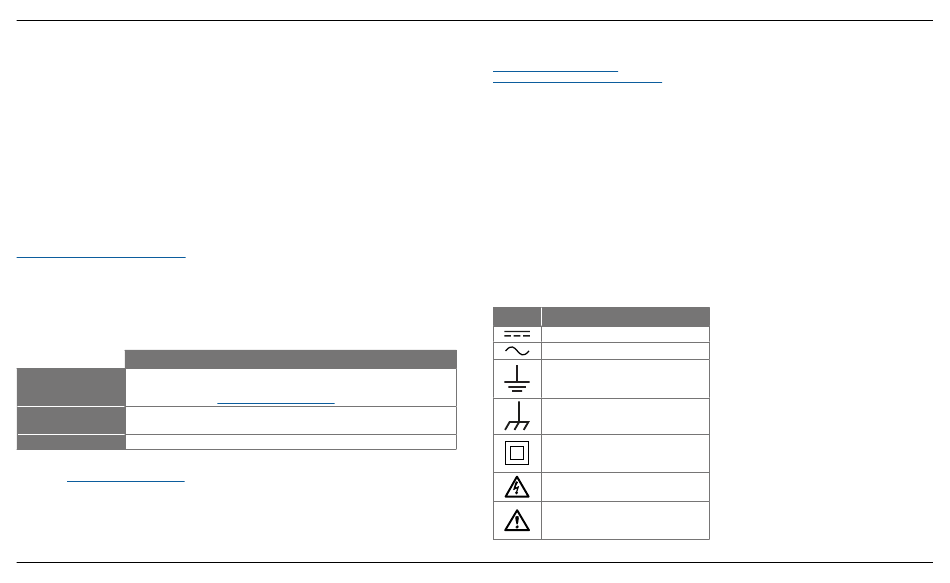

2.1 Symbols
These safety and electrical symbols (list continues overleaf) may appear on the product or in
this guide.
Symbol Description
Direct current
Alternating current
Earth (ground) terminal
Chassis terminal
Equipment protected throughout
by double insulation or reinforced
insulation
Possibility of electric shock
Caution
PicoScope USB Oscilloscopes
The terminal can be used to make a
measurement ground connection. The
terminal is NOT a safety or protective earth.
Appearance on the product indicates a need
to read the supplied safety and operating
instructions.
