Dreieckwellen auszugeben, die mit einer benutzerdefinierten Frequenz vor- und zurück laufen können. Der integrierte Signalgenerator kann über das Programm PicoScope oder über API-Aufrufe gesteuert werden. Der Signalgenerator kann auch verwendet werden, um bei eingestellter Ausgabe von Rechteckwellen die x10-Messsonden zu kompensieren. Copyright 2005 Pico Technology Limited. All rights reserved.
Dieses Sicherheitszeichen gibt an, dass an den angegebenen Anschlüssen eine Sicherheitsgefahr vorliegt, wenn die vorgeschriebenen Sicherheitsmaßnahmen nicht getroffen werden. Stellen Sie sicher, dass alle Sicherheitsunterlagen im Zusammenhang mit dem Produkt gründlich gelesen werden, bevor das Produkt verwendet wird. Copyright 2005 Pico Technology Limited. All rights reserved.
-20 V bis + 20 V ausgelegt. Spannungen über 100 V können physische Schäden verursachen. Netzspannung Produkte von Pico Technology sind nicht für den Gebrauch mit Netzspannung ausgelegt. Verwenden Sie zum Messen von Netzspannung eine isolierende Differenzsonde, die speziell für hohe Quellspannungen ausgelegt ist. Sicherheitserdung Oszilloskope aus der Serie PicoSope 3000 werden über das mitgelieferte Kabel direkt mit der...
Störfestigkeit. Produkte aus der Reihe PicoScope 3000 entsprechen auch den Zielen der Niederspannungsrichtlinie und die folgende Norm wurde angewendet: BS EN 61010-1:2001 IEC 61010-1:2001 (Sicherheitsanforderungen für elektrische Geräte, Bedienelemente und Laboreinsatz). Copyright 2005 Pico Technology Limited. All rights reserved.
USB 2.0 Kompatibel mit USB 1.1 STROMVERSORGUNG Aus USB-Port: 4,6 bis 5,25 V; 500 mA Externe Stromversorgung ist nicht erforderlich. ABMESSUNGEN 140 mm x 190 mm x 45 mm PRÜFZEICHEN CE-Norm; FCC-Norm Copyright 2005 Pico Technology Limited. All rights reserved.
Microsoft Windows 98 SE, ME, Microsoft Windows 2000, XP oder höher. Mindestens kompatibel zu USB 1.1. Kompatibilität zu USB 2.0 Ports wird empfohlen. Muss direkt mit dem Port oder einem Aktiv- HUB verbunden werden. Funktioniert nicht mit einem Passiv- Hub. Copyright 2005 Pico Technology Limited. All rights reserved.
() function is called frequently enough to avoid buffer overrun. ps3000_get_times_and_values () function will always return FALSE (0) in streaming mode. Copyright 2005 Pico Technology Limited. All rights reserved.
It is possible, however, to use the output from the signal generator as a trigger. Note: The signal generator function is not available on all PicoScope 3000 Copyright 2005 Pico Technology Limited. All rights reserved.
= ps3000_ready (handle1) ready &= ps3000_ready (handle2) ps3000_get_values(handle1) ps3000_get_values(handle2) Note: It is not possible to synchronise the collection of data between oscilloscopes when you are using them in combination. Copyright 2005 Pico Technology Limited. All rights reserved.
6 Wait until the oscilloscope says it is ready using ps3000_ready 7 Transfer the block of data from the oscilloscope using ps3000_get_times_and_values 8 Display the data 9 Repeat steps 5 to 8 as necessary 10 Stop the oscilloscope using ps3000_stop Copyright 2005 Pico Technology Limited. All rights reserved.
The length of the string written to the character string buffer, string, by Returns the function. If one of the parameters are out of range, or a null pointer is passed for string, zero will be returned. Copyright 2005 Pico Technology Limited. All rights reserved.
Seite 16
( short handle, short channel, short enabled, short dc, short range ) Specifies if a is to be enabled, the position of the AC\DC switch and the input range. Copyright 2005 Pico Technology Limited. All rights reserved.
Seite 17
* time_interval_ns, short * time_units, short oversample, long * max_samples) This function discovers which timebases are available on the oscilloscope. This function should be called after channel and ETS options have been set. Copyright 2005 Pico Technology Limited. All rights reserved.
Seite 18
The signal generator is not available on the PicoScope 3204 oscilloscope model. A 1kHz square wave output is made available and can be set with this function. See remarks and specifications more information.
Seite 19
Remarks The PicoScope 3204 oscilloscope model has a simple, 1kHz square wave, signal generator for scope probe calibration. Therefore only two arguments of this function have any effect: To switch the square wave on, use a valid...
Seite 20
If this is set to zero the oscilloscope will wait for a trigger indefinitely. Returns if one of the parameters are out of range, otherwise 1. 5.2.10 ps3000_run_block short ps3000_run_block ( short handle, long no_of_samples, short timebase, Copyright 2005 Pico Technology Limited. All rights reserved.
Seite 21
5.2.12 ps3000_ready short ps3000_ready ( short handle) This function checks to see if the oscilloscope has finished the last data collection operation. This function does nothing if the oscilloscope is in streaming mode. Copyright 2005 Pico Technology Limited. All rights reserved.
Seite 22
Returns the no_of_values if streaming. is returned if one of the parameters are FALSE out of range. 5.2.15 ps3000_get_times_and_values long ps3000_get_times_and_values( short handle long * times, short * buffer_a, short * buffer_b, Copyright 2005 Pico Technology Limited. All rights reserved.
PS3000_NS PS3000_US PS3000_MS PS3000_S femto seconds, pico seconds, nano seconds (default), micro seconds, milli seconds and seconds respectively. no_of_values. The number of data points to return. In streaming mode, this is the maximum no of values to return. The actual number of data values per channel returned which may be less than Returns if streaming.
Seite 24
PicoScope 3000 series (Microsoft Visual C 32-bit applications) ps3000.lib Copyright 2005 Pico Technology Limited. All rights reserved.
TRUE. Check for > 0 rather than =TRUE. 5.3.5 HP-Vee The example function is in the drivers sub-directory. It uses procedures that are ps3000.vee defined in ps3000.vh . It was tested using HP-Vee version 5. Copyright 2005 Pico Technology Limited. All rights reserved.
Sekunde erfassen kann. Maximale Abtastraten werden gewöhnlich in MS/s (Mega-Samples pro Sekunde) oder GS/s (Giga-Samples pro Sekunde) angegeben. Je höher die Abtast- Leistungsfähigkeit eines Oszilloskops ist, desto wirklichkeitsgetreuer ist die Darstellung feiner Details in einem schnellen Signal. PC-Oszilloskop Copyright 2005 Pico Technology Limited. All rights reserved.
Seite 27

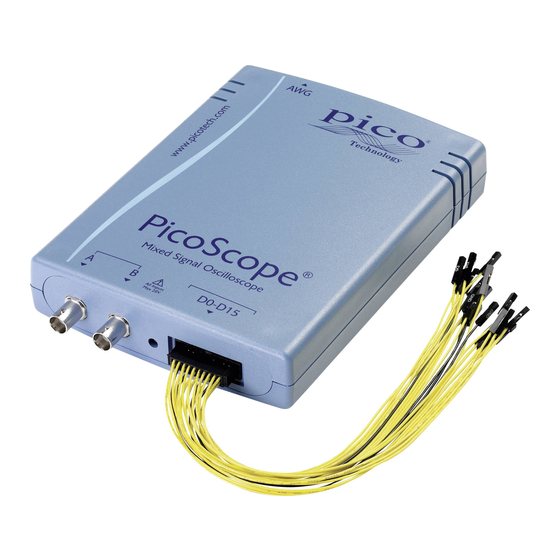

Zwischenspeicherung von Daten verwendet. Dadurch können die Unterschiede in den Datenübertragungsraten der Geräte besser ausgeglichen werden. Serie PicoScope 3000 Eine Oszilloskop-Produktreihe, die das PicoScope 3204, PicoScope 3205 und PicoScope 3206 umfasst. Signalgenerator Dies ist eine Oszilloskop-Funktion, mit der ein Signal erzeugt werden kann, ohne dass ein externes Eingabegerät vorhanden ist.
Seite 28
Dialogfeld Einstellungen das Kontrollkästchen Zeitbasis in Zeitspanne pro Unterteilung aktiviert ist, funktioniert es wie ein normales Oszilloskop. Auf dem Bildschirm gibt es zehn Unterteilungen, so dass die gesamte Zeitspanne gleich zehn mal der Zeitbasis ist. Copyright 2005 Pico Technology Limited. All rights reserved.
This section is aimed at those people who intend to write their own programs for use with the driver. A description of the driver error codes is given below. If the PicoScope or PicoLog software reports an error, refer to the FAQ. Copyright 2005 Pico Technology Limited. All rights reserved.
Seite 30
The oscilloscope is not responding to commands from the PC. PS3000_CONFIG_FAIL The configuration information in the oscilloscope has become corrupt or is missing. PS3000_OS_NOT_SUPPORTED Need to use Windows 98 (or later) or Windows 2000 (or later) Copyright 2005 Pico Technology Limited. All rights reserved.
Seite 32
Software control Sonde Spektrumanalysator Streaming mode 10, 13 Sweep Systemanforderungen Technische Daten Technischer Support Technischer Support von Pico Threshold voltage Time interval Time interval Timebase 16, 19 Treiber Trigger Trigger event Triggering Copyright 2005 Pico Technology Limited. All rights reserved.
Seite 33
Pico Technology Ltd The Mill House Cambridge Street St Neots PE19 1QB Großbritannien Tel: +44 1480 396 395 Fax: +44 1480 396 296 Web: www.picotech.com PS3000049 1.1 2005-04-28...
