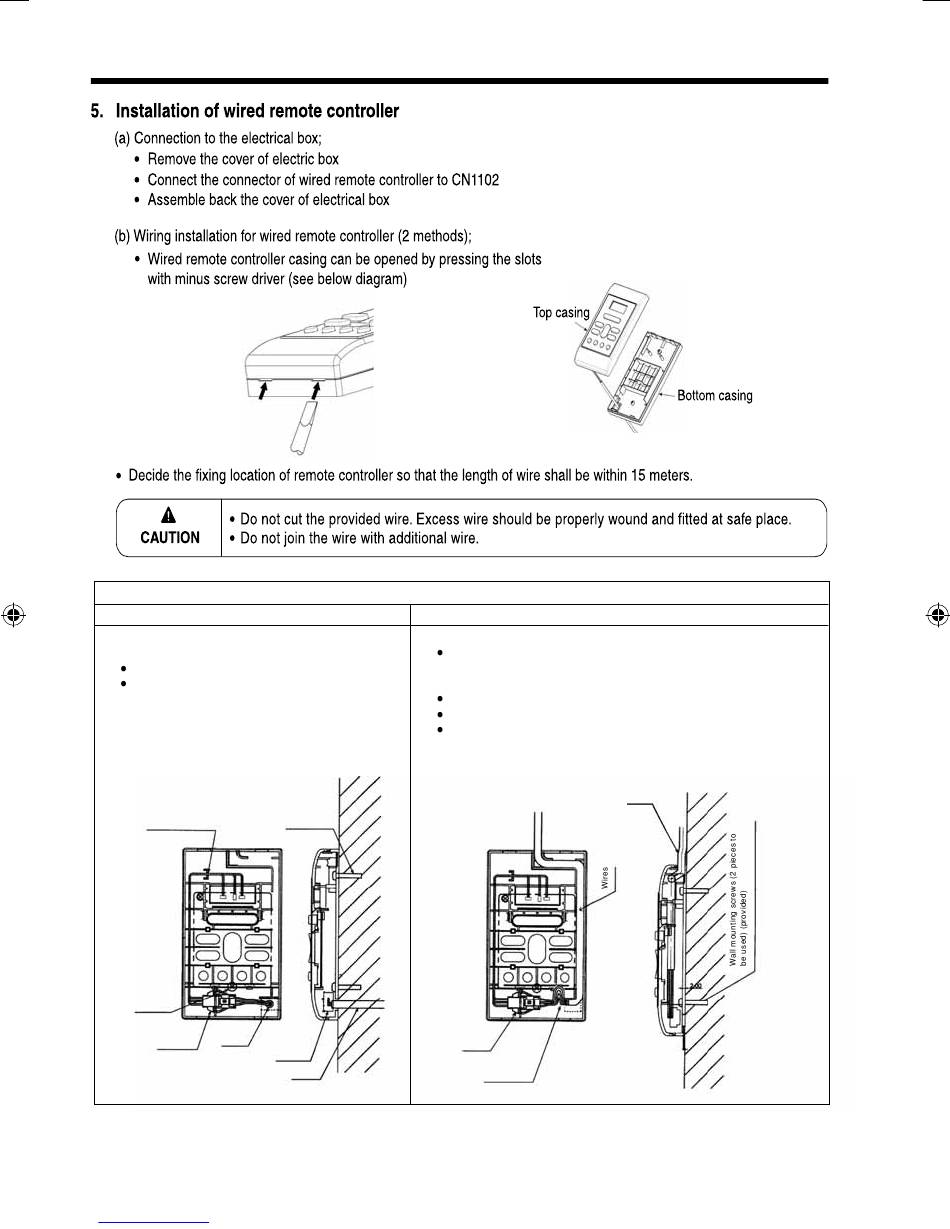

INSTALLATION OF WIRED REMOTE CONTROLLER
Wall recessed wiring installation (Supplied)
1. When connecting the wires via the wall's recessed
slot;
Fix the bottom casing to the wall by provided screw.
Assemble the top casing to the fi xed bottom casing.
(Refer to the illustration below for detail installation)
Lead wires (3 strands)
are inserted through and
fastened via a rib-clip
Location of wall
mounting screw
Lead wires
connector
Downloaded from www.Manualslib.com
Wiring installation illustrations
Wall
mounting
screws
(2 pieces)
(provided)
Wires
Lead wires
connector
Wires
manuals search engine
Inside top wiring installation (Alternative)
2. When the wires to be connected from the inside top portion of top casing;
Break off a perforated aperture located at the top portion of the bottom
casing by nipper. Smoothen the aperture by cutter.
Fix the bottom casing to the wall by provided screw.
Connect the wires to the lead wires connector.
Mount the wires through the provided slot on top casing.
Assemble the top casing to the fi xed bottom casing
(Refer to the illustration below for detail installation)
Lead wires
connector
Lead wires
(3 strands)
– 10 –
Wires
