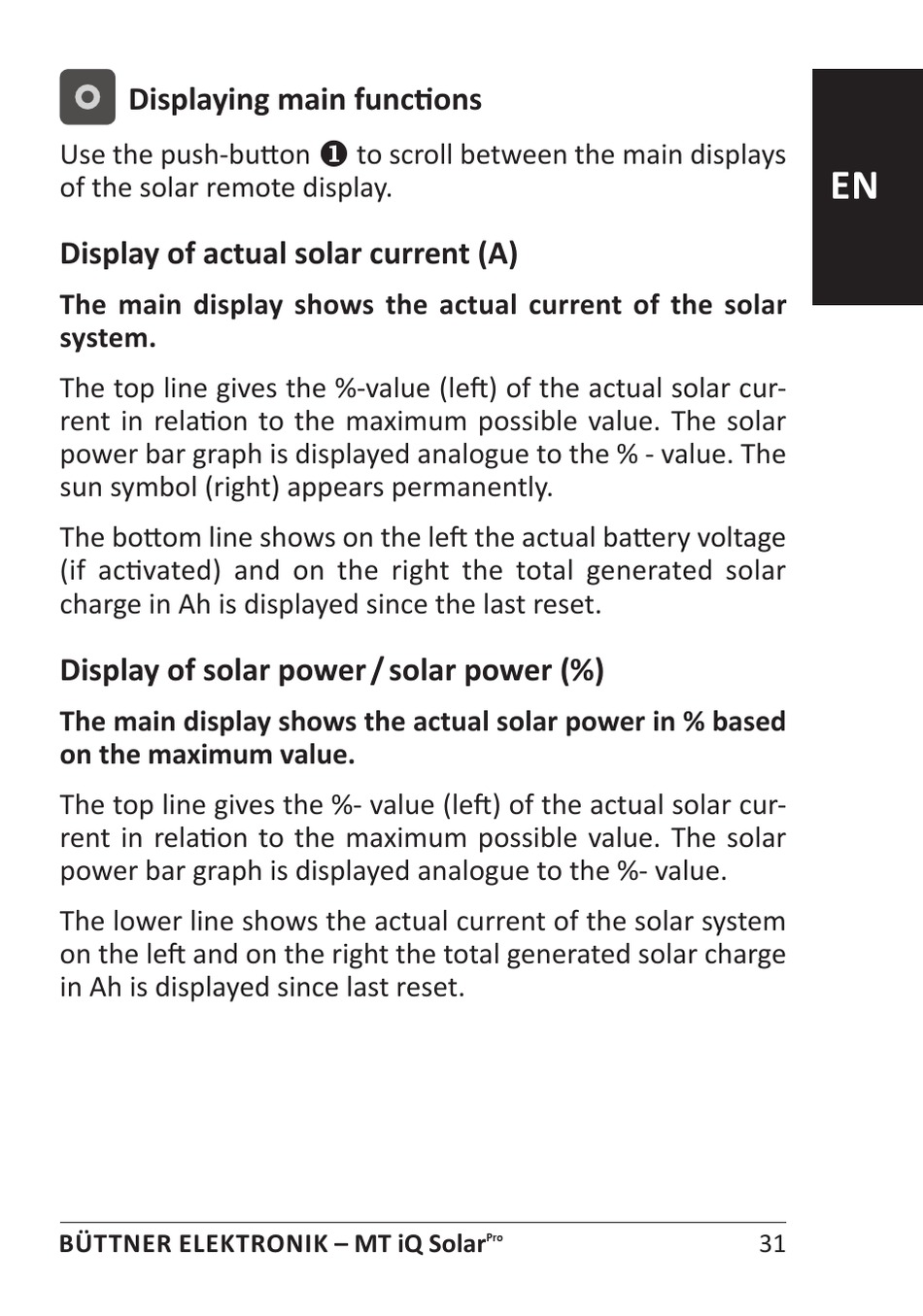

Displaying main funcions
u
Use the push-buton to scroll between the main displays
EN
of the solar remote display.
Display of actual solar current (A)
The main display shows the actual current of the solar
system.
The top line gives the %-value (let) of the actual solar cur-
rent in relaion to the maximum possible value. The solar
power bar graph is displayed analogue to the % - value. The
sun symbol (right) appears permanently.
The botom line shows on the let the actual batery voltage
(if acivated) and on the right the total generated solar
charge in Ah is displayed since the last reset.
Display of solar power / solar power (%)
The main display shows the actual solar power in % based
on the maximum value.
The top line gives the %- value (let) of the actual solar cur-
rent in relaion to the maximum possible value. The solar
power bar graph is displayed analogue to the %- value.
The lower line shows the actual current of the solar system
on the let and on the right the total generated solar charge
in Ah is displayed since last reset.
