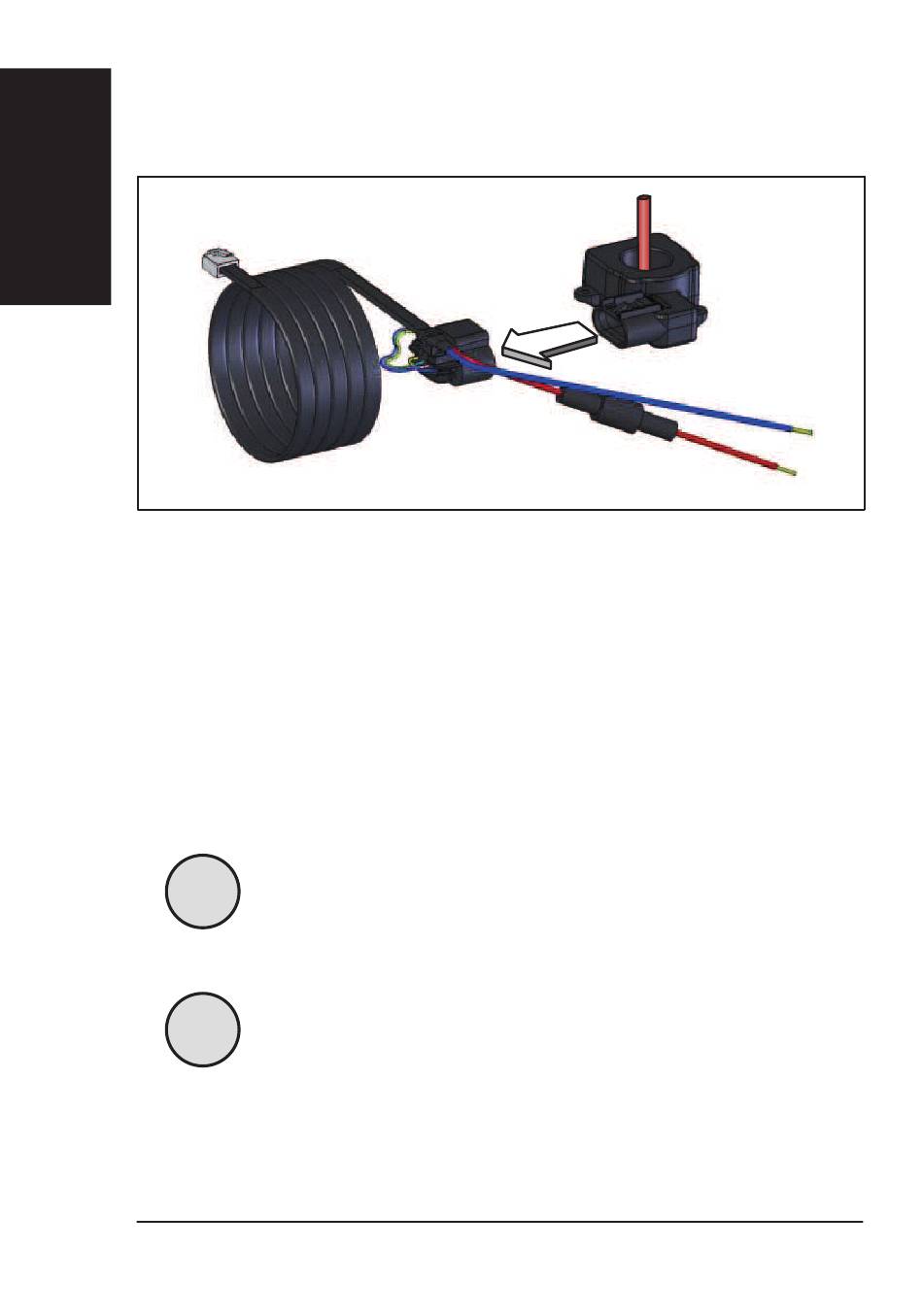

Now plug the current sensor into the connector of the
extension cord uni l it snaps in audibly.
EN
Please now connect the two power supply cables at the
socket of the data cable with the bat ery terminals. Red cable
on plus and blue cable on minus terminal of the bat ery.
Reconnect the pole terminals with the bat ery posts.
At next, connect the other end of the data cable to the
according socket on the back-side of the solar remote display.
Note
i
i
26
Extension cable
In case the data cable included in the packaging
is too short, it can be extended with the extension
cable MT01217.
At er wiring is i nished, check again the correct
installai on posii on of the sensor. With a pari ally
charged bat ery and at present solar radiai on, the
l owing current value must be posii ve. Otherwise
please turn the current sensor.
