7. Fit a fresh band saw blade. Observe
correct position: the teeth point
towards the front (door) side of the
saw.
8. Center band saw blade on the rub-
ber tyres of the band saw wheels.
9. Tighten quick release lever until
blade does no longer slip off the
band saw wheels.
10. Close lower blade guard .
A
Danger!
Close
when the lower blade guard is in its
closed position.
11. Close both housing doors.
12. Then:
tension band saw blade (see "Ini-
tial operation");
align band saw blade (see "Care
and Maintenance");
align blade guides (see "Care
and Maintenance");
let saw test run for at least one
minute;
stop saw, unplug and recheck
settings.

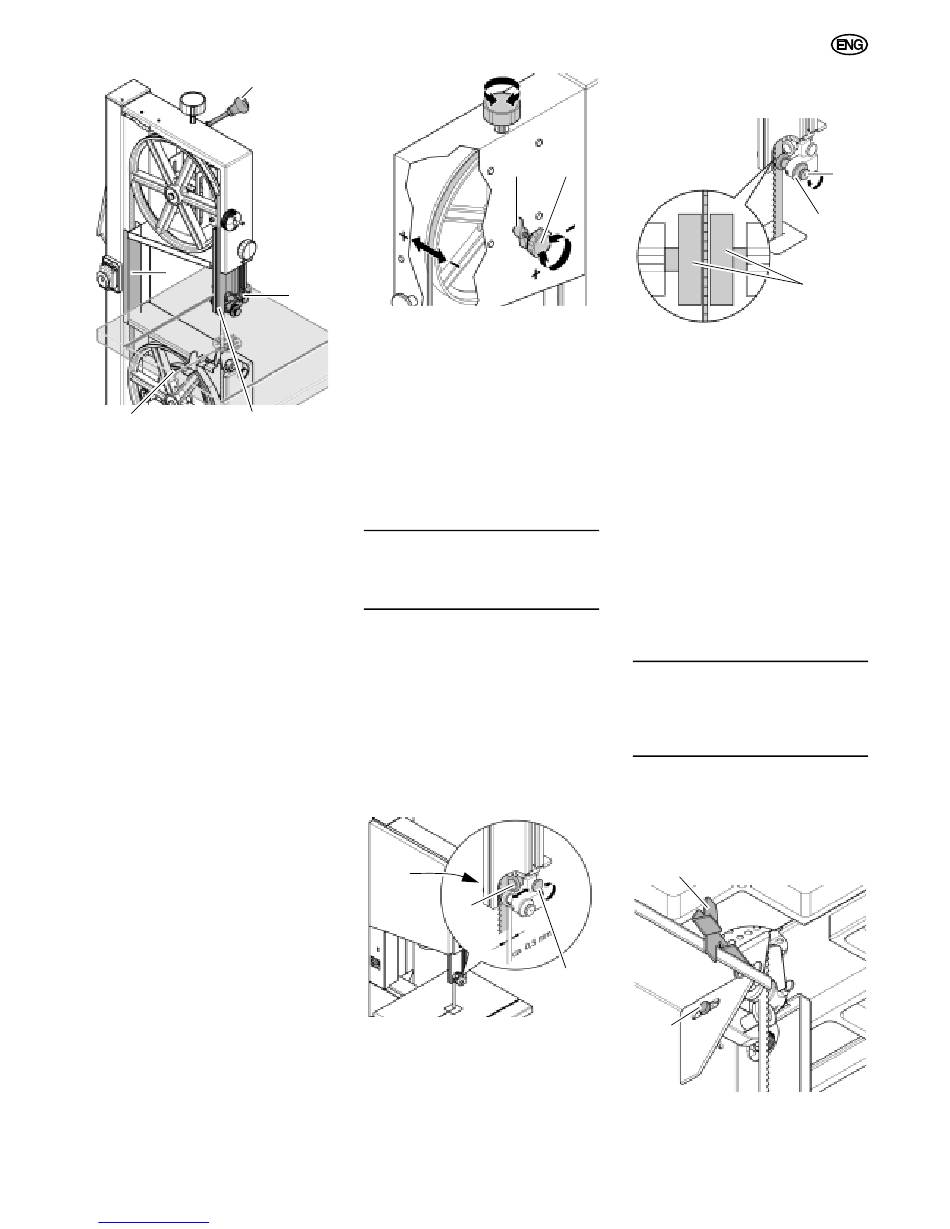

8.2 Aligning the Band Saw
Blade
If the band saw blade does not run in the
centre of the rubber tyres, the tracking
needs to be corrected by adjusting the
tilt of the upper band saw wheel:
1. Loosen lock nut (77).
2. Turn setting knob (78):
Turn setting knob (78) clockwise
if the band saw blade runs
towards the front of the saw.
Turn setting knob (78) counter-
clockwise if the band saw blade
runs towards the rear of the saw.
Downloaded from www.Manualslib.com
73
72
3.
8.3
The upper blade guide consists of:
75
All bearings need to be readjusted after
every band saw blade change and/or
tracking adjustment.
wear, if necessary replace both guide
bearings at the same time.
Adjusting the thrust bearing
housing doors only
1.
2.
3.
4.
5.
6.
7.
Adjusting the guide bearings
1.
manuals search engine
77
Tighten lock nut (77).
Aligning the Upper Blade
Guide
a thrust bearing (supporting the
band saw blade from the rear),
two guide bearings (providing lateral
support).
3
Note:
Periodically check all bearings for
If necessary, align and tighten the
band saw blade.
Loosen fixing screw (79) of the
upper blade guide.
Align upper blade guide
Tighten the upper blade guide's fix-
ing screw.
Loosen the thrust bearing's (81) lock
screw (80).
81
80
Adjust thrust bearing position (dis-
tance thrust bearing - band saw
blade = 0.5 mm – if the band saw
blade is turned by hand, it must not
touch the thrust bearing).
Tighten the thrust bearing lock
screw.
Loosen knurled nut (83).
2. Set guide bearings (84) with the
knurled thumb screws (82) against
the band saw blade.
78
3. Turn band saw wheel by hand in a
clockwise direction several times to
bring the guide bearings in correct
position – both guide bearings
should just touch the band saw
blade.
4. Retigthen knurled nut (83) to lock
the knurled thumb screw (82).
8.4 Aligning the Lower Blade
Guide
The lower blade guide consists of:
a thrust bearing (supporting the
band saw blade from the rear),
two guide bearings (providing lateral
support).
These parts need to be readjusted after
every band saw blade change or track-
ing adjustment:
3
Note:
Periodically check thrust bearings
and guide bearings for wear, if neces-
sary replace both guide bearings at the
same time.
Basic alignment
1. Open lower housing door and the
lower blade guard (85).
2. Loosen lower blade guide fixing
screw (86) with an open jaw wrench.
85
79
86
3. Adjust position of lower blade guide
until band saw blade is centred
between the guide bearings (90).
4. Tighten screw (86).
ENGLISH
82
83
84
