Initial Operation; Mounting; Installing The Saw Table; Aligning The Saw Table - Metabo BAS 317 Precision Betriebsanleitung

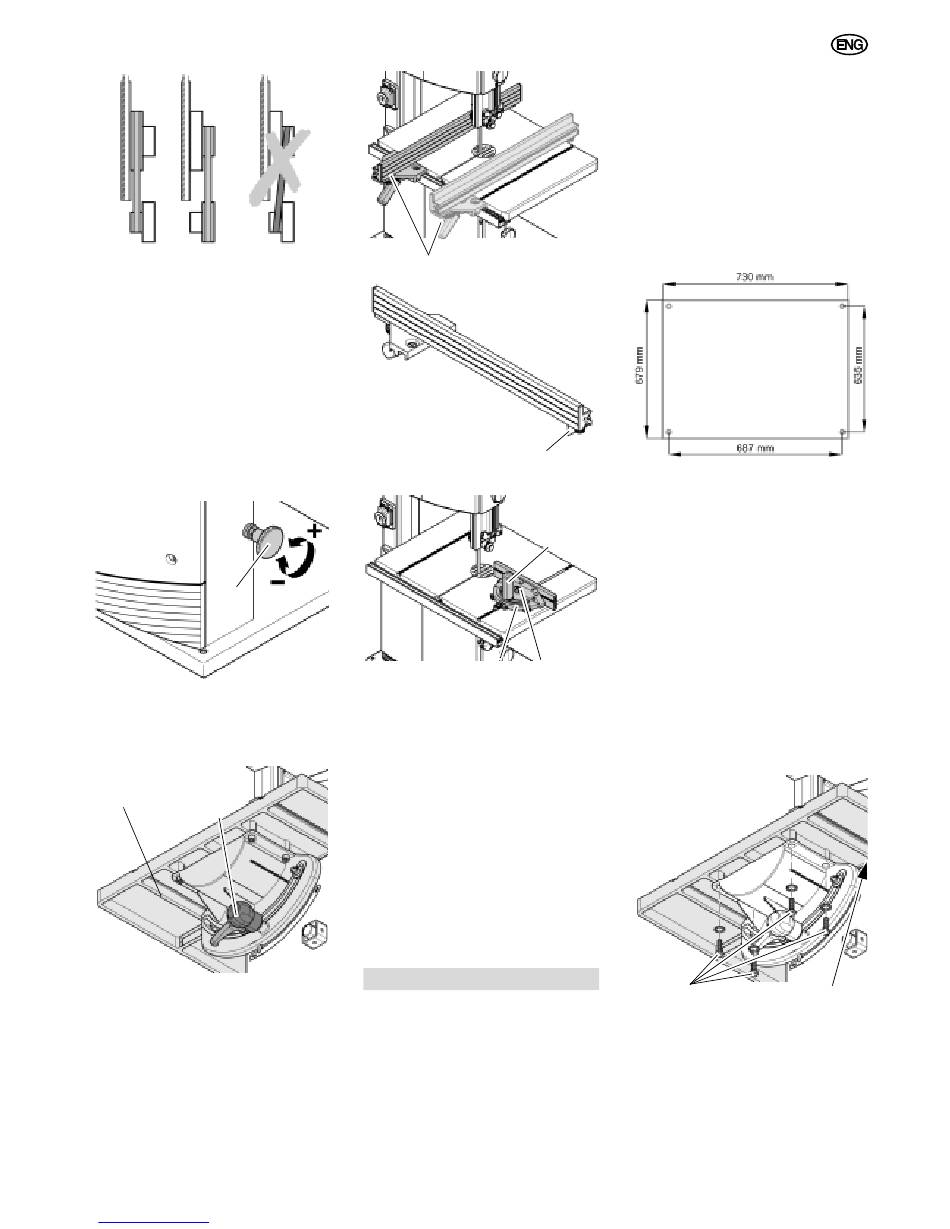

370 m/min 800 m/min
A
Caution!
The drive belt must not run in a
diagonal position; this will damage
the belt
Setting knob for drive belt tension
With the setting knob (43) the drive belt
tension is corrected, if necessary:
turning the setting knob clockwise
reduces the blade tension;
turning the setting knob counter-
clockwise increases the blade ten-
sion.
Saw table tilt
After loosening the lock screw (44) the
saw table (45) tilts steplessly through
47° against the blade.
45
Rip fence
The rip fence (46) clamps to the front of
the bandsaw table; in addition it is held
in position by the hold-down clamp (47)
at the rear of the bandsaw table. The rip
fence can be used on both sides of the
blade.
Downloaded from www.Manualslib.com
Mitre fence
43
The mitre fence (49) is inserted into the
table slot from the table's front edge.
For mitre cuts the mitre fence turns to
60° in both directions.
For 45° and 90° miters positive stops are
provided.
To set a mitre angle: loosen lock handle
44
(48) by turning it counter-clockwise.
A
fence the lock handle must be firmly
tightened.
The auxiliary fence extrusion can be
taken off and reversed after loosening
knurled nut (50).

6. Initial Operation

A
lowing preparations have been com-
pleted:
the saw is securely mounted;
the saw table is installed and
aligned;
the V-belt tension checked;
the safety devices checked.
