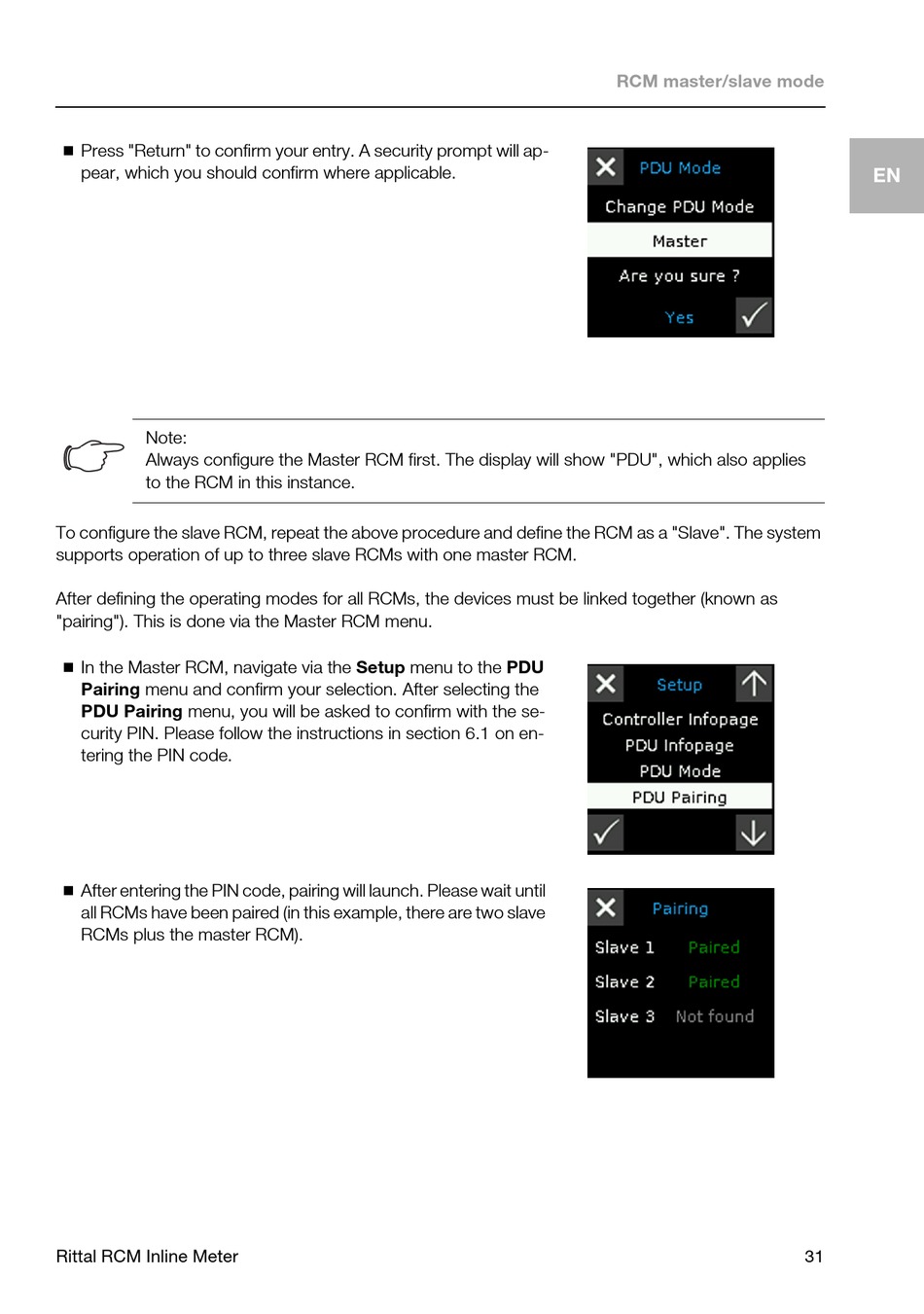

Press "Return" to confirm your entry. A security prompt will ap-
pear, which you should confirm where applicable.
Note:
Always configure the Master RCM first. The display will show "PDU", which also applies
to the RCM in this instance.
To configure the slave RCM, repeat the above procedure and define the RCM as a "Slave". The system
supports operation of up to three slave RCMs with one master RCM.
After defining the operating modes for all RCMs, the devices must be linked together (known as
"pairing"). This is done via the Master RCM menu.


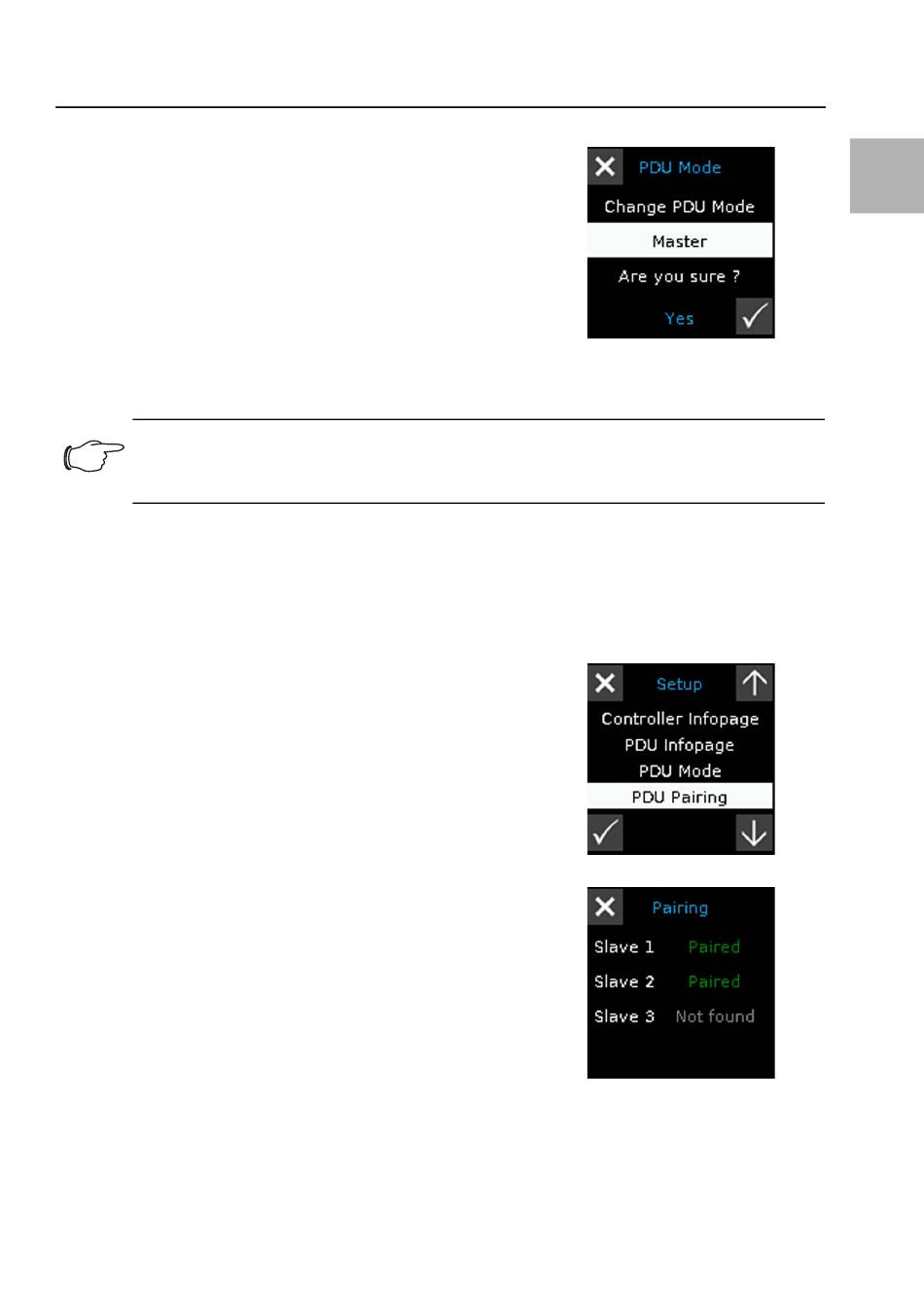

In the Master RCM, navigate via the Setup menu to the PDU
Pairing menu and confirm your selection. After selecting the
PDU Pairing menu, you will be asked to confirm with the se-
curity PIN. Please follow the instructions in section 6.1 on en-
tering the PIN code.

After entering the PIN code, pairing will launch. Please wait until
all RCMs have been paired (in this example, there are two slave
RCMs plus the master RCM).
Rittal RCM Inline Meter
RCM master/slave mode
