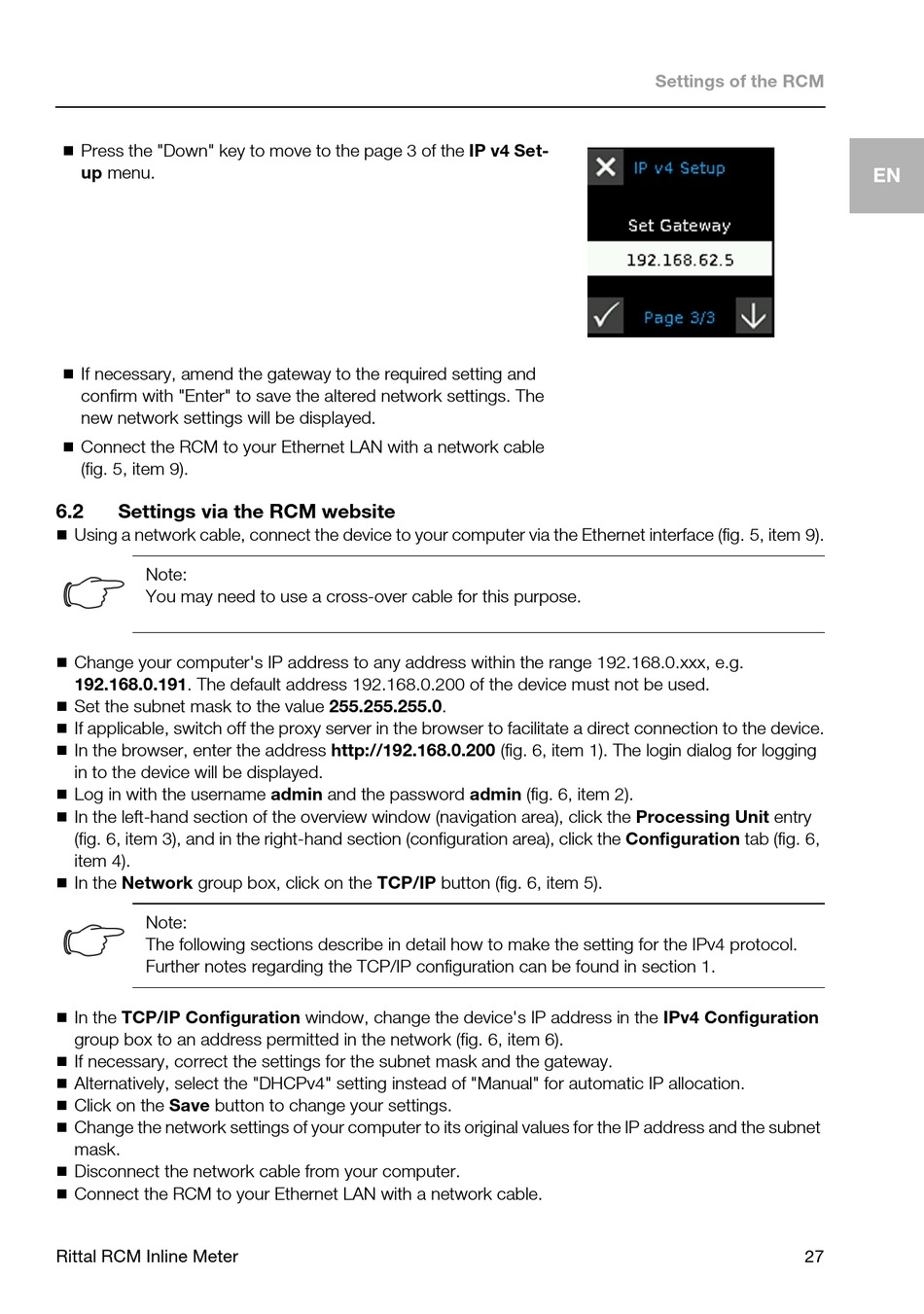

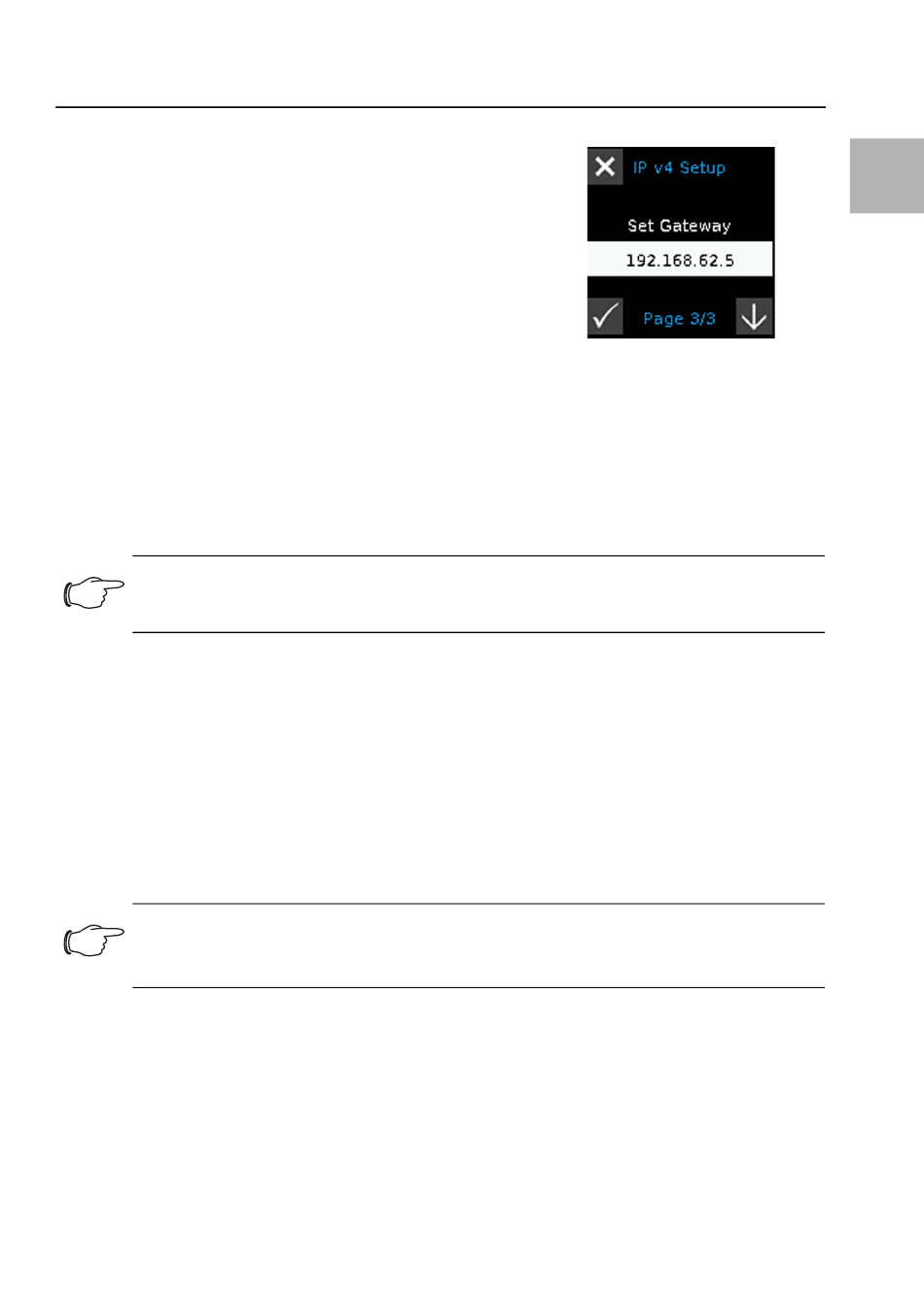

Press the "Down" key to move to the page 3 of the IP v4 Set-
up menu.

If necessary, amend the gateway to the required setting and
confirm with "Enter" to save the altered network settings. The
new network settings will be displayed.

Connect the RCM to your Ethernet LAN with a network cable
(fig. 5, item 9).
6.2 Settings via the RCM website

Using a network cable, connect the device to your computer via the Ethernet interface (fig. 5, item 9).
Note:
You may need to use a cross-over cable for this purpose.

Change your computer's IP address to any address within the range 192.168.0.xxx, e.g.
192.168.0.191. The default address 192.168.0.200 of the device must not be used.

Set the subnet mask to the value 255.255.255.0.

If applicable, switch off the proxy server in the browser to facilitate a direct connection to the device.

In the browser, enter the address http://192.168.0.200 (fig. 6, item 1). The login dialog for logging
in to the device will be displayed.

Log in with the username admin and the password admin (fig. 6, item 2).

In the left-hand section of the overview window (navigation area), click the Processing Unit entry
(fig. 6, item 3), and in the right-hand section (configuration area), click the Configuration tab (fig. 6,
item 4).

In the Network group box, click on the TCP/IP button (fig. 6, item 5).
Note:
The following sections describe in detail how to make the setting for the IPv4 protocol.
Further notes regarding the TCP/IP configuration can be found in section 1.

In the TCP/IP Configuration window, change the device's IP address in the IPv4 Configuration
group box to an address permitted in the network (fig. 6, item 6).

If necessary, correct the settings for the subnet mask and the gateway.

Alternatively, select the "DHCPv4" setting instead of "Manual" for automatic IP allocation.

Click on the Save button to change your settings.

Change the network settings of your computer to its original values for the IP address and the subnet
mask.

Disconnect the network cable from your computer.

Connect the RCM to your Ethernet LAN with a network cable.
