ASP48
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
SINGOLA ALIMENTAZIONE
Nella configurazione "singola alimentazione"
bisogna collegare il LOOP OUT di un alimenta-
tore del PSU2 al POWER IN del primo ASP48
della catena ed il LOOP RETURN dello stesso
alimentatore del PSU2 al POWER THRU dell'ul-
timo ASP48 della catena. Per ogni alimenta-
tore del PSU2 è possibile connettere una cate-
na di 6 ASP48, collegando ogni uscita POWER
THRU all'ingresso POWER IN del successivo dis-
positivo.
I vantaggi di questa configurazione sono nel
poter sfruttare entrambi gli alimentatori del
PSU2 per un massimo di 12 ASP48 (6 per
canale) e nel poter ovviare ad un eventuale
guasto di una connessione grazie all'alimen-
tazione fornita sia alla prima unità della cate-
na che all'ultima.
SINGLE POWER SUPPLY
IN
ASP48
ASP48
ASP48
ASP48
ASP48
ASP48
THRU
For further reference see manual
MAINS AC
AUDIO GND LIFT
FUSE
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
SINGLE POWER SUPPLY
Italiano

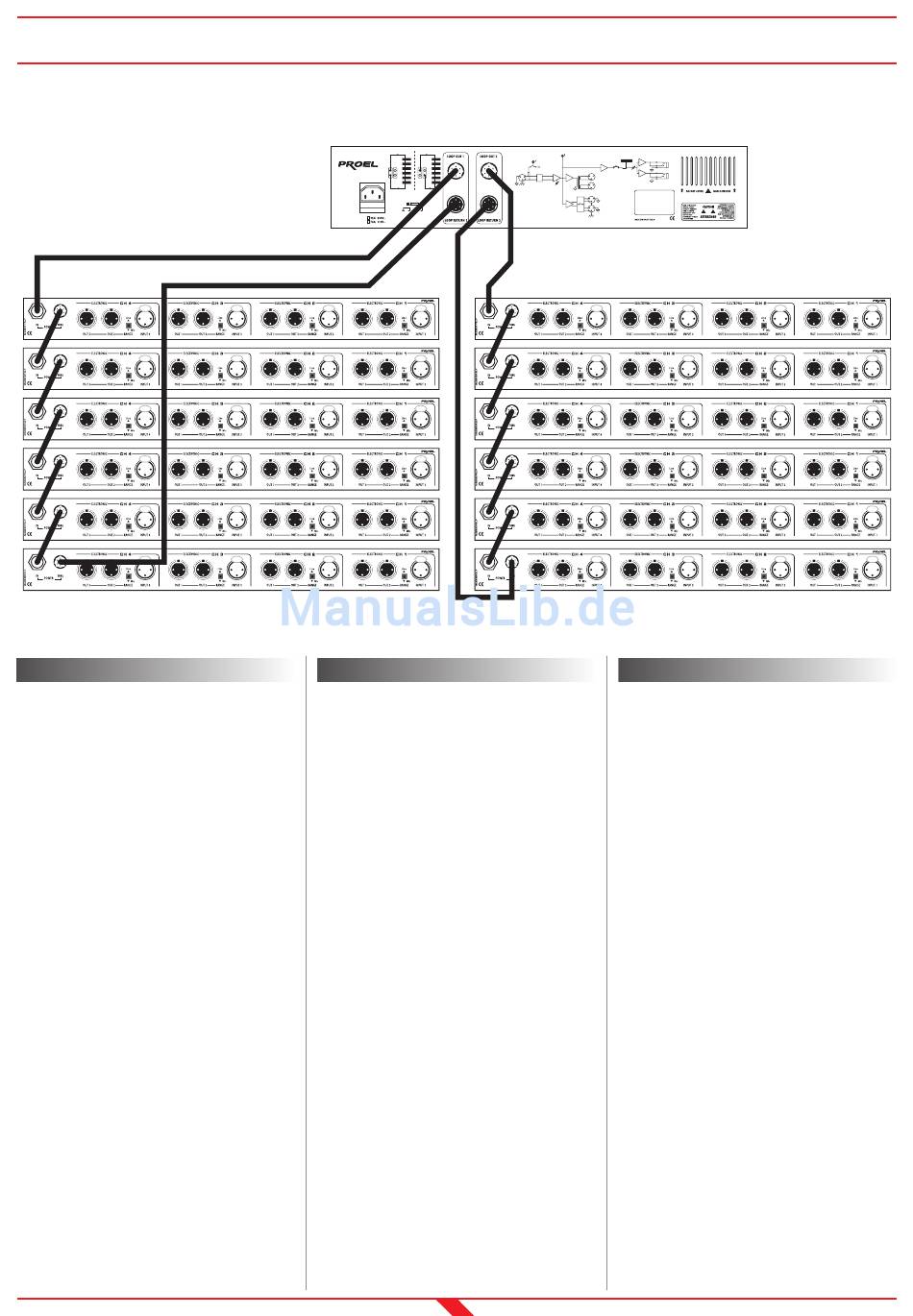

In the "Single Power Supply" configuration,
the LOOP OUT of one power supply of the PSU2
must be connected to the POWER IN of the
first ASP48 in the chain and the LOOP RETURN
of the same power supply to the POWER THRU
of the last ASP48 in the chain. For each power
supply of the PSU2, it is possible to connect
up to 6 ASP48, connecting the POWER THRU to
the POWER IN of each intermediary ASP48. The
advantages of this configuration are that a
total of 12 ASP48 units (6 units per each
power supply) can be powered by a single
PSU2, and that an eventual malfunctioning of
an intermediary connector is alleviated by the
fact that power arrives to the first and last
units in the chain.
DUAL POWER SUPPLY
CLIP
IN
ASP48
ASP48
+48V
ASP48
PHANTOM
ASP48
INPUT
PAD
ASP48
HA
BA
-20dB
ASP48
THRU
GAIN
MIC /
LINE
BA
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
PUSH
DC FUSES INSIDE - USE PSU2
POWER SUPPLY ONLY
English
10
CONFIGURAZIONE SINGOLA ALIMENTAZIONE
SINGLE POWER SUPPLY CONFIGURATION
EINZELSTROMVERSORGUNG KONFIGURATION
METER
PA
CUE
PHONES 1
BA
LEVEL
PA
PHONES 2
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
EINZELSTROMVERSORGUNG
In der "Einzelstromversorgungs"-Konfiguration
muss der LOOP OUT eines Stromversorgers der
PSU2 an den POWER IN des ersten ASP48 in der
Kette angeschlossen werden und der LOOP
RETURN desselben Stromversorgers an POWER
THRU des letzten ASP48 in der Kette. Für jede
Stromzufuhr der PSU2, ist es möglich bis zu 6
ASP48 anzuschließen, wobei der POWER THRU
mit dem POWER IN jedes dazwischenliegenden
ASP48 verbunden wird. Die Vorteile dieser
Konfiguration sind, dass insgesamt 12 ASP48
Einheiten (6 Einheiten pro Stromversorger)
von einer einzelnen PSU2 versorgt werden kön-
nen, und dass im Falle einer Störung eines
Zwischensteckers
abgeschwächt wird, da der Strom zur ersten
und letzten Einheit in der Kette gelangt.
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
PUSH
Deutsch
die
Auswirkung
