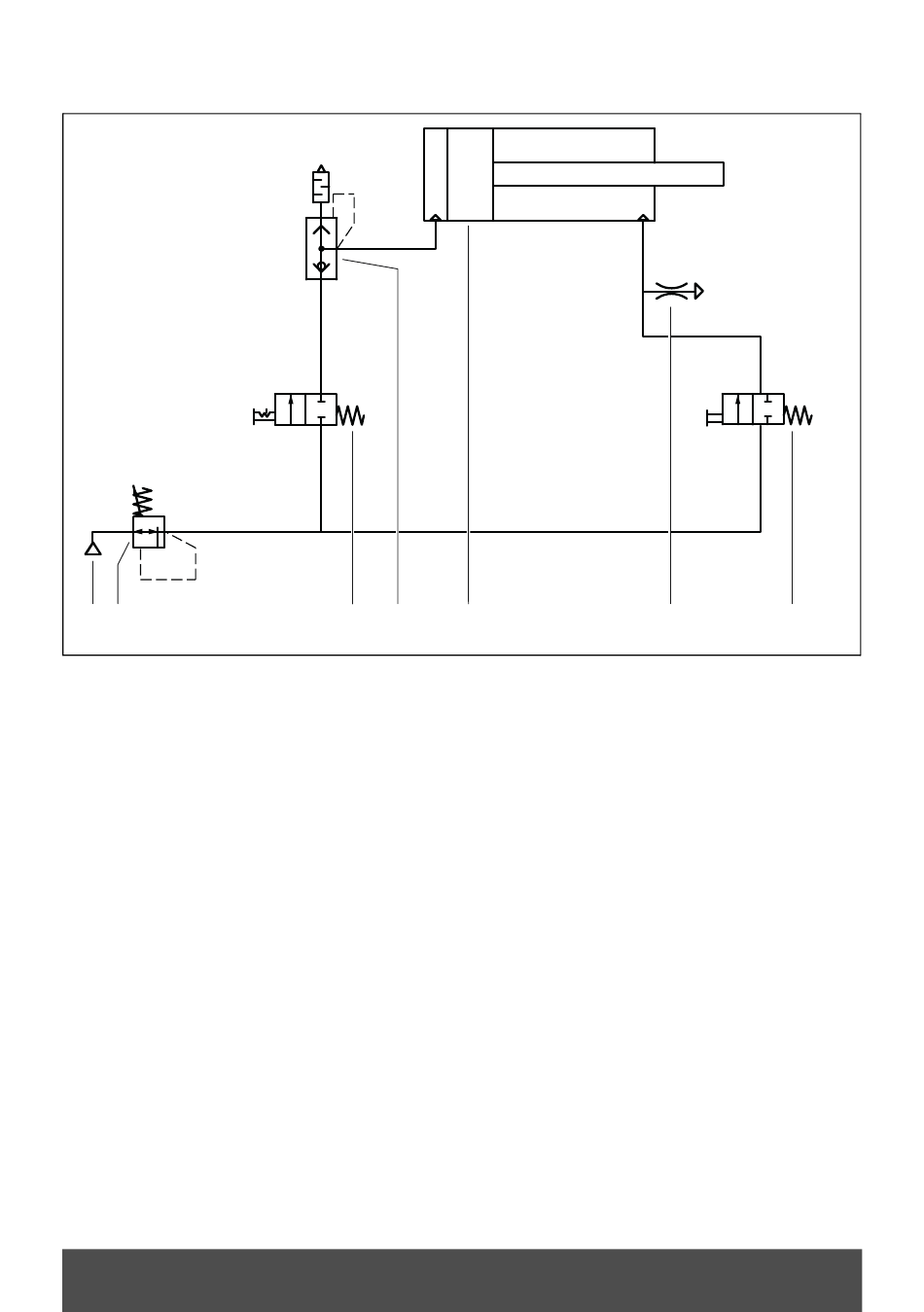

11) PNEUMATIC DIAGRAM

1 2
1 Compressed air supply 1000 kPa max.
2 Regulator valve 680 kPa
3 Push switch, cylinder forwards
4 Push switch, cylinder backwards
5 Quick exhaust with silencer (integrated into the cylinder)
6 Pneumatic Drive Unit
7 Leakage
Instruction handbook DP2X
Version 1.0 · 8.10.19
2
1
2
1
3 5 6
9 of 10
2
1
7 4
