System Components

Open box and remove the control unit, cables and packing material. Lift the antenna
straight up out of the box. Never place the system upside down!
Antenna unit
The elegant plastic housing will protecting the antenna
against outside weather conditions. Under the housing there
is a 38 cm high-performance antenna. The Auto Skew system
and the new technology of 0-90 ° elevation enables optimal
reception across Europe.
Control unit (IDU)
The control unit is used for satellite selection and control. It
is connected between the antenna and the set-top box and
supplied the antenna with electricity. After successful align-
ment, the device can be turned off.
Warning:
The control unit must be operated only on the selected antenna port. Only
this is provided for controlling. The second port is for use of an additional set-
top box or for an twin set-top box.
ENGLISH
04
With this metal eyelet, you can secure the
Campingman Portable against stealing.
Production change only starting in 2014!

Connection

Install the control unit and the set-top box is not inside the vehicle in the region of an
airbag. Maintain a careful installation of the cable in order to avoid short circuits. Pay
attention also to existing cables.

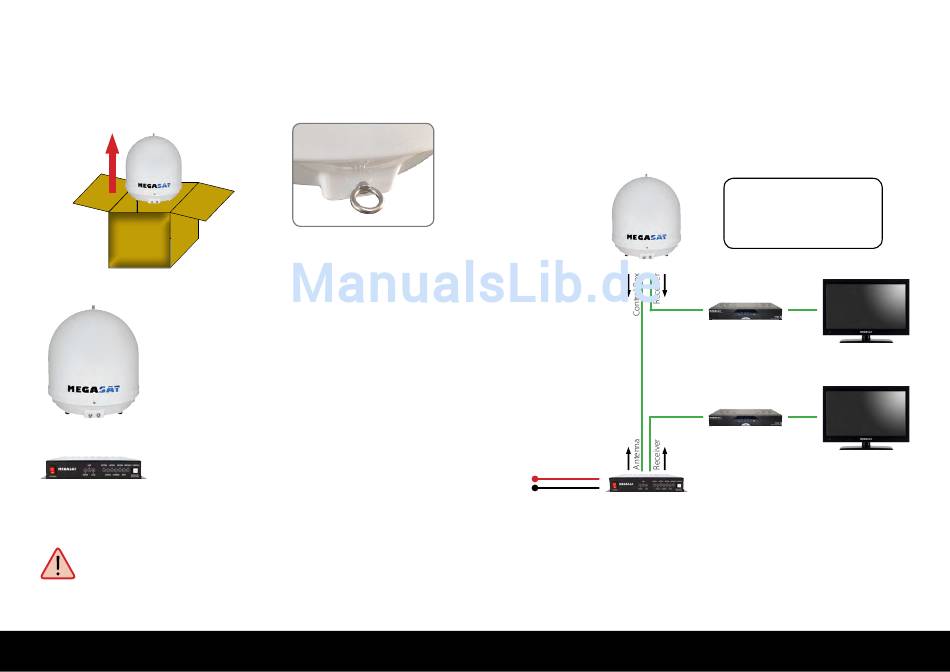

Connect the antenna as shown in the illustration below:
Campingman Portable
12~24 V DC 5 A
or with the optional
power supply
230 V AC / 12 V DC 5A
RED
(+)
( - )
BLACK
control unit
ENGLISH
Information:
The antenna does not need to
operate with two set-top
boxes mandatory!
set-top box
Television
set-top box
Television
