HDMA-220DONG
Order Number 06.9340
ELECTRONICS FOR SPECIALISTS
ELECTRONICS FOR SPECIALISTS
Wireless Transmission Set for
HDMI
Signals
TM
These instructions are intended for users
without any specific technical knowledge.
Please read the instructions carefully prior
to operation and keep them for later ref-
erence.

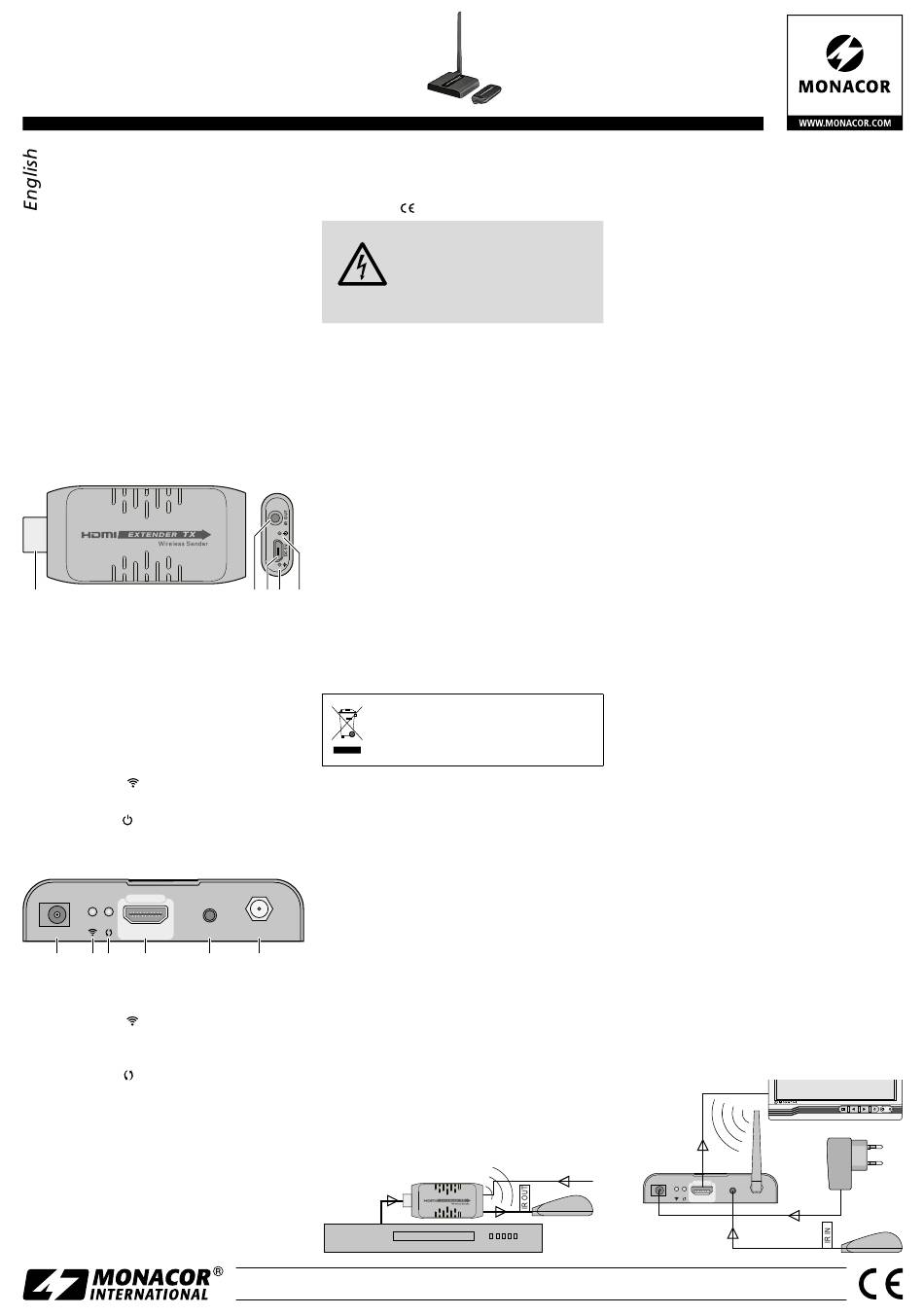

1 Overview
Scope of delivery
1 transmitter for HDMI signals
1 receiver for HDMI signals
1 transmitter for infrared signals
1 receiver for infrared signals
1 power supply unit (5 V) for the HDMI receiver
1 USB cable for power supply of the transmitter
HDMI transmitter
1
1 HDMI plug: Connect this plug to the output
jack of the HDMI signal source (e. g. laptop)
2 Connection IR OUT for the IR transmitter:
OUTPUT
Only required when an IR remote control is
used for the HDMI signal source
HDMI
DC 5V
3 Power supply connection DC 5 V: Using the
USB cable supplied, connect this jack to a
6
7 8
9
USB port of the signal source or to an appro-
priate power supply unit
4 LED indicator
: Will light up while signals
are being transmitted
5 LED indicator : Will light up when the trans-
1
mitter is switched on
HDMI receiver
OUTPUT
DC 5V
HDMI
6
7 8
9
6 Power supply jack DC 5 V: Connect the 5 V
power supply unit provided to this jack
7 LED indicator
: Will light up when the re-
ceiver is switched on; will flash while signals
are being transmitted
8 LED indicator : Will light up when the wire-
less connection has been established
9 HDMI signal output: Connect this output to
the HDMI signal input of a player (e. g. video
projector)
10 Connection IR IN for the IR receiver:
Only required when an IR remote control is
used for the HDMI signal source
11 Connection for the antenna provided
ELECTRONICS FOR SPECIALISTS
2 Safety Notes
The wireless transmission set corresponds to all
relevant directives of the EU and is therefore
marked with
WARNING The power supply unit for the
•
The set is suitable for indoor use only. Protect it
against dripping water, splash water and high
air humidity. The admissible ambient temper-
ature range is 0 – 40 °C.
•
Immediately disconnect the power supply unit
from the mains socket
1. if the power supply unit or the receiver is
visibly damaged,
2. if a defect might have occurred after the unit
was dropped or suffered a similar accident,
3. if malfunctions occur.
In any case the units must be repaired by
skilled personnel.
•
For cleaning only use a dry, soft cloth; never
use water or chemicals.
•
2 3 4 5
No guarantee claims for the transmission set
and no liability for any resulting personal dam-
age or material damage will be accepted if the
set is used for other purposes than originally
intended, if it is not correctly connected or if it
is not repaired in an expert way.
IR IN
RX
If the transmission set is to be put out of
operation definitively, take it to a local
10
11
recycling plant for a disposal which is
not harmful to the environment.
3 Applications
The transmission set is designed for easy and
2 3 4 5
comfortable wireless transmission of HDMI sig-
nals and can, for example, be used to transmit
reproductions on a laptop to a video projector or
movies on a DVD player to a TV set. The trans-
mission range depends on local conditions and
may reach 20 – 30 m.
IR IN
RX
3.1 Conformity and approval
10
11
Herewith, MONACOR INTERNATIONAL declare
that the transmission set HDMA-220DONG
complies with the directive 2014/53/EU. The EU
declaration of conformity is available on the In-
ternet:
www.monacor.com
The transmission set is licence-free and gen-
erally approved for operation in EU and EFTA
countries.
DVD
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
Copyright
by MONACOR INTERNATIONAL. All rights reserved.
©
ELECTRONICS FOR SPECIALISTS
.
receiver uses dangerous mains
voltage. Leave servicing to skilled
personnel only. Inexpert handling
of the unit may result in electric
shock.
HDMI
IR
ELECTRONICS FOR SPECIALISTS
ELECTRONICS
4 Operation
A connection example with a remote-controlled
DVD player as signal source and a TV set as
player can be found below. If the signal source
is not operated by means of an IR remote con-
trol, the IR transmitter and the IR receiver are
not required.
1) Connect the HDMI transmitter to the HDMI
output jack of the signal source.
2) To supply the transmitter with power, connect
the jack DC 5 V (3) to a USB port at the signal
source, using the USB cable supplied. If the
signal source does not provide any USB port,
connect an appropriate power supply unit
(e. g. PSS-1005USB) to the jack DC 5 V.
3) If an IR remote control is used for the signal
source, connect the IR receiver (marked with
IR OUT) to the jack IR OUT (2).
4) Insert the antenna supplied into the jack
RX (11) of the HDMI receiver and tighten it.
5) Use an HDMI cable to connect the jack OUT-
PUT (9) to the HDMI input of the player.
6) If an IR remote control is used for the signal
source, connect the IR transmitter (marked
with IR IN) to the jack IR IN (10).
7) Connect the power supply unit provided to
the jack DC 5 V (6) and to a mains socket
(230 V/ 50 Hz). The LED indicators (4, 5, 7, 8)
will light up or flash as described in chapter 1
"Overview".
5 Specifications
Radio frequency: � � � � � � � � � 5 GHz
Range: � � � � � � � � � � � � � � � � 20 – 30 m
Resolution: � � � � � � � � � � � � � 1080p, 1080i, 720p,
Audio transmission: � � � � � � � stereo
IR signal transmission: � � � � � 20 – 60 kHz
Power supply
HDMI transmitter: � � � � � � � ⎓ 5 V via the micro USB
HDMI receiver: � � � � � � � � � ⎓ 5 V via PSU supplied,
Ambient temperature: � � � � 0 – 40 °C
Dimensions (B × H × D), weight
HDMI transmitter: � � � � � � � 39 × 15 × 90 mm, 30 g
HDMI receiver: � � � � � � � � � 95 × 21 × 65 mm, 210 g
Subject to technical modification.
HDMI
5 V
OUTPUT
DC 5 V
HDMI
IR IN
IR
A-1935.99.01.10.2018
480p, 480i
port
connected to 230 V/ 50 Hz
230 V/50 Hz
RX
