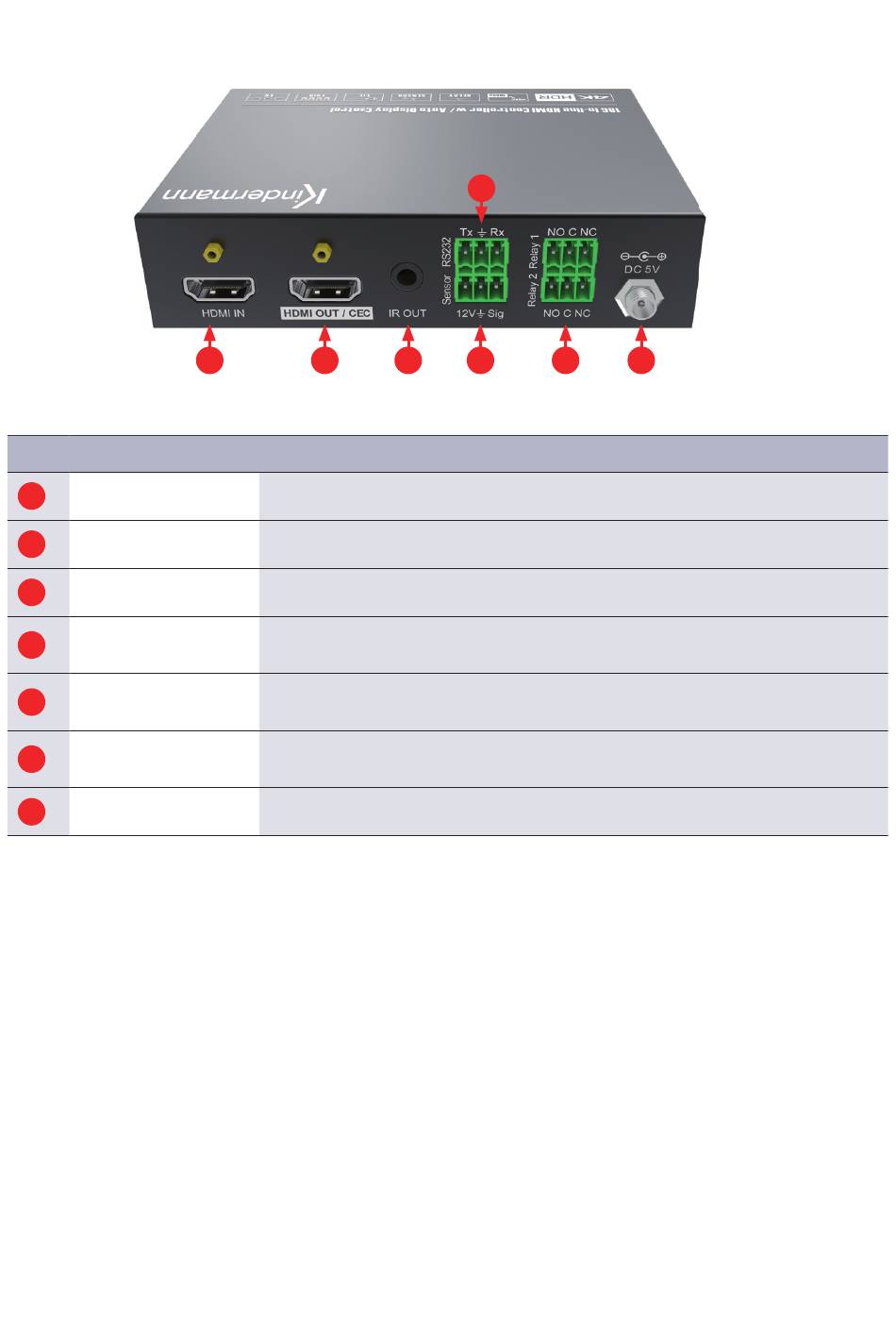

4.2 Rear panel

No. Name
1 HDMI IN
2 HDMI OUT/CEC
3 IR OUT
4 RS232
5 Sensor
6 Relay 1+2
7
DC 5V
23
1 2
Description
Type-A female HDMI input port to connect HDMI source device.
Type-A female HDMI output port to connect HDMI display, supports CEC
3.5 mm mini jack to connect the IR emitter to send IR signal.
3-pin terminal block to connect the RS232 control device for programming
(e. g. PC) or a device (e. g. projector) to be controlled by RS232 commands.
3-pin terminal block to connect external sensors, switches, etc. (accessories).
Two 3-pin terminal blocks to connect projection screen to be controlled by
relays. (NO: normaly Open, C: Common, NC: normaly Close).
DC connector for the power adapter connection.
