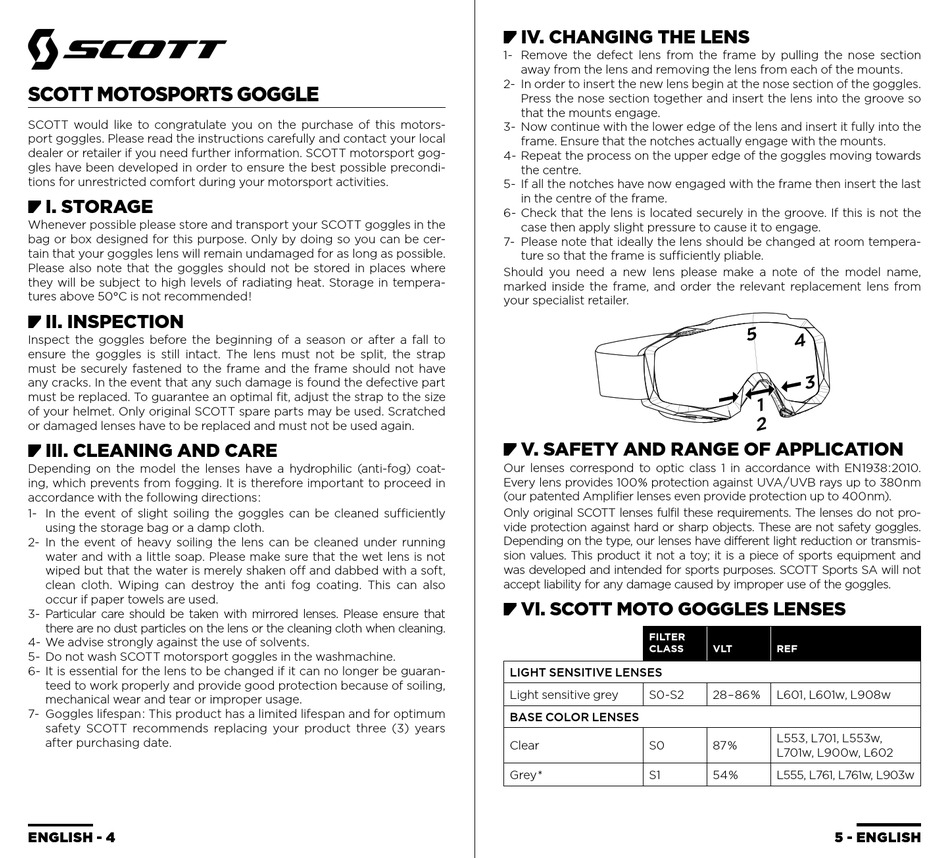

Scott PRIMAL Bedienungsanleitung Seite 3

SCOTT MOTOSPORTS GOGGLE
SCOTT would like to congratulate you on the purchase of this motors-
port goggles. Please read the instructions carefully and contact your local
dealer or retailer if you need further information. SCOTT motorsport gog-
gles have been developed in order to ensure the best possible precondi-
tions for unrestricted comfort during your motorsport activities.
• I. STORAGE
Whenever possible please store and transport your SCOTT goggles in the
bag or box designed for this purpose. Only by doing so you can be cer-
tain that your goggles lens will remain undamaged for as long as possible.
Please also note that the goggles should not be stored in places where
they will be subject to high levels of radiating heat. Storage in tempera-
tures above 50°C is not recommended !
• II. INSPECTION
Inspect the goggles before the beginning of a season or after a fall to
ensure the goggles is still intact. The lens must not be split, the strap
must be securely fastened to the frame and the frame should not have
any cracks. In the event that any such damage is found the defective part
must be replaced. To guarantee an optimal fit, adjust the strap to the size
of your helmet. Only original SCOTT spare parts may be used. Scratched
or damaged lenses have to be replaced and must not be used again.
• III. CLEANING AND CARE
Depending on the model the lenses have a hydrophilic (anti-fog) coat-
ing, which prevents from fogging. It is therefore important to proceed in
accordance with the following directions :
1- In the event of slight soiling the goggles can be cleaned sufficiently
using the storage bag or a damp cloth.
2- In the event of heavy soiling the lens can be cleaned under running
water and with a little soap. Please make sure that the wet lens is not
wiped but that the water is merely shaken off and dabbed with a soft,
clean cloth. Wiping can destroy the anti fog coating. This can also
occur if paper towels are used.
3- Particular care should be taken with mirrored lenses. Please ensure that
there are no dust particles on the lens or the cleaning cloth when cleaning.
4- We advise strongly against the use of solvents.
5- Do not wash SCOTT motorsport goggles in the washmachine.
6- It is essential for the lens to be changed if it can no longer be guaran-
teed to work properly and provide good protection because of soiling,
mechanical wear and tear or improper usage.
7- Goggles lifespan : This product has a limited lifespan and for optimum
safety SCOTT recommends replacing your product three (3) years
after purchasing date.
ENGLISH - 4 ENGLISH - 4
• IV. CHANGING THE LENS
1- Remove the defect lens from the frame by pulling the nose section
away from the lens and removing the lens from each of the mounts.
2- In order to insert the new lens begin at the nose section of the goggles.
Press the nose section together and insert the lens into the groove so
that the mounts engage.
3- Now continue with the lower edge of the lens and insert it fully into the
frame. Ensure that the notches actually engage with the mounts.
4- Repeat the process on the upper edge of the goggles moving towards
the centre.
5- If all the notches have now engaged with the frame then insert the last
in the centre of the frame.
6- Check that the lens is located securely in the groove. If this is not the
case then apply slight pressure to cause it to engage.
7- Please note that ideally the lens should be changed at room tempera-
ture so that the frame is sufficiently pliable.
Should you need a new lens please make a note of the model name,
marked inside the frame, and order the relevant replacement lens from
your specialist retailer.
• V. SAFETY AND RANGE OF APPLICATION
Our lenses correspond to optic class 1 in accordance with EN 1 938 : 2 010.
Every lens provides 100 % protection against UVA / U VB rays up to 380 n m
(our patented Amplifier lenses even provide protection up to 400 n m).
Only original SCOTT lenses fulfil these requirements. The lenses do not pro-
vide protection against hard or sharp objects. These are not safety goggles.
Depending on the type, our lenses have different light reduction or transmis-
sion values. This product it not a toy; it is a piece of sports equipment and
was developed and intended for sports purposes. SCOTT Sports SA will not
accept liability for any damage caused by improper use of the goggles.
• VI. SCOTT MOTO GOGGLES LENSES
FILTER
CLASS
LIGHT SENSITIVE LENSES
Light sensitive grey S0-S2
BASE COLOR LENSES
Clear S0
Grey * S1
VLT REF
28 – 8 6 % L601, L601w, L908w
L553, L701, L553w,
87 %
L701w, L900w, L602
54 % L555, L761, L761w, L903w
5 - ENGLISH 5 - ENGLISH
