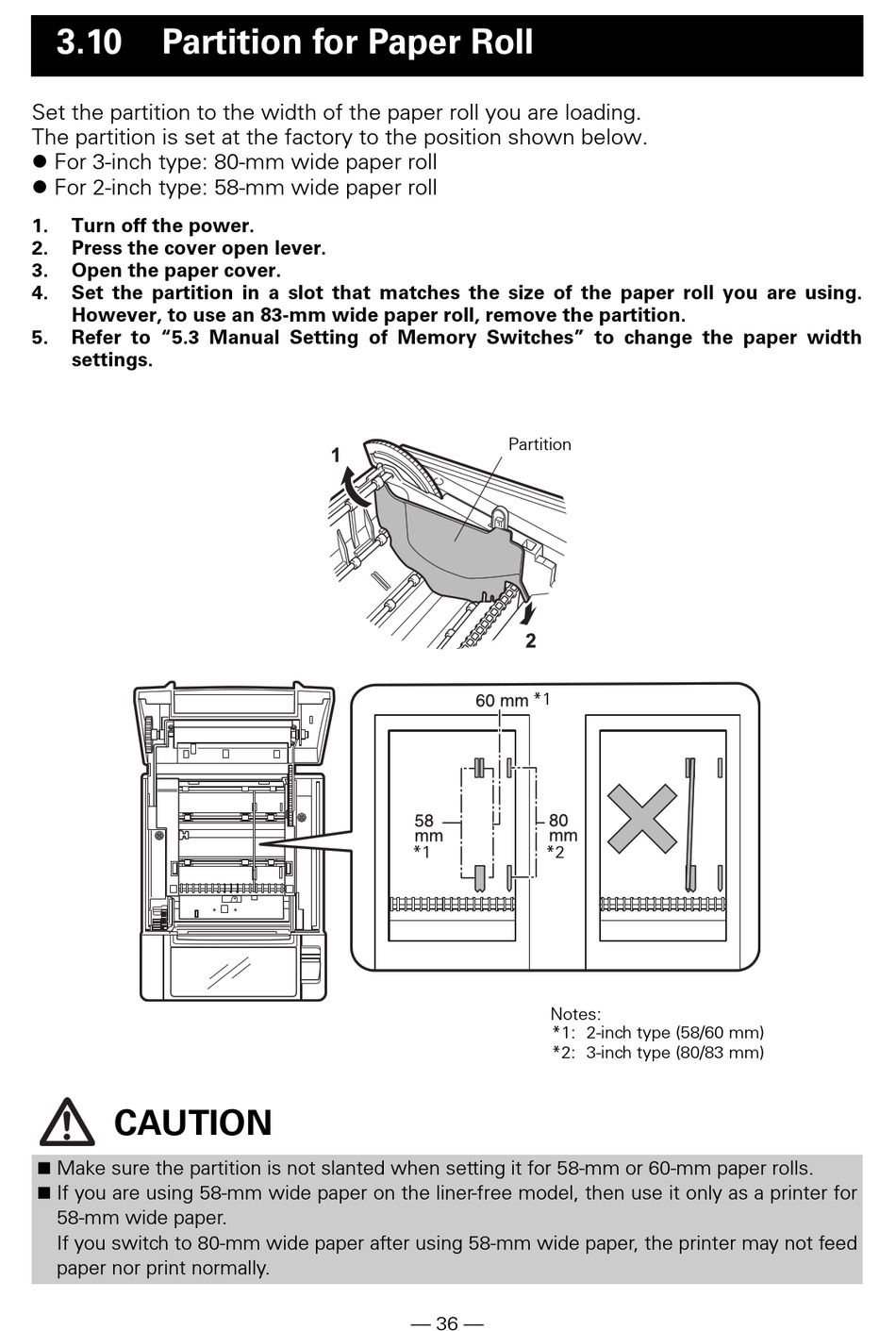

3.10

Partition for Paper Roll

Set the partition to the width of the paper roll you are loading.
The partition is set at the factory to the position shown below.
 For 3-inch type: 80-mm wide paper roll
 For 2-inch type: 58-mm wide paper roll
1. Turn off the power.
2. Press the cover open lever.
3. Open the paper cover.
4. Set the partition in a slot that matches the size of the paper roll you are using.
However, to use an 83-mm wide paper roll, remove the partition.
5. Refer to "5.3 Manual Setting of Memory Switches" to change the paper width
settings.
CAUTION
 Make sure the partition is not slanted when setting it for 58-mm or 60-mm paper rolls.
 If you are using 58-mm wide paper on the liner-free model, then use it only as a printer for
58-mm wide paper.
If you switch to 80-mm wide paper after using 58-mm wide paper, the printer may not feed
paper nor print normally.
Partition
*1
*2
*1
Notes:
*1: 2-inch type (58/60 mm)
*2: 3-inch type (80/83 mm)
— 36 —
