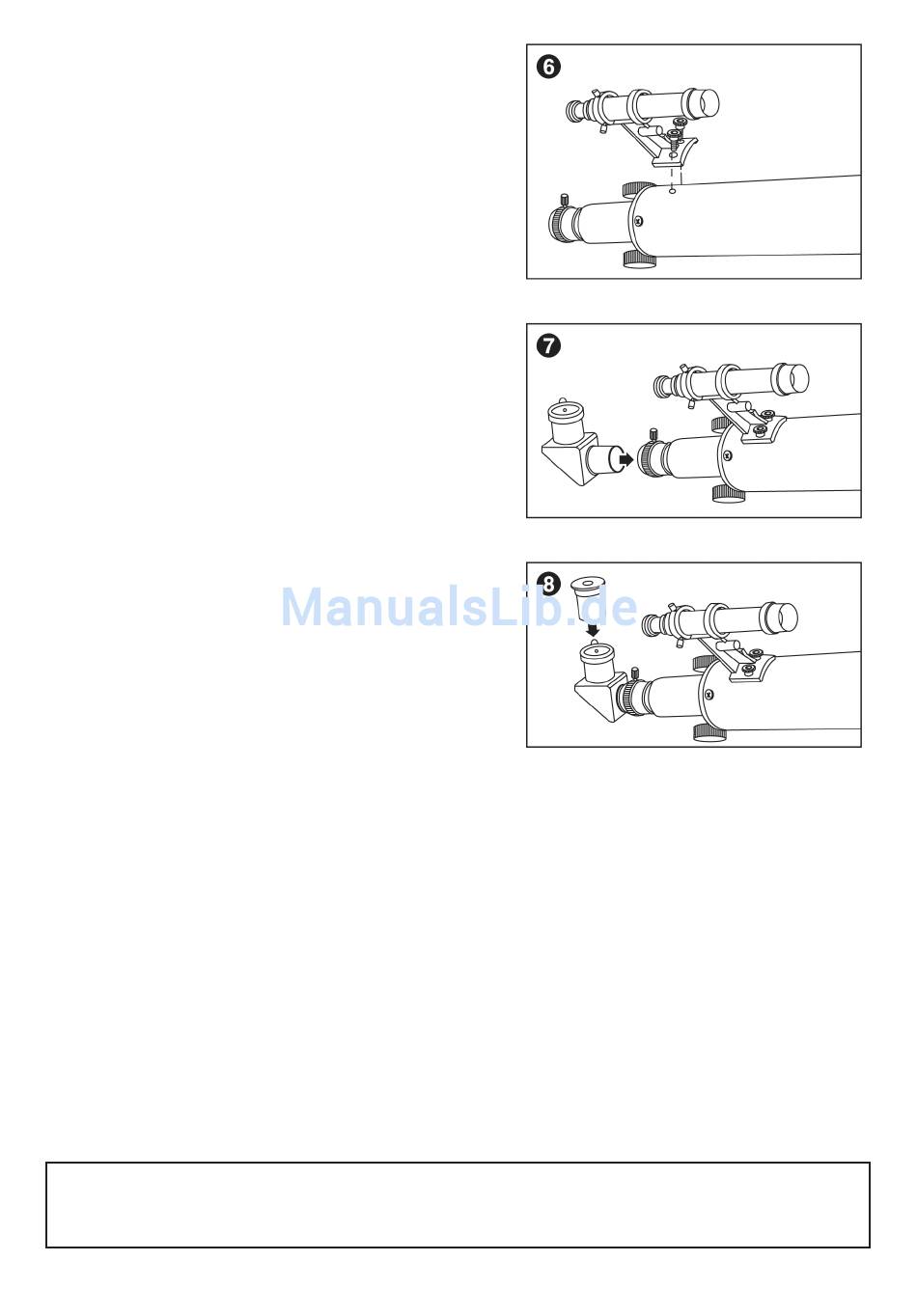

6. R emove the finder scope (F) with the bracket
for the finder scope (E) from the packaging.
Then unscrew the two knurled clamping screw
from the telescope tube (G). Place the finder
scope on to the telescope tube, such that the
drillholes in the base of the finder scope over-
lap with the open threaded drillholes. Insert
the two knurled clamping screws and tighten
these. (Fig. 6)
7. I nsert the deflection mirror (C) in den tube drive
for setting the sharpness (B). Fit the deflection
mirror into the tube with the appropriate locking
screws, and tighten firmly. (Fig. 7).
8. I nsert the eyepiece (D) into the deflection
mirror (C). The eyepiece is also fastened with a
small locking screw. (Fig. 8).
NOTE: This image appears upright, however
it is a mirror image. In order to obtain a true-
sided image, remove the deflection mirror and
insert the corrective lens.
9. S pecial accessories corrective lens and moon filter. Insert the corrective lens as described in
Point 8. The moon filter is screwed into the eyepiece thread.
1 0. B y using several lenses, the sharpness suffers. It is not recommended to use the deflection
mirror together with the erecting lens (quality loss). The highest resolution is achieved
when not using additional lenses. If the adjuster on the tube should not be sufficient, you
have additional adjustment options if you loosen the eyepiece locking screws, pull the
eyepiece out slightly and then tighten the screws again.
Your telescope is now fully assembled and ready to use. Use the star chart on the back of the
packaging in order to be able to optimally adjust your telescope and enjoy it.
CAREFUL: Observing the sun can result in permanent damage to the eyes. Never look at the sun
with the finder scope or even with the naked eye.
