INSTRUCTIONS FOR USE

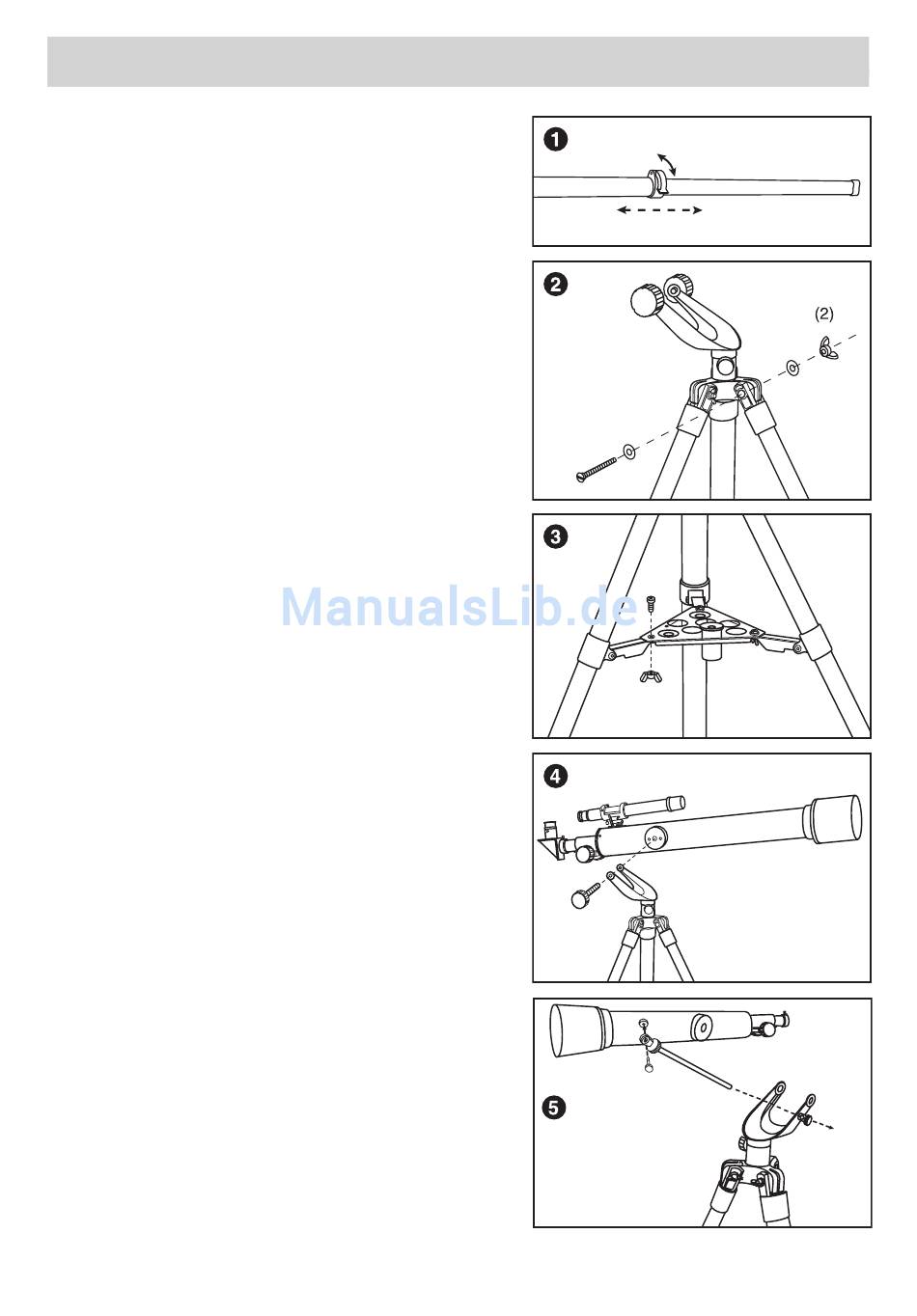

1 . P ull out the three tripod legs (P), and set
these securely in the required position with the
collapsible brackets (1). (Fig. 1).
NOTE: Before assembling the tripod legs, ensure
that the collapsible brackets on each tripod leg
are pointed inwards. The accessory tray (N) of
the tripod is attached to these brackets.
2 . F asten the three tripod legs with the wing nuts
and the threaded bolts (2) to the tripod head
(M). Before tightening the wing nuts, ensure
that you have inserted a washer. (Fig. 2).
3 . N ow attach the accessory tray (N) With the
supplied threaded bolts and wing nuts to the
brackets on the tripod legs. (Fig. 3).
NOTE: The tray bracket can be pushed in acces-
sory tray from below, after assembly. (Fig. 3).
4 . A fter you have tightened all of the screws, the
telescope tube can be inserted into the fork (K)
of the tripod head. Insert the telescope tube
(G) into the fork (K), and secure it by adjusting,
using the large fork-securing screw (J). (Fig. 4).
5 . I nsert the pin of the vernier vertical adjuster
(R) into the screw mounting on the azimuthal
mounting. Connect the other end of the pin
to the main body of the telescope. Fasten the
vernier adjuster by tightening the screw and
the rotary knob. (Fig. 5).
