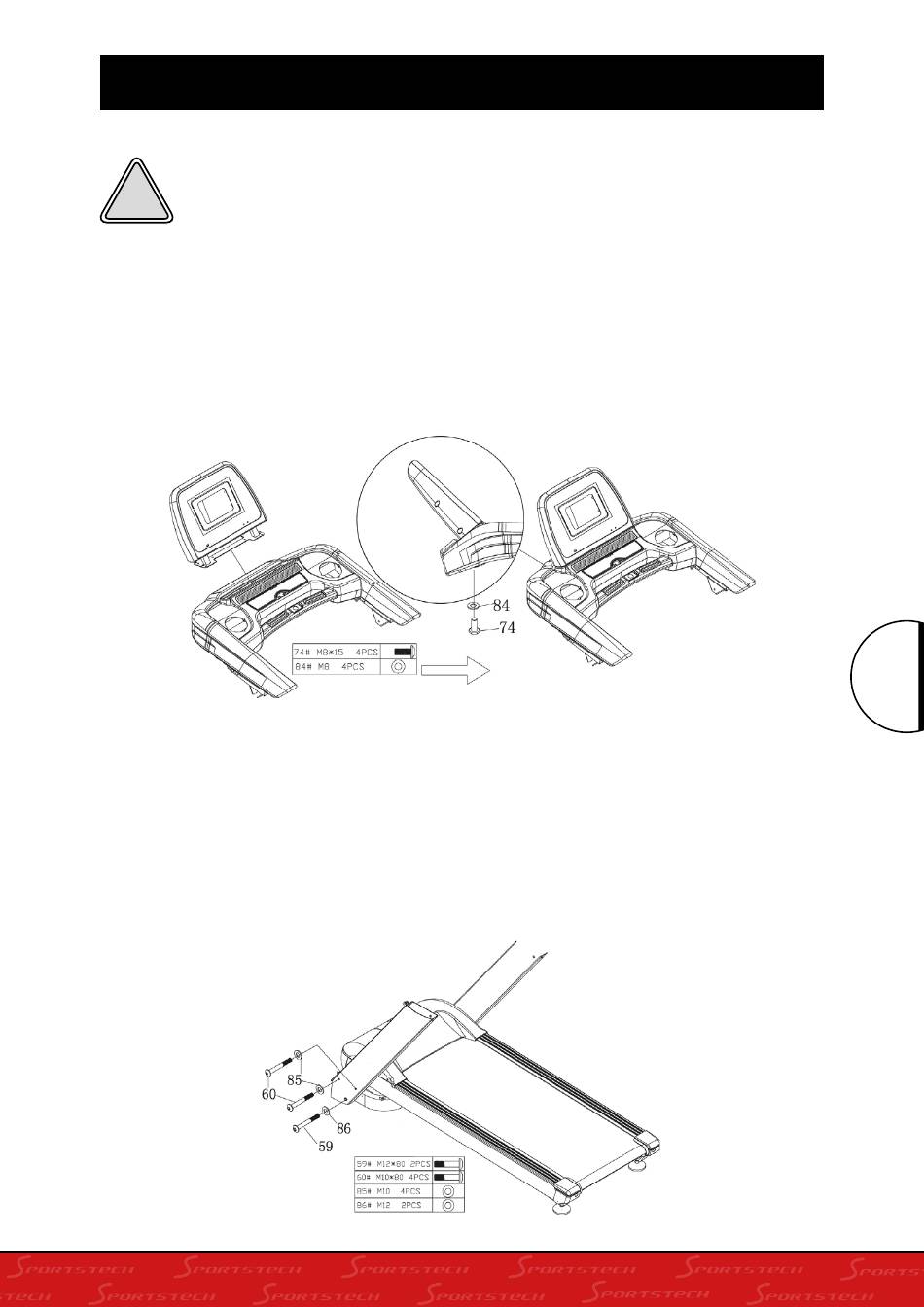

STEP 1: Installing the display frame
1. Carefully place the display on the lower console segment and connect the cable between the two components.
Make sure that you insert the cable into the motor unit during assembly and make sure the cable is not twisted or
bent.
2. Secure the display to the lower bracket segment with four screws # 74 and four washers # 84.
STEP 2: Assembling the left and right side panels
1. Fasten the left and right side panels with a screw # 59 and a washer # 86 and two screws # 60 and washers #
85 on both sides of the base.
