CONVERSION
INSTRUCTIONS
The conversion must be carried out
by a qualified fitter.
Before commencing the conversion:
• Disconnect the gas supply.
• Remove the front.
• Take out the glass pane by removing
the glass strip (4) at the top.This is
fitted with 4 self-tapping screws (5).

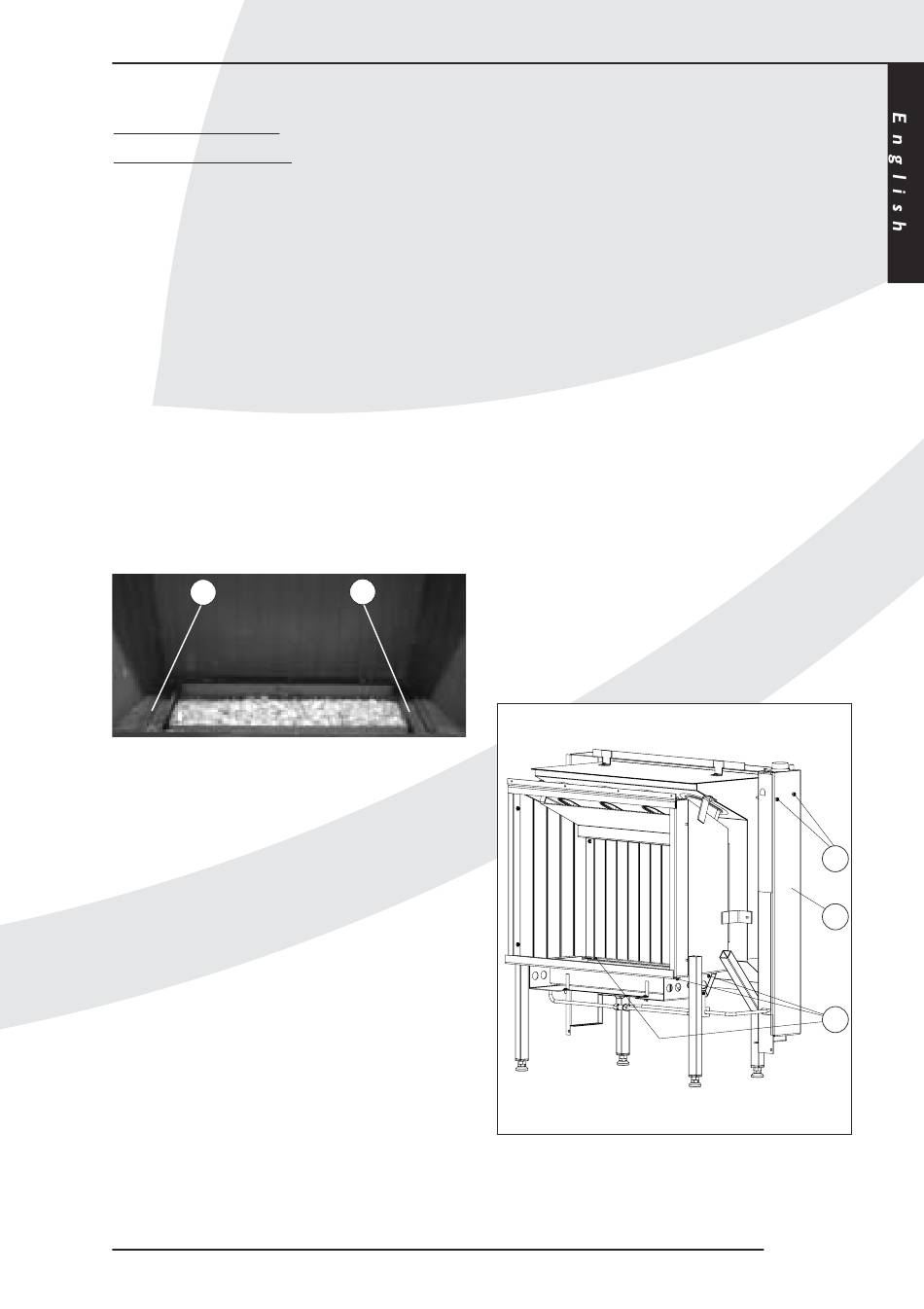

• Remove the vermiculite trays on the
left and right (A).
• Disconnect the gas supply pipe.
• Remove the cover (B) by unscrewing
the two bolts (C).
A
Replacing the components
Pilot-light jet
Unscrew the nut (E) at the end of
the pilot-light hose, pull the hose
with ring clamp our of the pilot-light
burner and remove the jet. Fit the
new jet and tighten the nut on the
pilot-light hose firmly.
Main burner jets
• Remove the burner tray (F).This is
fitted with 4 self-tapping screws (G).
• Using an open-ended spanner
remove the two main burner jets (H)
on the left and right, and fit the new
ones.
• Replace the burner tray.
A
9
CONVERSION INSTRUCTIONS
C
B
D
38C-1109
MAESTRO
