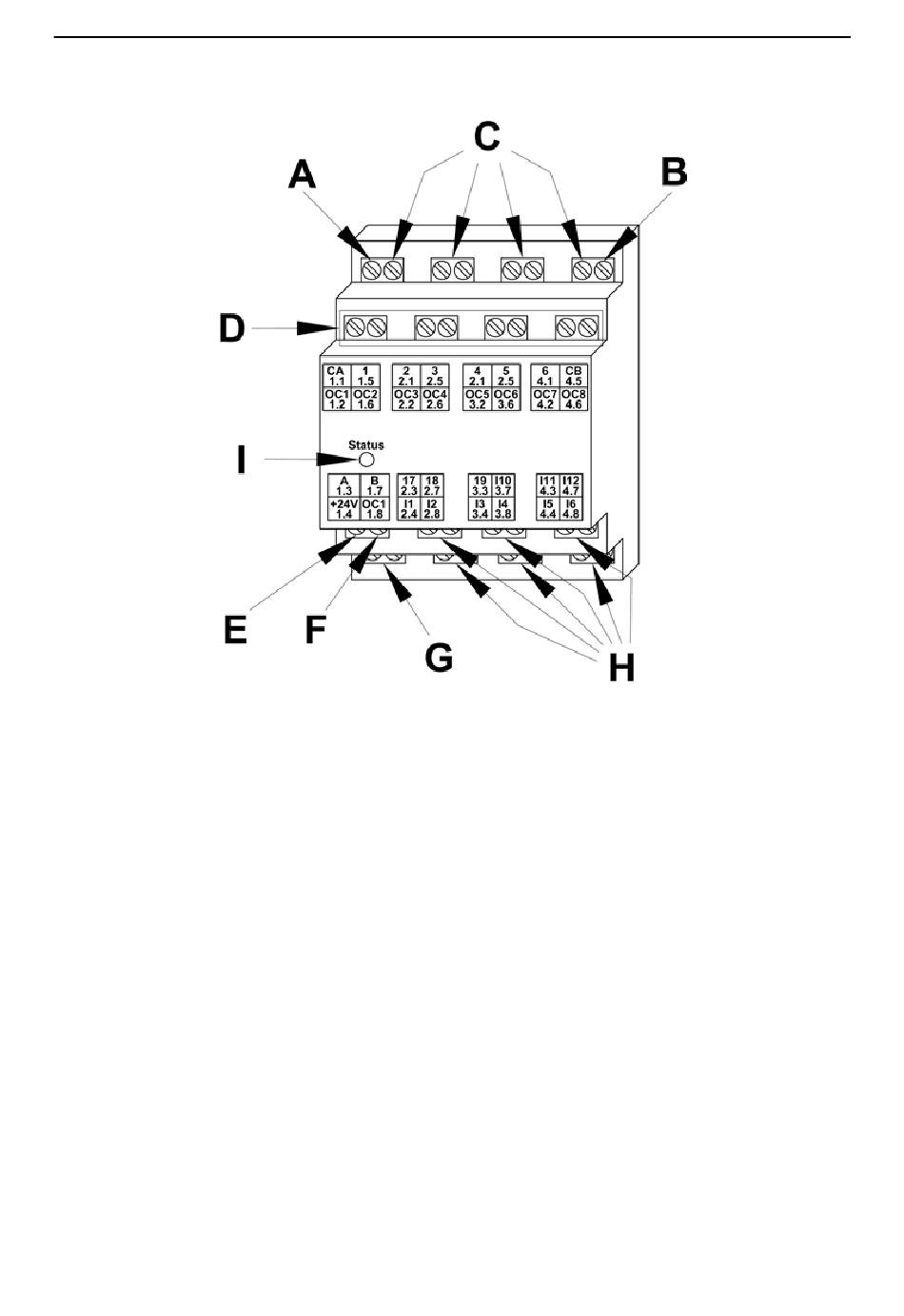

Function
(A)
Shared connection (common)
relay output 1,2,3
(B)
Shared connection (common)
relay output 4,5,6
(C)
Relay connections
(D) Open collector outputs
(E)
Bus A
(F) Bus B
(G)
Bus power supply
(H) Input terminals
(I)
Status LED
