INSTALLING THE PINS
PRODUCT CONCERNED : TRAIL ROC

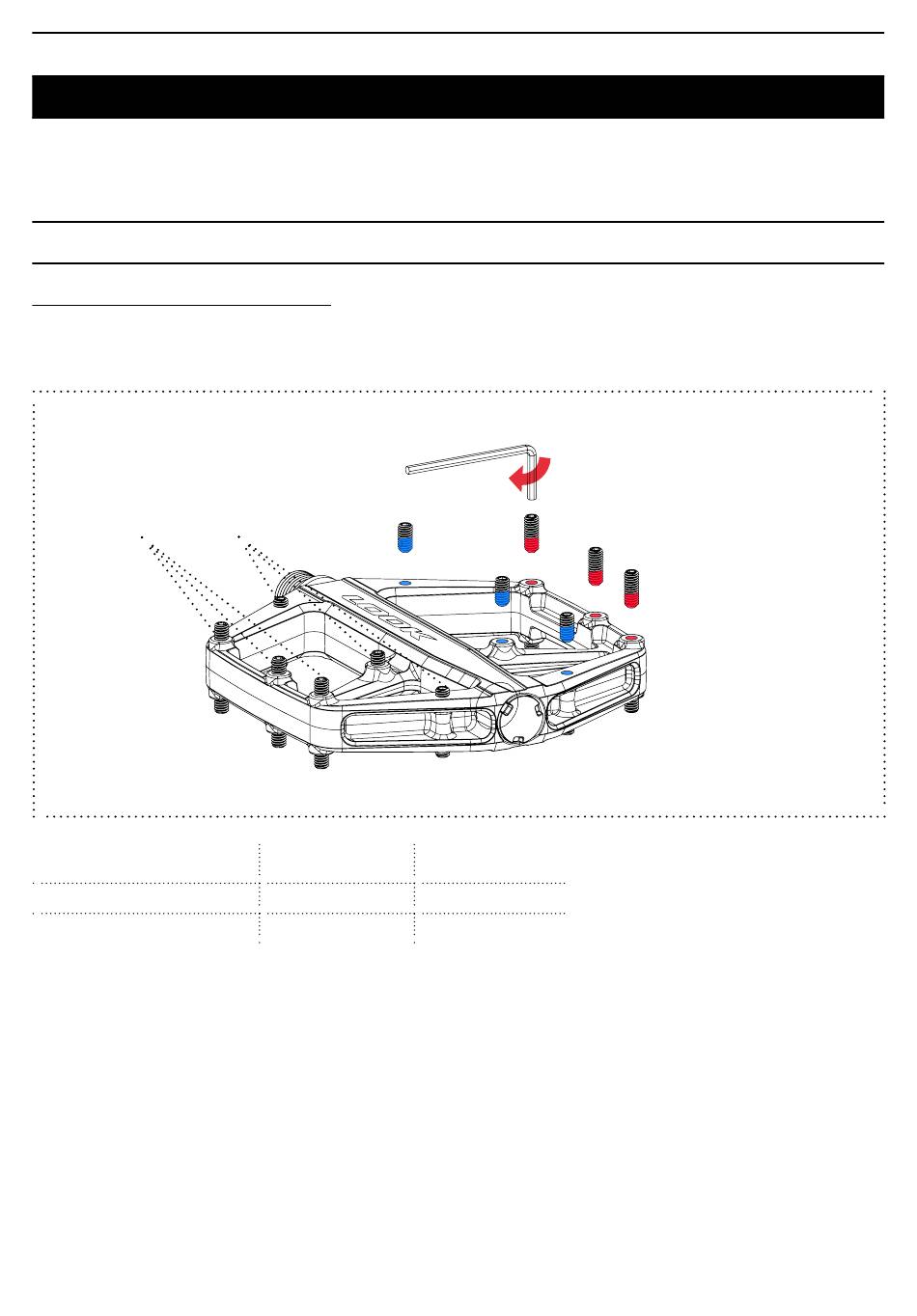

As shown below, TRAIL ROC pedals are equipped with different length pins to match the curvature of the
foot :
2 Nm
10 mm 8 mm
Pin length Position Threadlocker
8 mm center blue
10 mm front & rear red
If you need to remove or install the pins, use a 2mm Allen wrench and observe a maximum tightening
torque of 2 Nm. Before tightening / loosening, ensure the pin heads are clean.
