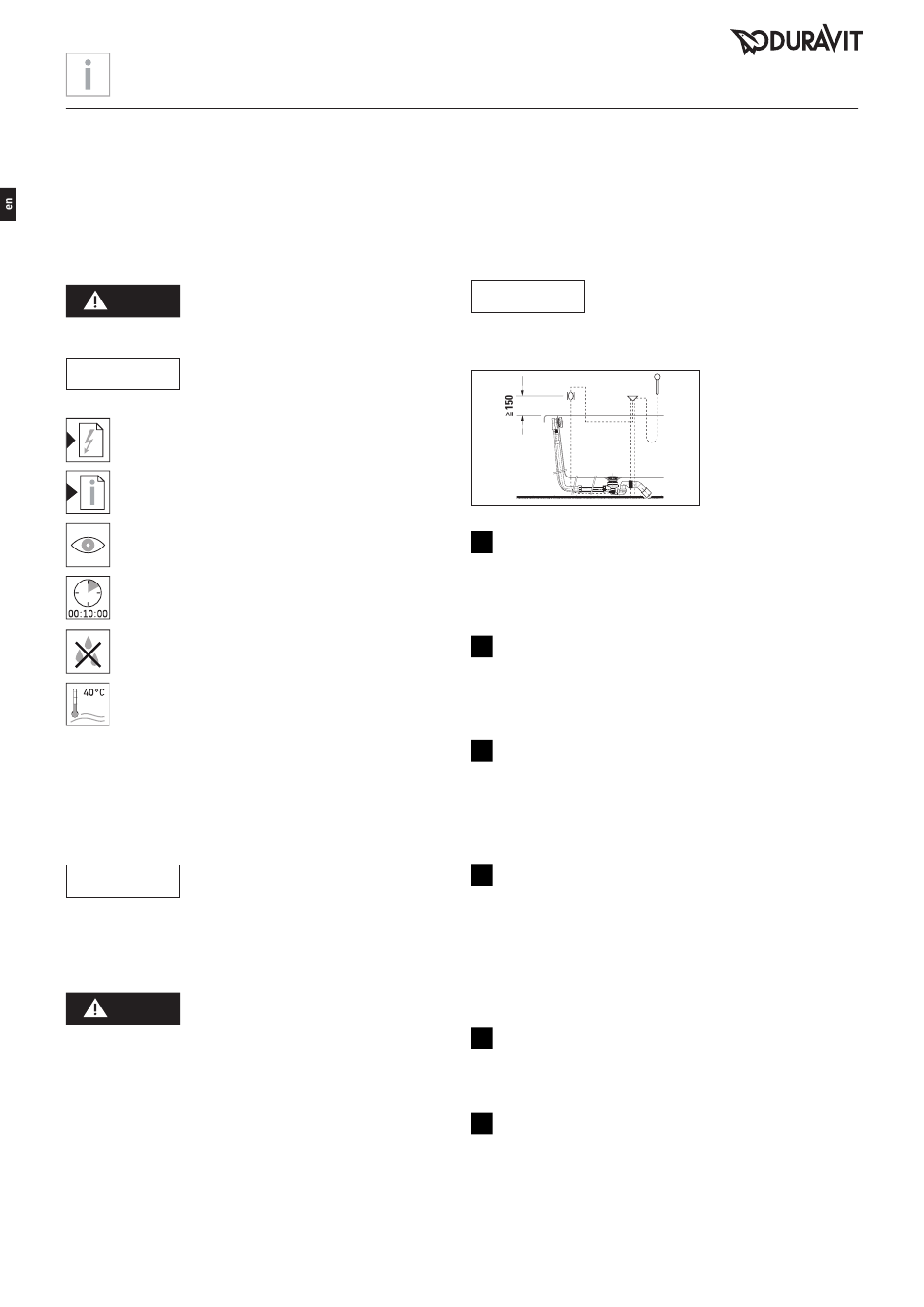

Important information
Mounting instructions information
These mounting instructions come as part of the Duravit
whirltub and should be read carefully prior to installation.
Explanation of the key words and symbols
Indicates a hazardous situation which,
DANGER
if not avoided, will result in death or
serious injury.
Is used to address practices not related
NOTICE
to physical injury.
Link to the Electrical installation section
Link to the mounting information in this section
Inspection (e.g. for scratches)
Indication of the length of time (e.g. 10 minutes)
Inspect to check for leaks and leak-tightness
Indication of the temperature
Target readership and qualifications
The whirltub must only be installed by trained plumbing
engineers. The electrical installation should only be carried
out by qualified electricians.
Risk of product and/or property
NOTICE
damage!
> Observe the local installation regulations and any
country-specific standards at all times.
Safety instructions
DANGER
Risk of fatal electric shock!
> Do NOT remove any whirltub components.
6
WH_M_Sundeck_withPanel_short-pillar/15.11.1

Mounting instructions

Please read pre-installation information sheets prior to
the installation. These are available to download on the
Internet at www.duravit.com.
If the tray has a base inlet, a pipe
NOTICE
interrupt must always be installed on-
Seitenansicht
site. (DIN EN 61770, DIN EN 1717)
Lateral view
> See installation diagram.
10
Installing the tap unit (Diagram 10)
> The installation of the tap unit is described
Technische Verbesserungen und optische VerŠnderungen an den abgebildeten Produkten behalten wir uns vor.
We reserve the right to make technical improvements and enhance the appearance of the products shown.
Datum Name Ma§stab Artikel-Nr. Zeichnung
000000
in separate instructions and these should be
Date Scale Model-No. Drawing
Gezeichnet
Name
08.10.13 Allgaier 1:20 Schematische Zeichnung mit Rohrunterbrecher
Drafted
GeprŸft
Bezeichnung Spezial Ab-und †berlaufgarnitur mit Bodenzulauf
08.10.13 WLT 1:10 X
Certified
Description fŸr Badewanne
observed during the installation.
GeŠndert
Special waste and overflow with base inlet
1:5
Modified for bathtubs
27
Observing the clearance (Diagram 27)
> Observe a uniform clearance of maximum 2 mm
between the decorative bathtub panel and the
bathtub.
33
Securing the safety strap correctly (Diagram 33)
> Clip the safety strap into the retaining bracket on
the pillar.
> Check that the tube sits firmly in the retaining
bracket.
38
Checking the whirl system (Diagram 37)
> Switch on the whirl system for 10 minutes:
run this through once completely in the case of
circuits with different levels of intensity.
> Leave the water in the bathtub and wait 10 minutes.
> Check to make sure that it is leak-tight.
> If adjustments are required, repeat the check.
40
Observing the sealing time! (Diagram 40)
> Mount the pillar immediately after attaching the
sealing strip to guarantee that it is leak-tight.
42
Taking maintenance into account! (Diagram 42)
> The bathtub panel must be accessible and
removable for maintenance.
