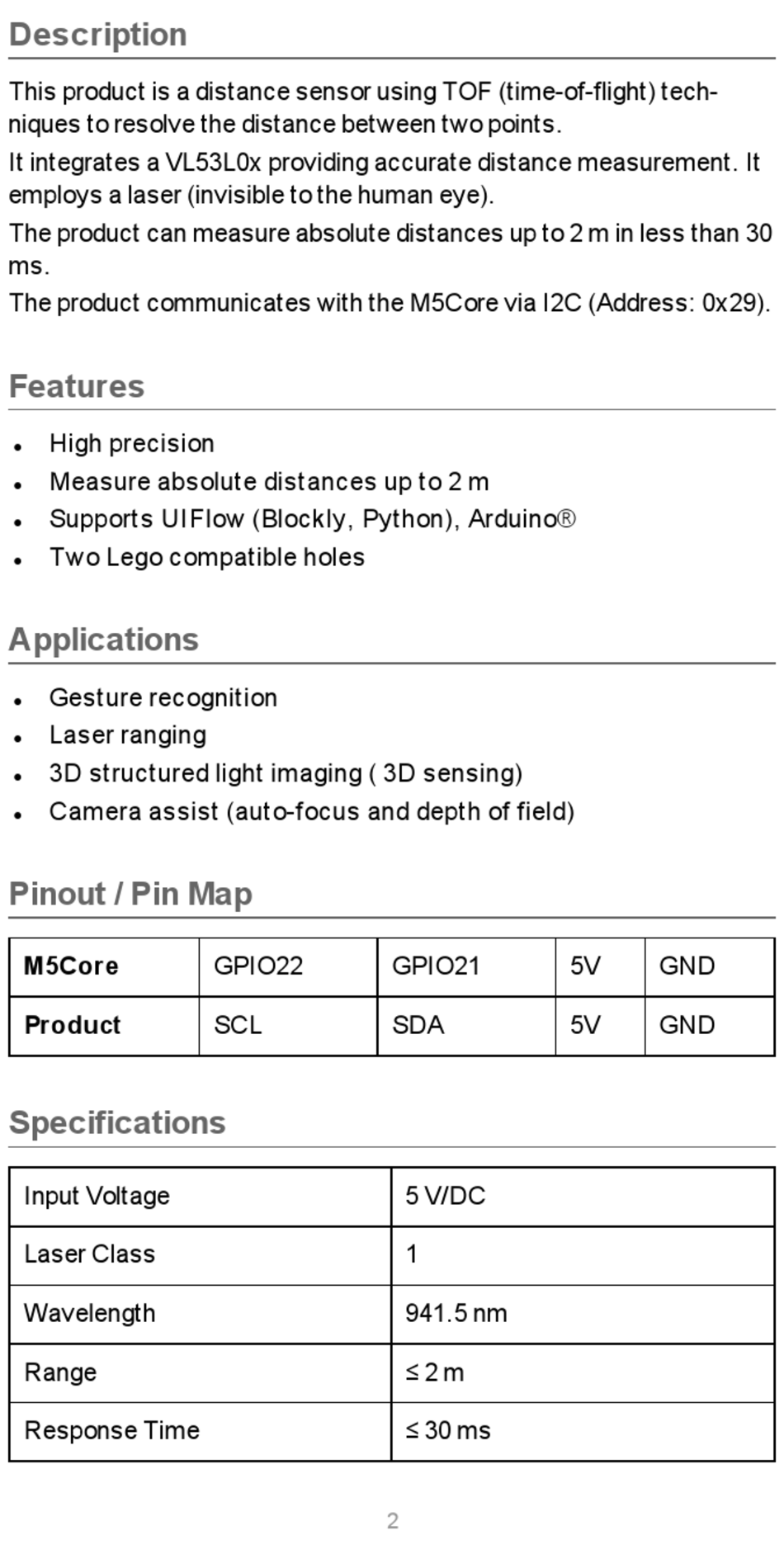

Description
This product is a distance sensor using TOF (time-of-flight) tech-
niques to resolve the distance between two points.
It integrates a VL53L0x providing accurate distance measurement. It
employs a laser (invisible to the human eye).
The product can measure absolute distances up to 2 m in less than 30
ms.
The product communicates with the M5Core via I2C (Address: 0x29).
Features
High precision
l
Measure absolute distances up to 2 m
l
Supports UIFlow (Blockly, Python), Arduino®
l
Two Lego compatible holes
l
Applications
Gesture recognition
l
Laser ranging
l
3D structured light imaging ( 3D sensing)
l
Camera assist (auto-focus and depth of field)
l
Pinout / Pin Map
M5Core
Product

Specifications

Input Voltage
Laser Class
Wavelength
Range
Response Time
GPIO22
SCL
GPIO21
SDA
5 V/DC
1
941.5 nm
≤ 2 m
≤ 30 ms
2
5V GND
5V GND
