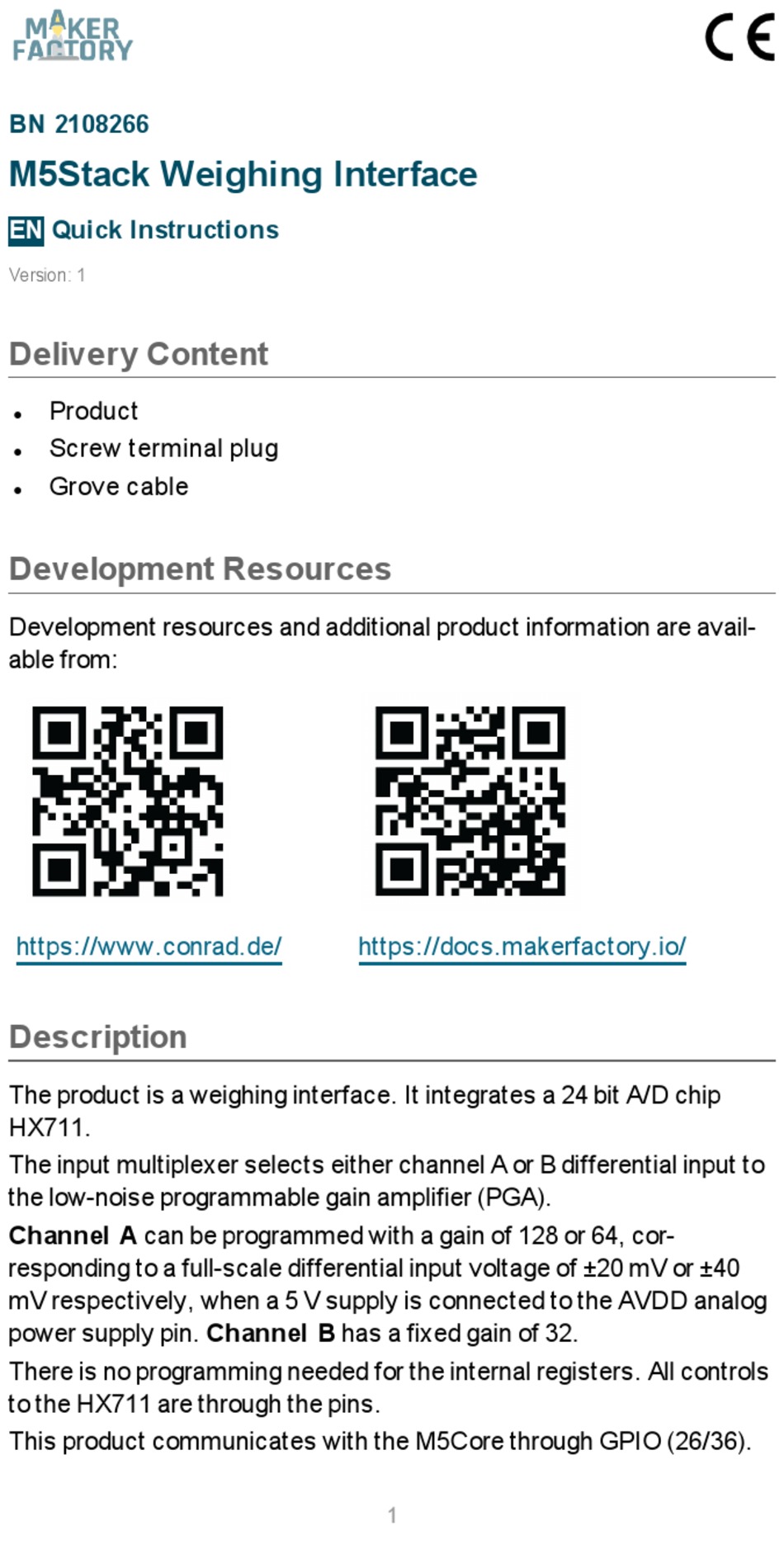

BN 2108266 M5Stack Weighing Interface Quick Instructions Version: 1 Delivery Content Product Screw terminal plug Grove cable Development Resources Development resources and additional product information are avail- able from: https://www.conrad.de/ https://docs.makerfactory.io/ Description The product is a weighing interface. It integrates a 24 bit A/D chip HX711.
Features Two selectable differential input channels On-chip active low noise PGA with selectable gain of 32, 64 and 128 On-chip power supply regulator for load-cell and ADC analog power supply On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset Simple digital control and serial interface: pin-driven controls, no programming needed...
Disposal Electronic devices are recyclable waste and must not be dis- posed of in the household waste. At the end of its service life, dispose of the product in accordance with applicable regulatory guidelines. You thus fulfill your statutory obligations and contribute to the pro- tection of the environment.
BN 2108266 M5Stack Wägeschnittstelle Kurzanleitung Version: 1 Lieferumfang Produkt Stecker mit Klemmleiste Grove Kabel Ressourcen für Entwickler Ressourcen für Entwickler und zusätzliche Informationen zum Pro- dukt sind verfügbar über: https://www.conrad.de/ https://docs.makerfactory.io/ Beschreibung Das Produkt ist eine Wägeschnittstelle. Es integriert einen 24-Bit A/D Chip HX711.
Das Produkt kommuniziert mit dem M5Core über GPIO (26/36). Produktmerkmale Zwei wählbare differentielle Eingangskanäle On-Chip aktiver rauscharmer PGA mit wählbarer Verstärkung von 32, 64 und 128 On-Chip Stromversorgungsregler für Wägezellen und ADC- Stromversorgung On-Chip-Oszillator, der keine externe Komponente mit optio- nalem externen Kristall benötigt On-Chip Power-On-Reset Einfache digitale Steuerung und serielle Schnittstelle: Steue-...
Seite 6
(B x T x H) Gewicht (ca.) Entsorgung Elektronische Geräte sind Wertstoffe und gehören nicht in den Hausmüll. Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß den geltenden gesetzlichen Bestimmungen. Sie erfüllen damit die gesetzlichen Verpflichtungen und leisten Ihren Beitrag zum Umweltschutz.
